Specifications

  • Number of doors: 2.00

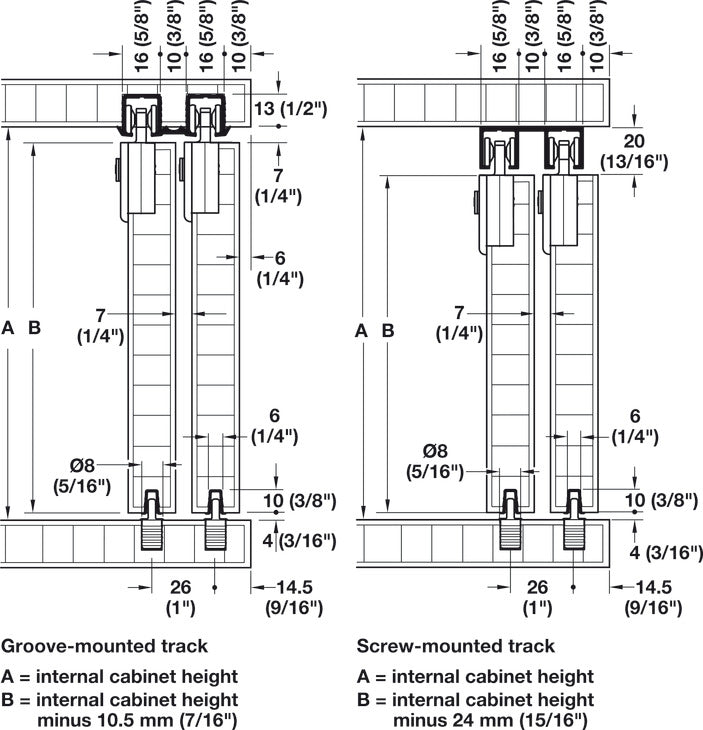

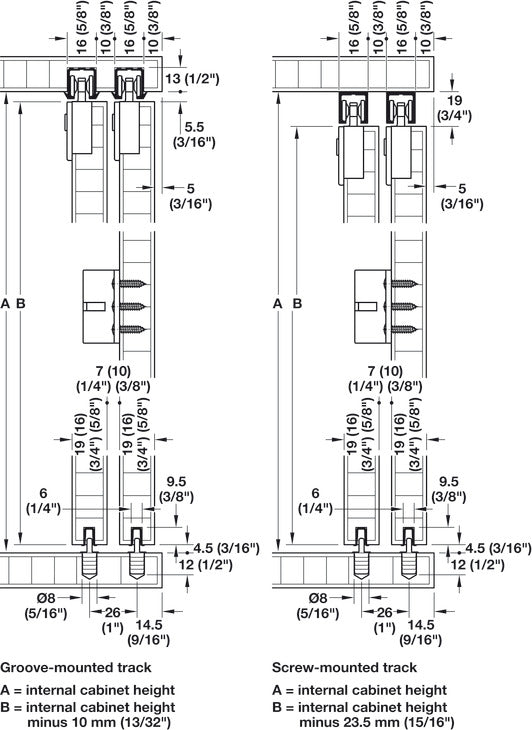

  • For door thickness: 16 – 19 mm
  • For door weight: 6 – 12 kg
  • Running position: Top
  • Number of rollers: 2.00
  • Height adjustment: -1.5 – 1.5 mm
  • Running gear guided by: Friction bearing
  • For door material: wood
  • For door thickness max.: 3/4"

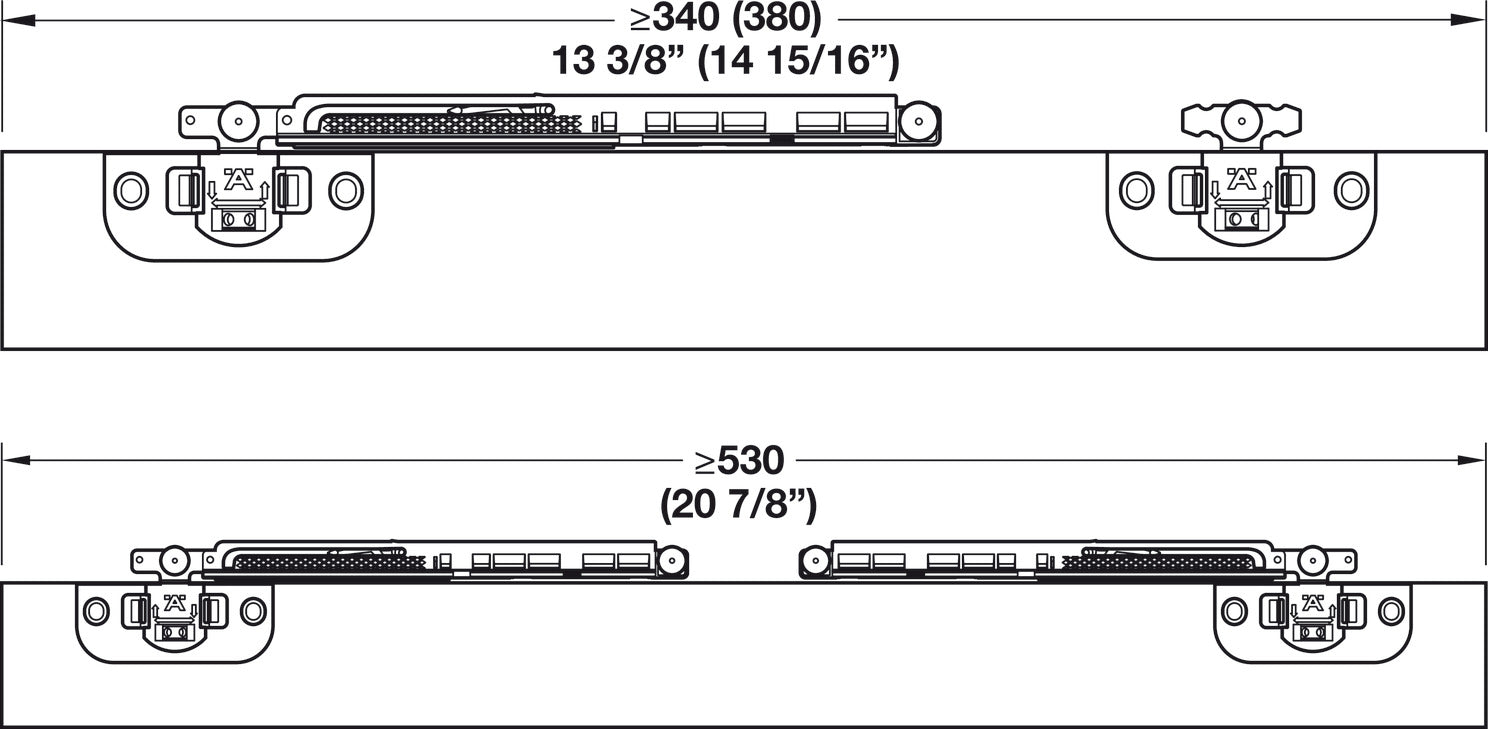

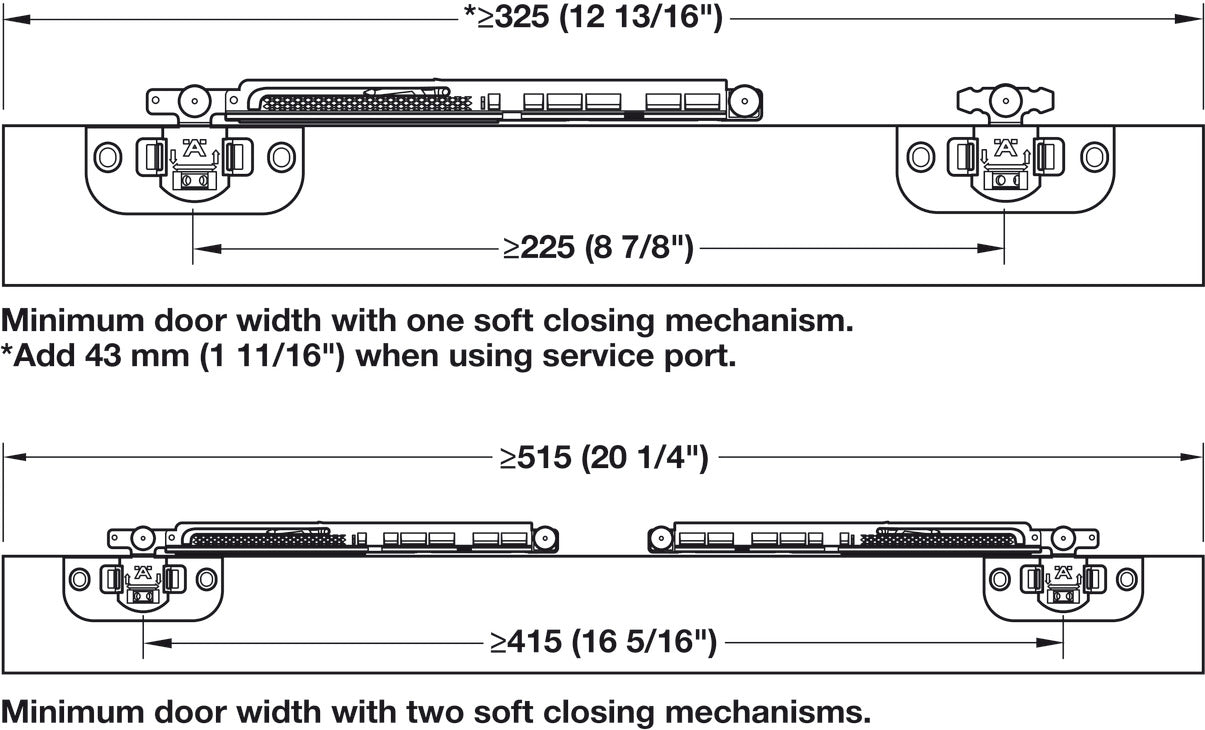

  • Door width max.: 3' 3 3/8"
  • For door thickness min.: 5/8"
  • Door weight max.: 26 lbs.
  • Length (inch): 2' 1 19/32"
  • Cabinet version: with small door wings
  • Area of application: For door weights: (26 lbs.) 12 kg
  • Note on door weight: We recommend that you adhere to the minimum door weight.
  • Door stopper: Top clip-in door stopper or soft and self closing mechanism, for sliding into running track
  • Material/finish: Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel
  • Adjustment facility: Height adjustment: -1.5 – 1.5 mm, ±1.5 mm on running gear using adjusting wheel
  • Door adjustment via: adjusting wheel
Fulfill

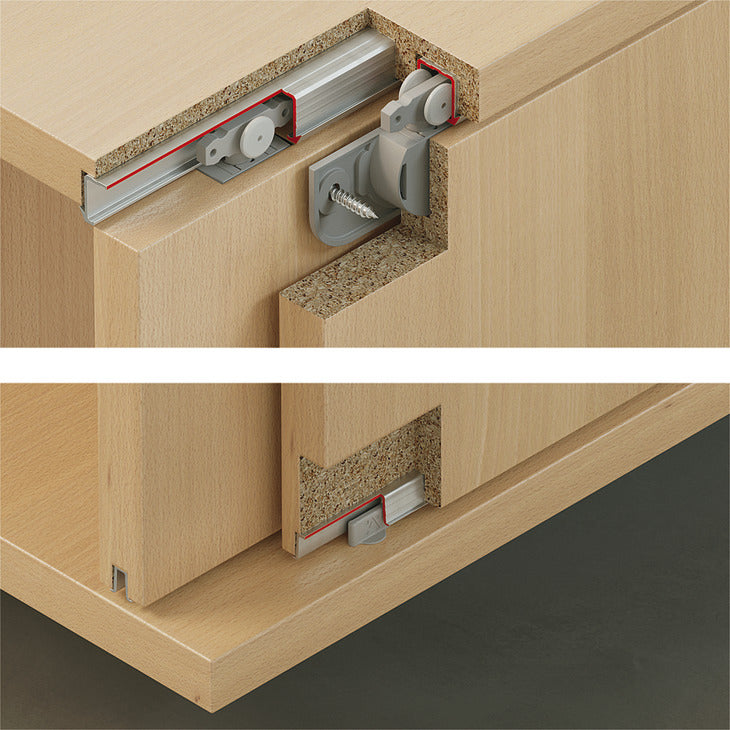

Hafele Slido F-Line21 12C Sliding Door Hardware, for door weights up to 12 kg, With soft closing mechanism on one side

Hafele Slido F-Line21 12C Sliding Door Hardware, for door weights up to 12 kg, With soft closing mechanism on one side

Add to wishlist Add to wishlist

SKU: HA-402.33.014

$107.77
$134.71 $107.77
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 7-10 business days . (Minimum order quantity: 1)

Specifications

  • Number of doors: 2.00
  • For door thickness: 16 – 19 mm
  • For door weight: 6 – 12 kg
  • Running position: Top
  • Number of rollers: 2.00
  • Height adjustment: -1.5 – 1.5 mm
  • Running gear guided by: Friction bearing
  • For door material: wood
  • For door thickness max.: 3/4"
  • Door width max.: 3' 3 3/8"
  • For door thickness min.: 5/8"
  • Door weight max.: 26 lbs.
  • Length (inch): 2' 1 19/32"
  • Cabinet version: with small door wings
  • Area of application: For door weights: (26 lbs.) 12 kg
  • Note on door weight: We recommend that you adhere to the minimum door weight.
  • Door stopper: Top clip-in door stopper or soft and self closing mechanism, for sliding into running track
  • Material/finish: Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel
  • Adjustment facility: Height adjustment: -1.5 – 1.5 mm, ±1.5 mm on running gear using adjusting wheel
  • Door adjustment via: adjusting wheel
View full details
