Specifications

  • For door thickness: 6 mm
  • For door weight: ≤20 kg
  • Note on door thickness: (1/4 - 5/16")

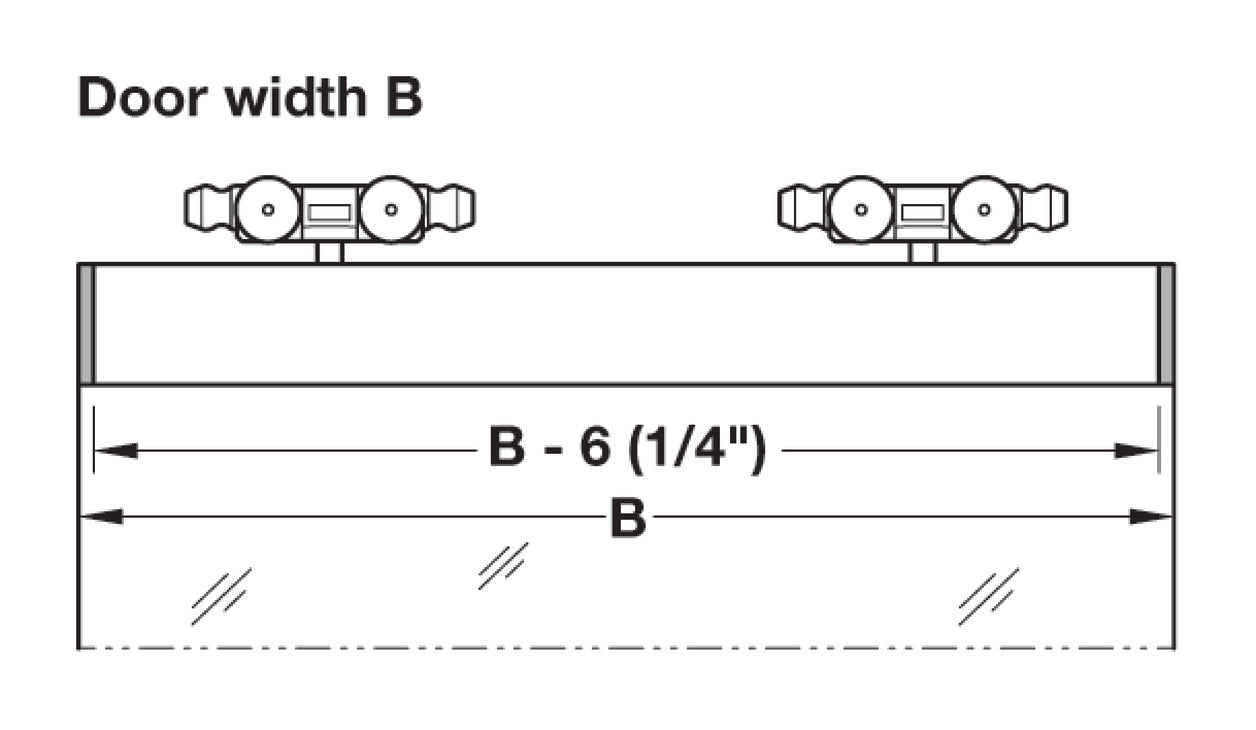

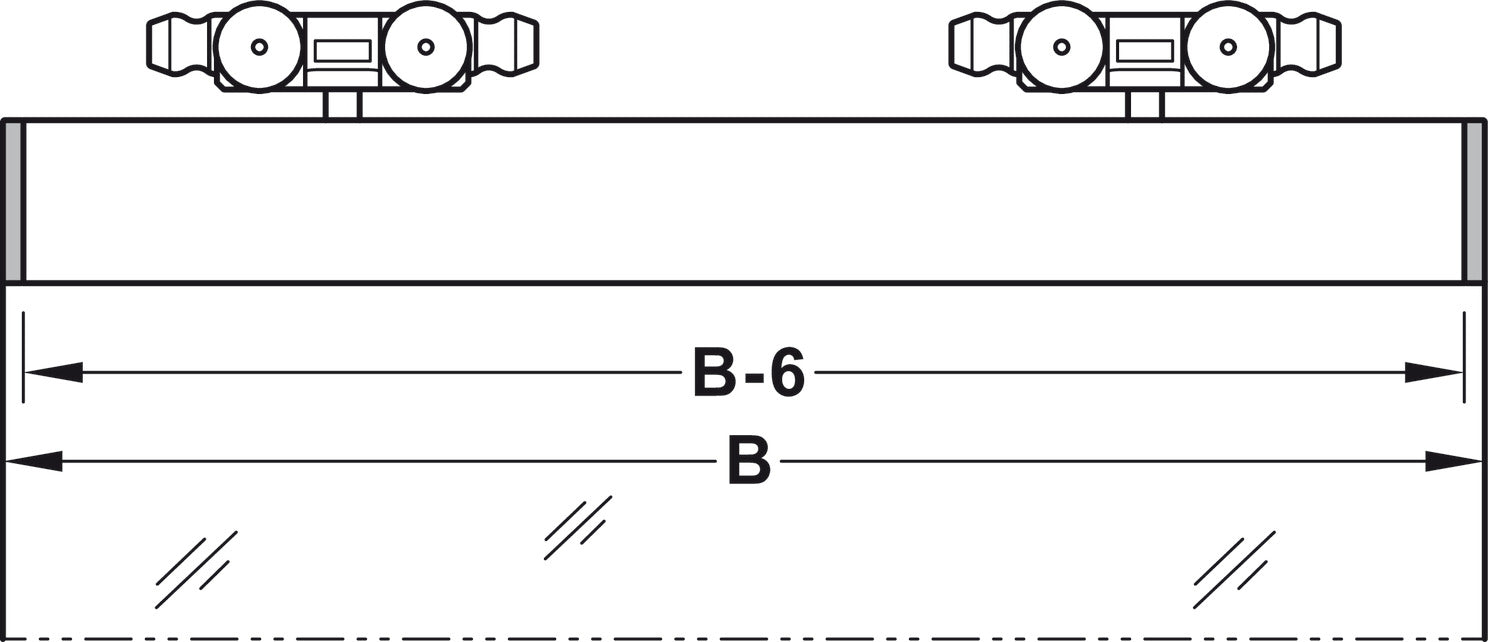

  • For door width (inches): > 350 mm (13 3/4") with soft closing mechanism; ≥ 530 mm (20 27/32") with soft closing and opening mechanism
  • Area of application: For 1 door

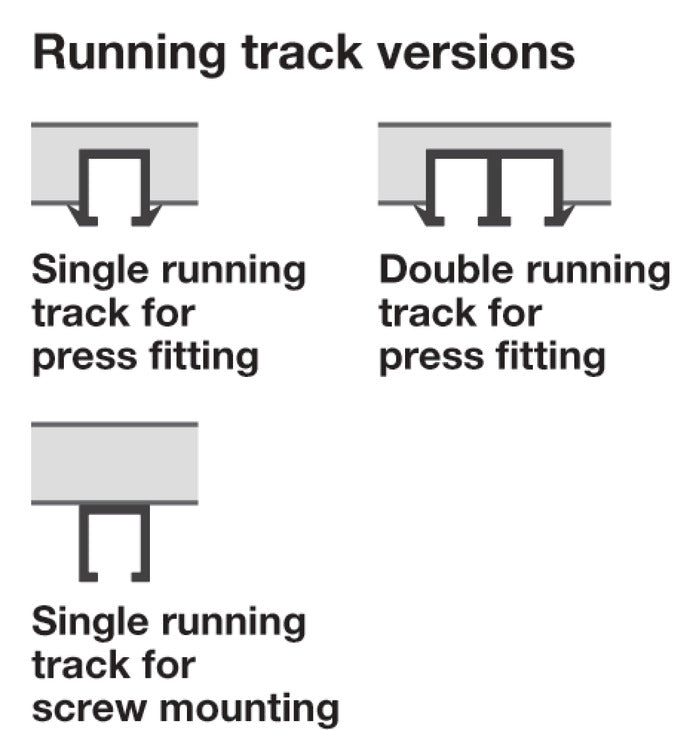

  • Door stopper: Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track
  • Adjustment facility: ±2 mm (3/32") on running gear using hexagonal nut

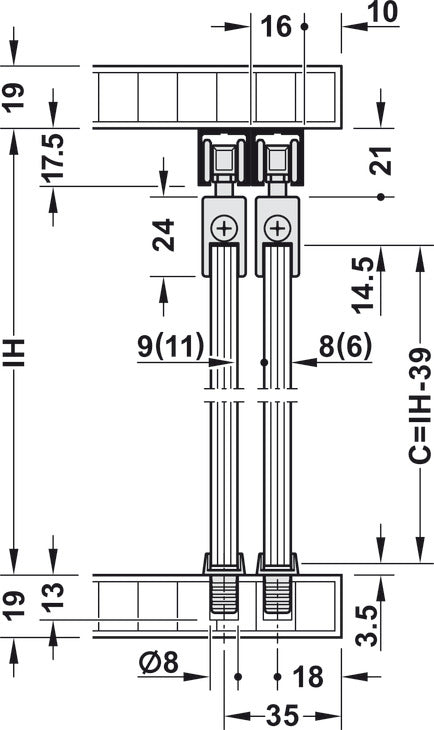

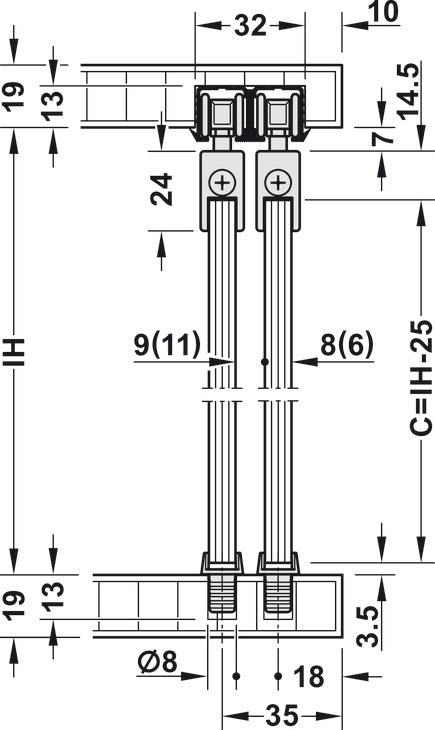

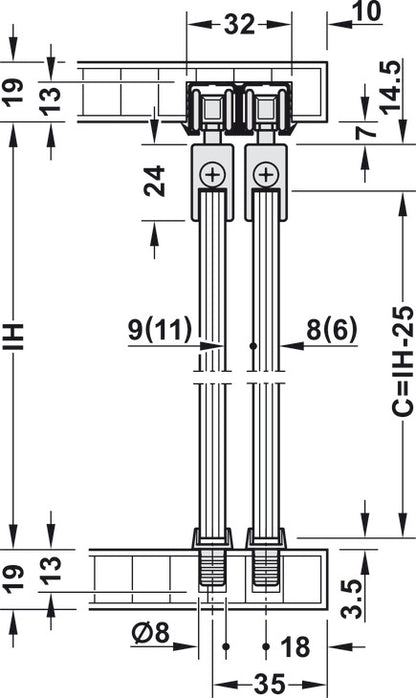

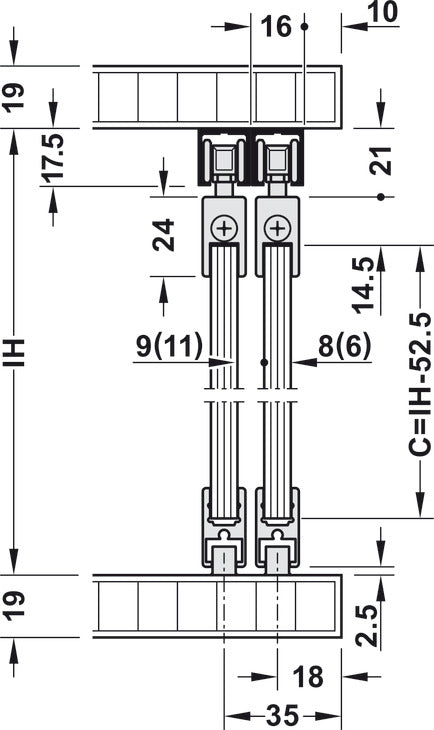

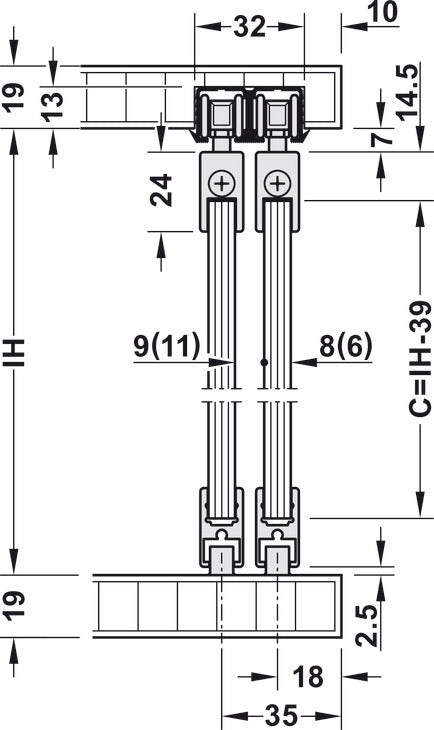

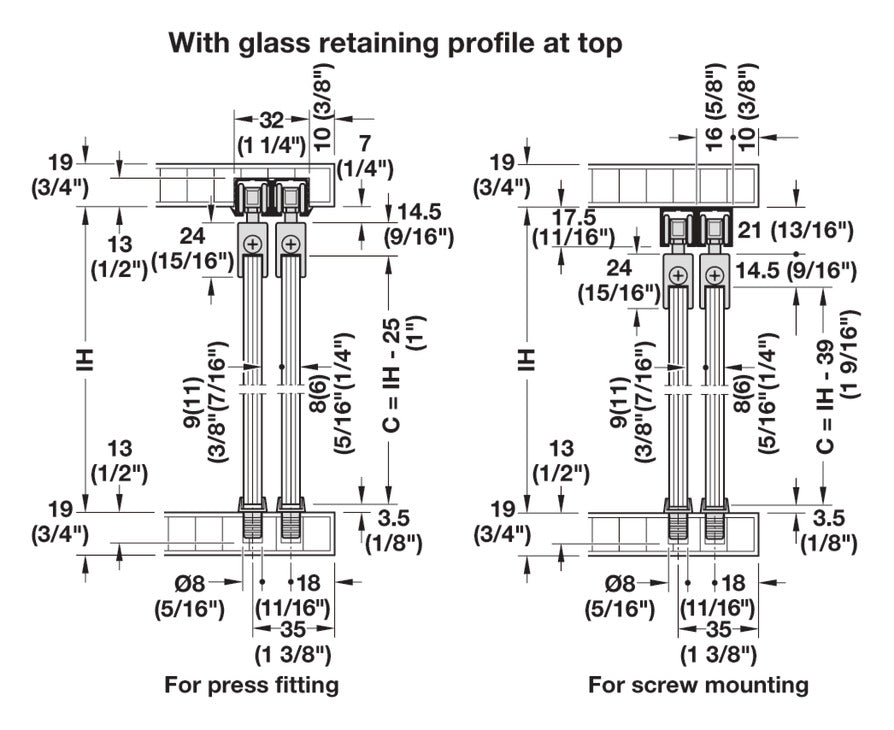

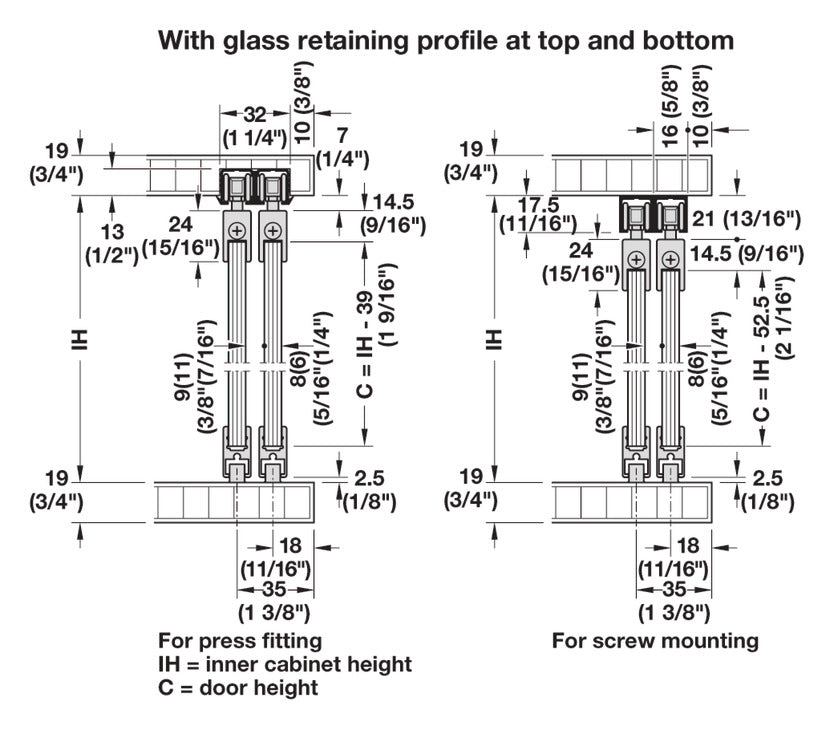

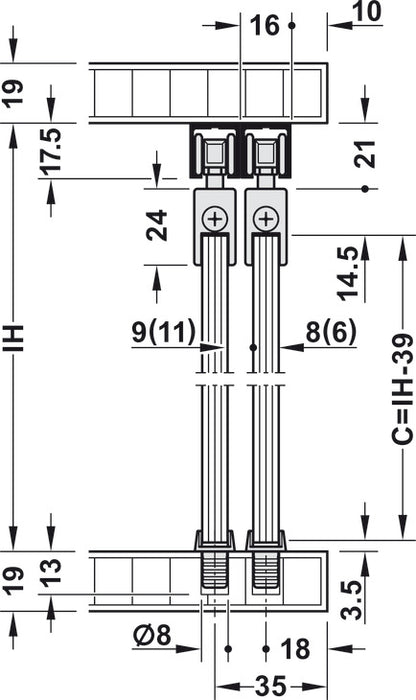

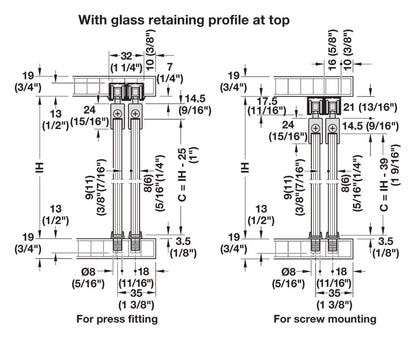

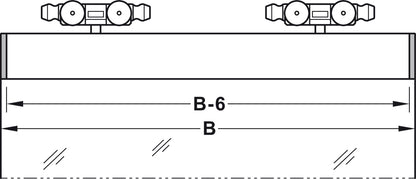

  • Installation reference: Pitch length of running gears must be min. 245 mm (9 11/16") with soft closing mechanism on one side, min. 425 mm (16 3/4") with soft closing mechanism on both sides.
Fulfill

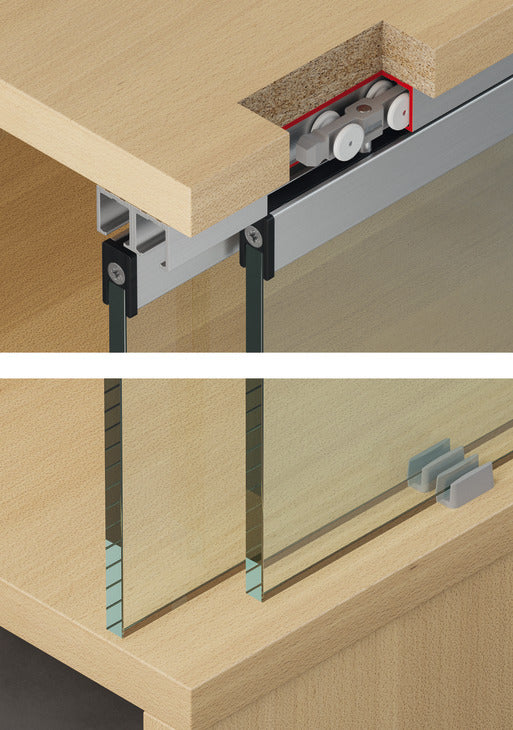

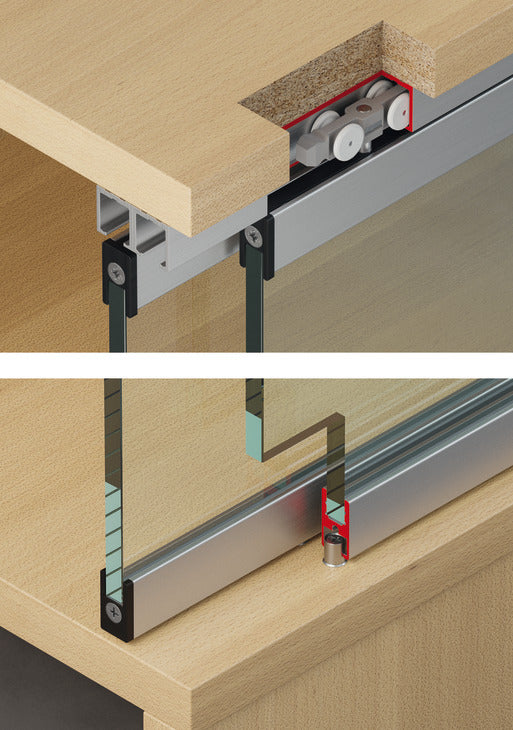

Hafele Slido F-Line21 20D Glass Door Hardware, One Door Set, With Soft Closing Mechanism Both Sides

Hafele Slido F-Line21 20D Glass Door Hardware, One Door Set, With Soft Closing Mechanism Both Sides

Add to wishlist Add to wishlist

SKU: HA-402.33.033

$128.09
$160.11 $128.09
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 7-10 business days . (Minimum order quantity: 1)

Specifications

  • For door thickness: 6 mm
  • For door weight: ≤20 kg
  • Note on door thickness: (1/4 - 5/16")
  • For door width (inches): > 350 mm (13 3/4") with soft closing mechanism; ≥ 530 mm (20 27/32") with soft closing and opening mechanism
  • Area of application: For 1 door
  • Door stopper: Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track
  • Adjustment facility: ±2 mm (3/32") on running gear using hexagonal nut
  • Installation reference: Pitch length of running gears must be min. 245 mm (9 11/16") with soft closing mechanism on one side, min. 425 mm (16 3/4") with soft closing mechanism on both sides.
View full details
