Specifications
Specifications
- For door thickness: 6 mm
- For door weight: ≤20 kg
- Note on door thickness: (1/4 - 5/16")

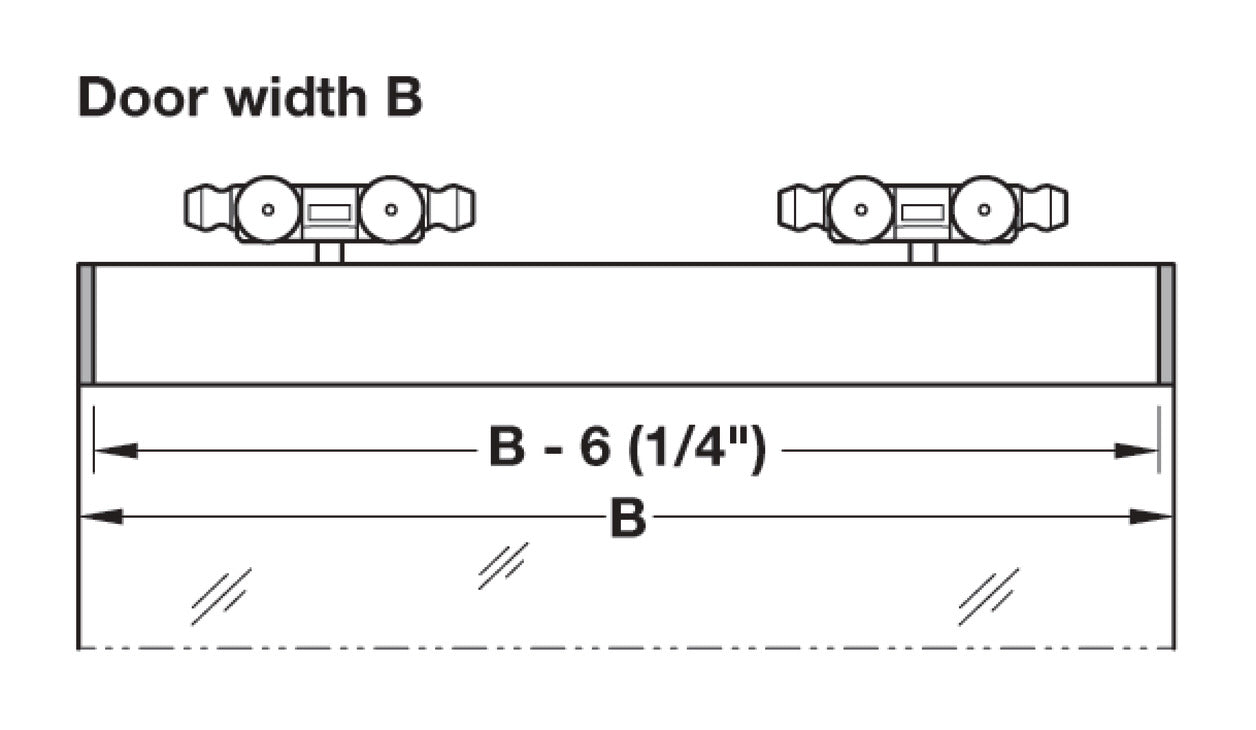

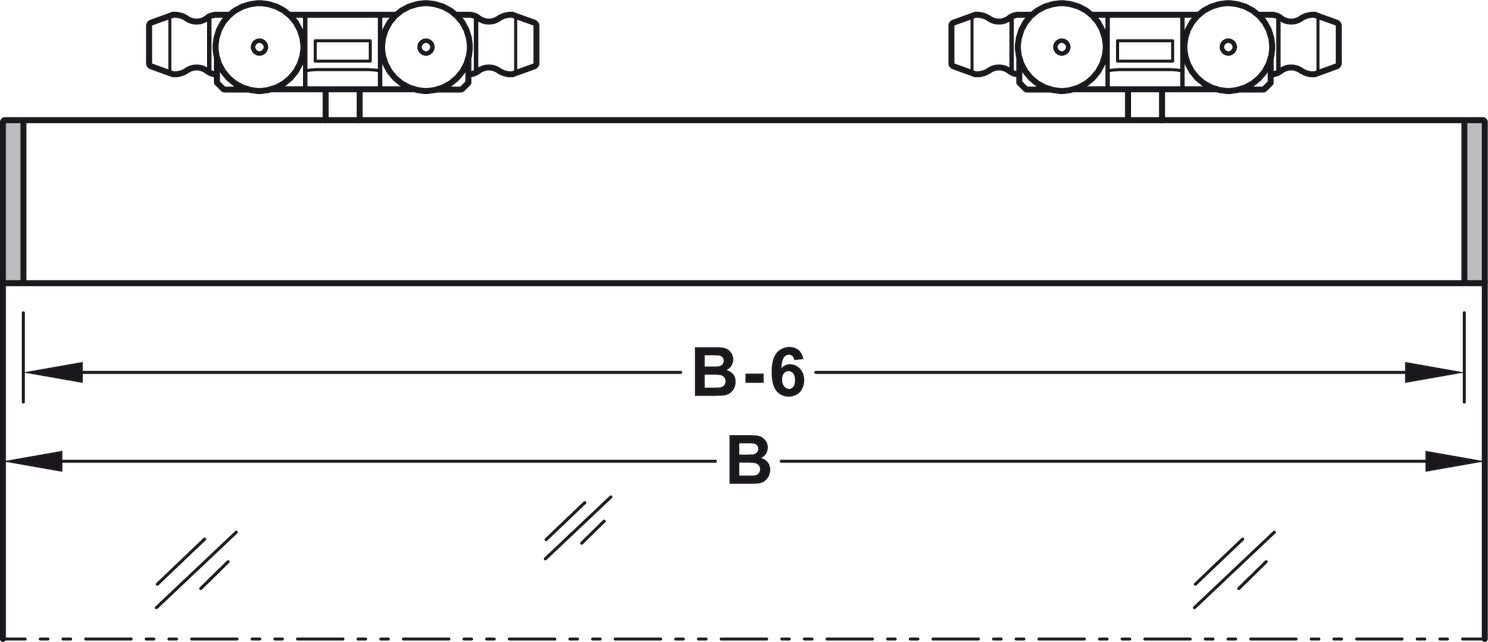

- For door width (inches): > 350 mm (13 3/4") with soft closing mechanism; ≥ 530 mm (20 27/32") with soft closing and opening mechanism

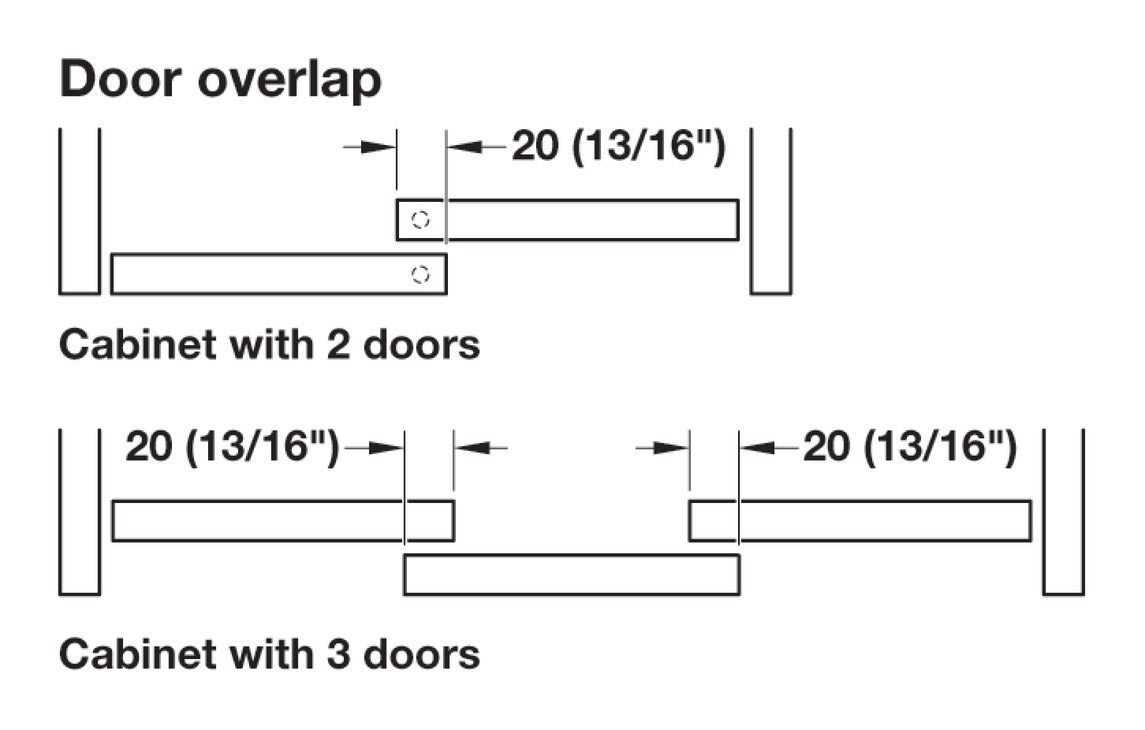

- Area of application: For 2 doors

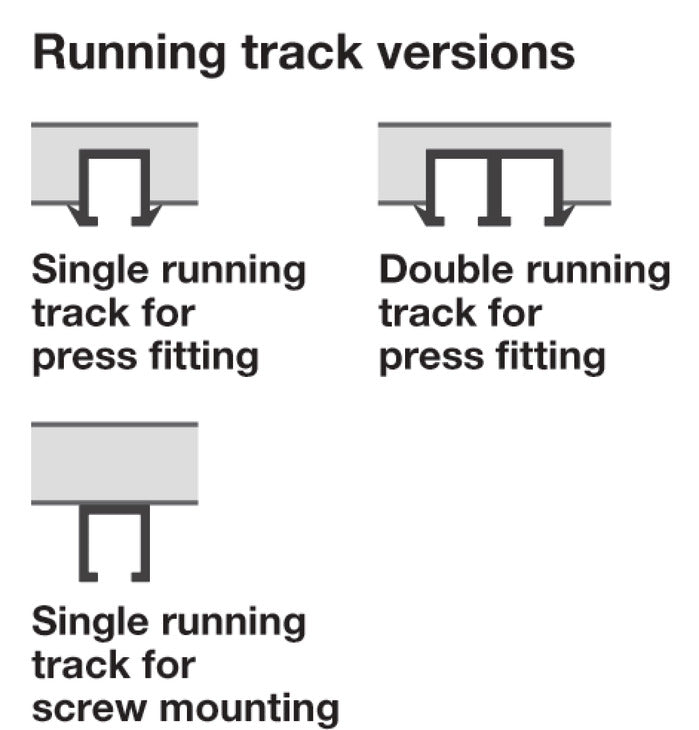

- Door stopper: Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track
- Adjustment facility: ±2 mm (3/32") on running gear using hexagonal nut

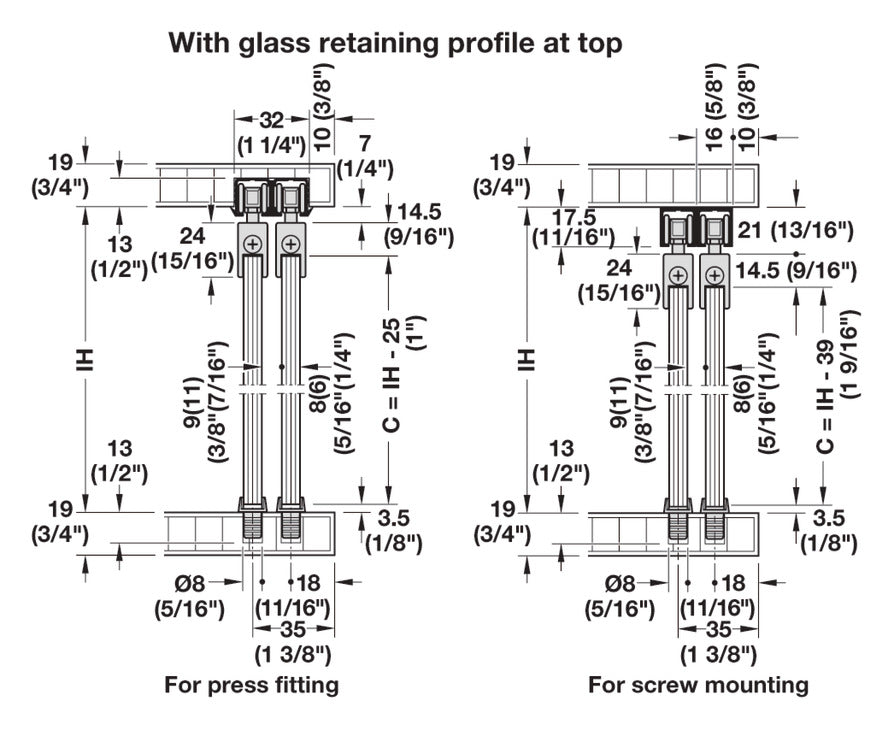

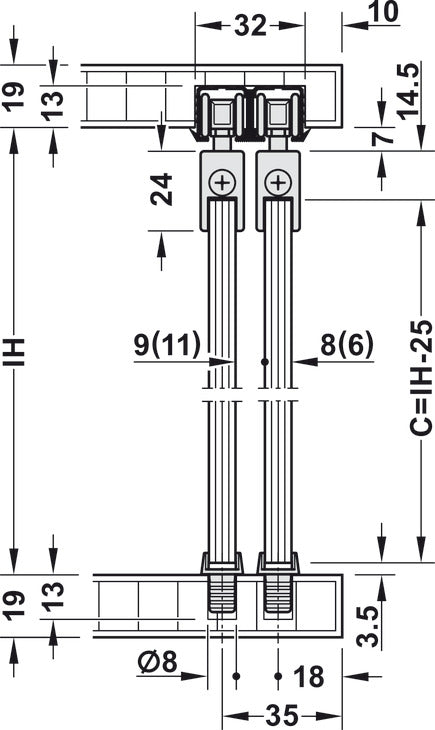

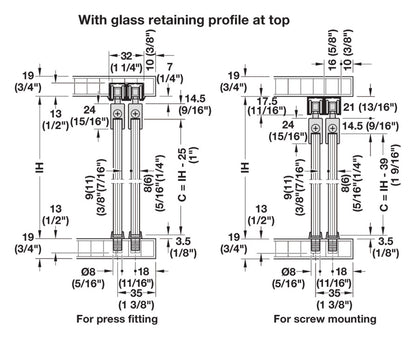

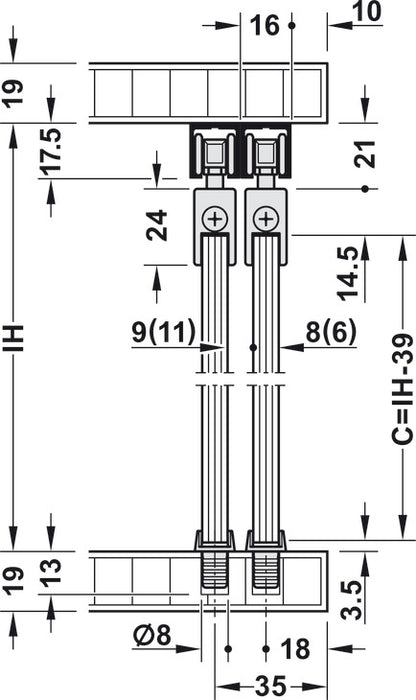

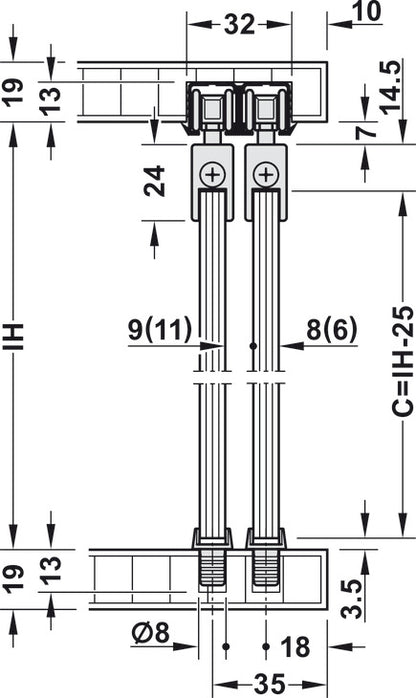

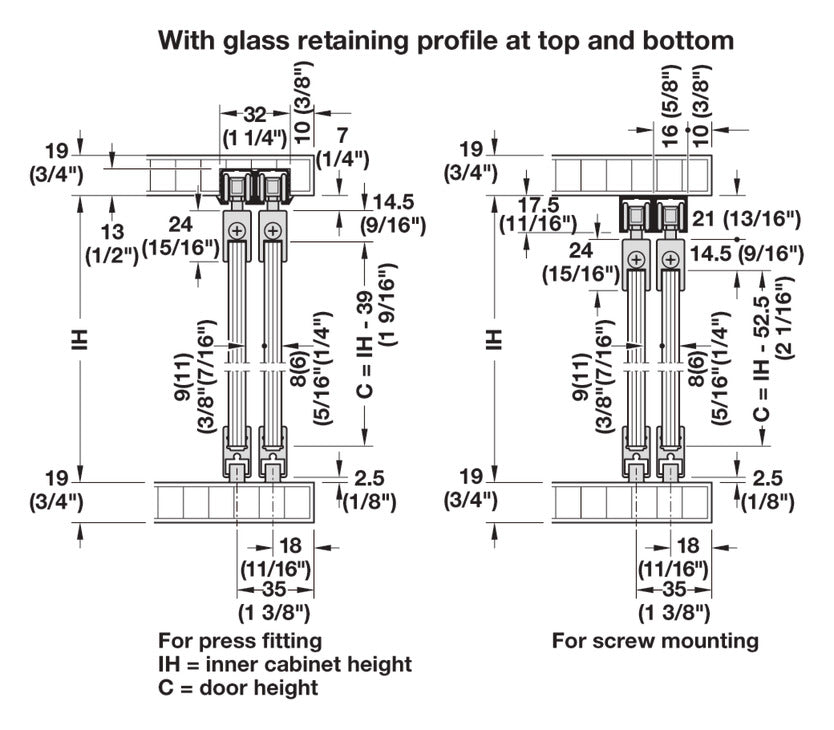

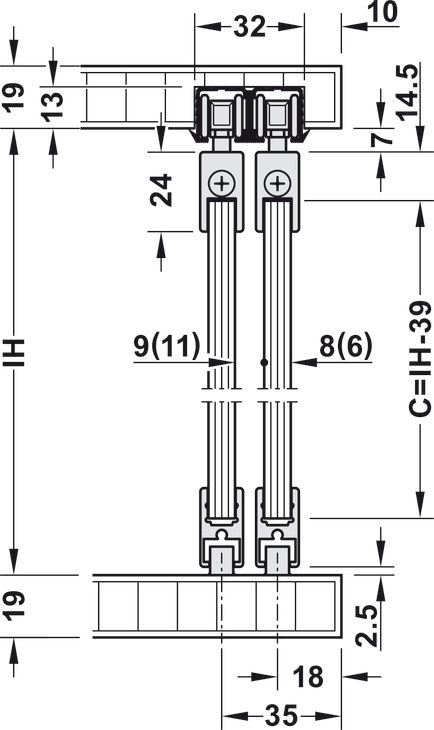

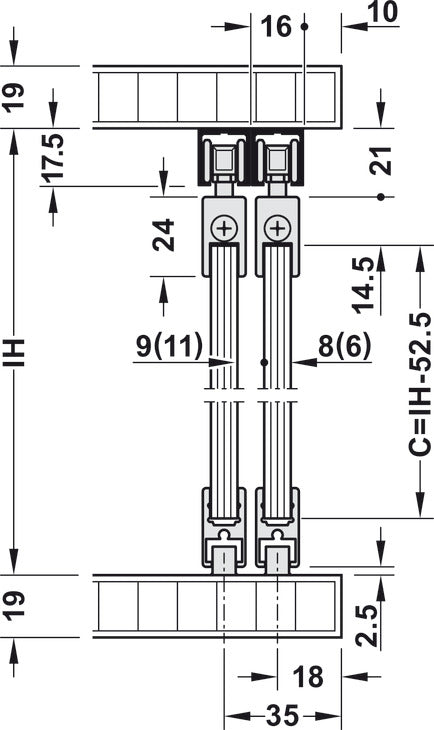

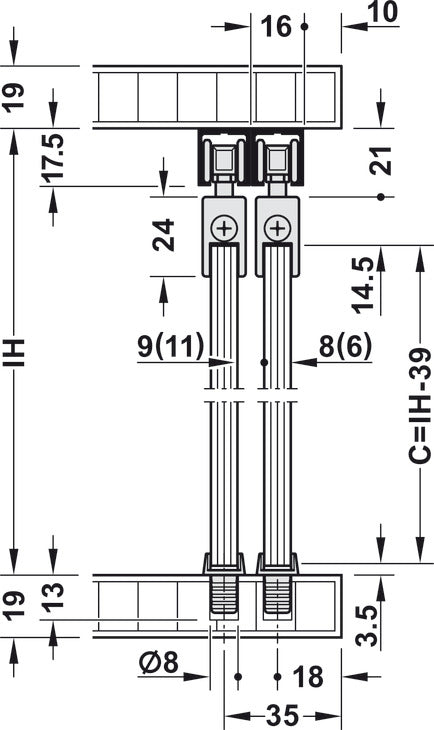

- Installation reference: Pitch length of running gears must be min. 245 mm (9 11/16") with soft closing mechanism on one side, min. 425 mm (16 3/4") with soft closing mechanism on both sides.
What's Included
What's Included
- 4 running gears (2 with soft closing mechanism)
- 4 door stoppers (2 with clip-in door stopper, 2 for soft closing mechanism)

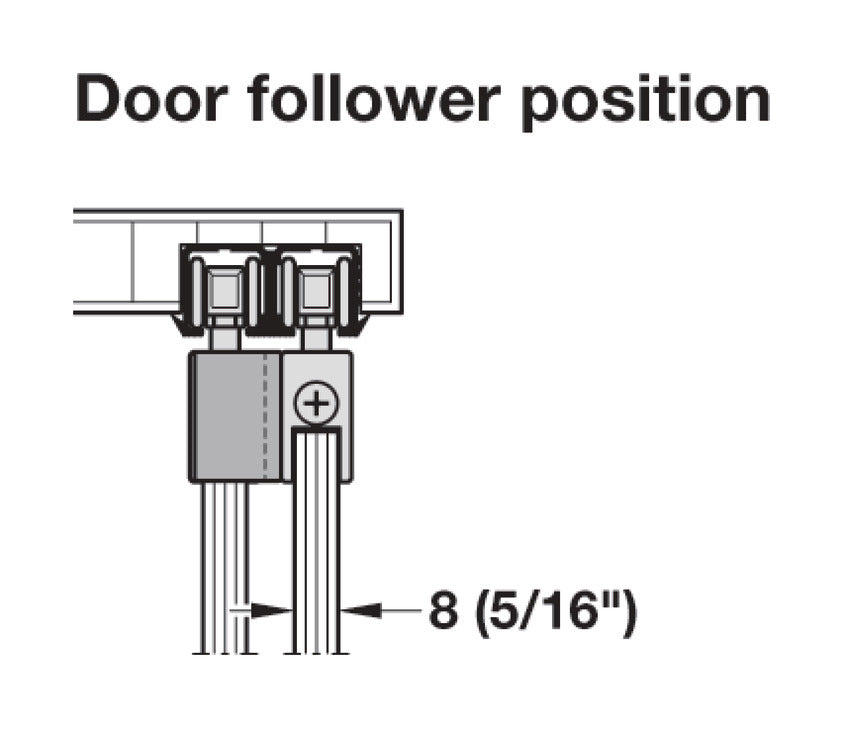

- 1 door follower
- 2 sets of guides, cover caps and mounting aid
Fulfill
SKU: SKU: HA-402.33.035
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within
7-10 business days
.
(Minimum order quantity: 1)
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
