Description
Description

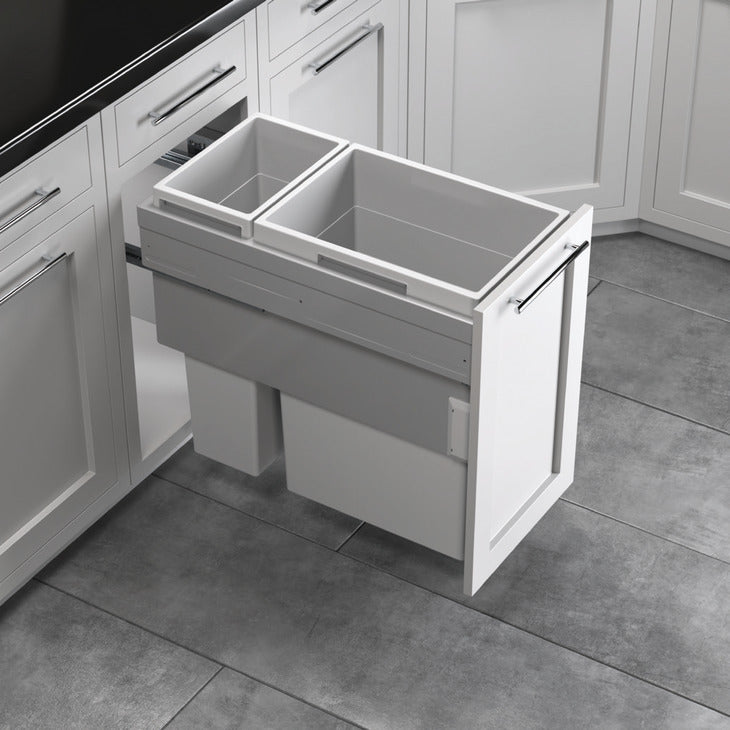

With synchronized soft close progressive slides
Cycle test: 100,000
Specifications
Specifications
- For cabinet width: 380 mm
- For internal cabinet width: 343-357 mm
- Capacity: 1 x 39 quarts/1 x 15.9 quarts
- Bin Capacity: 37 l / 15 l
- Number of bins: 2
- Color/finish: Lid & Frame: Silver powder-coatedBins: Light gray
- For cabinet width: Internal: 13 1/2" - 14 1/16"
- For cabinet depth: Required: 575 mm (22 5/8")
- Material/finish: Lid & Frame: Steel Bins: Plastic
- Area of application: For face frame cabinets
- Load bearing capacity: 50.00 kg
- Load bearing capacity: 110 lbs
- Mounting: Side mounting

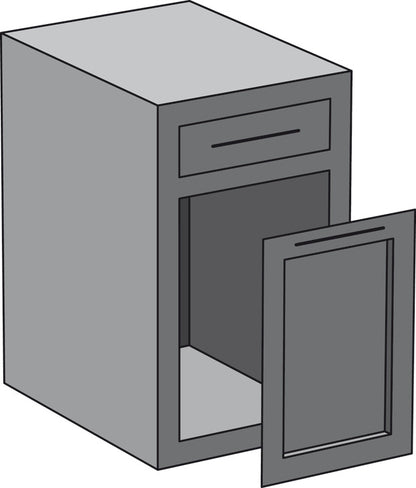

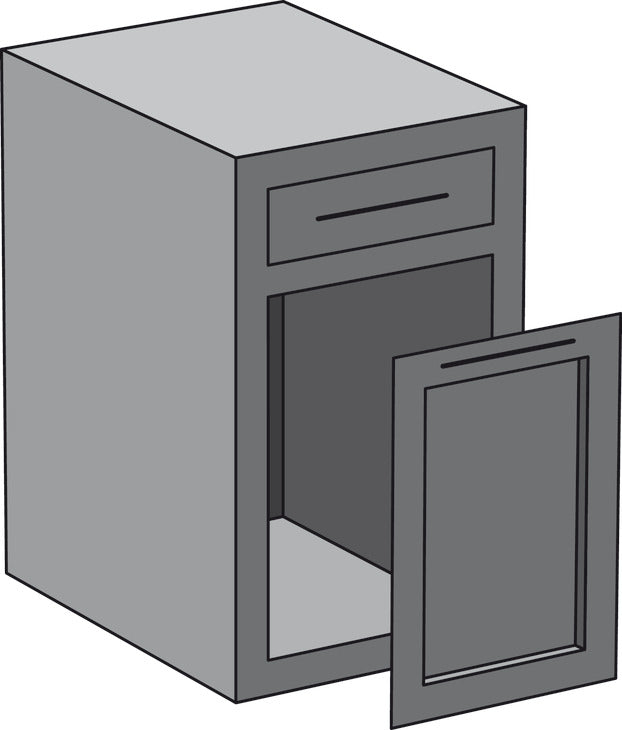

- Installation: Fits below a drawer
- Mounting location: Installation behind fronts, For screw fixing to side panel and cabinet door
- Installation reference: D x H: 569 x 521 mm (22" x 20 1/2")
- For internal cabinet width min.: 343.00 mm
- For internal cabinet width max.: 357.00 mm
- Installation width min. (inches): 15"
What's Included
What's Included
Supplied with lid
Fulfill
SKU: SKU: HA-502.77.521
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within
7-10 business days
.
(Minimum order quantity: 1)
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
Full policy →
