Specifications

  • Opening Angle: 105°
  • Closing Mechanism: with spring
  • Plate arm design and it's assembly: Wrap around, no pre-hanging
  • Hinge Cup Material: Steel hinge cup, Nickel-plated
  • Hinge cup assembly: Press-in
  • Overlay: 3/4"
  • Height Adjustment: +/-3.2 mm, with elongated hole
  • Reveal: 4.8 mm
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 38N358B.12
  • Weight: 0.110 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Hinge type: 1-piece
  • Closing type: Soft-Closing
  • Boring Pattern: 45 mm
  • Cup Depth: 11 mm
  • Cup Diameter: 35 mm
Fulfill

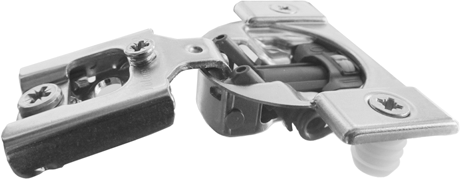

Blum 105 Degree 3/4" Overlay Soft-Close Compact Blumotion 38N Dowel Face Frame Hinge

Blum 105 Degree 3/4" Overlay Soft-Close Compact Blumotion 38N Dowel Face Frame Hinge

Add to wishlist Add to wishlist

SKU: BL-38N358B12

$4.32
$4.32 $4.32
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within To be determined (if inventory available, will leave immediately) . (Minimum order quantity: 1)
Documents
COMPACT BLUMOTION - Angle Restriction Clip COMPACT BLUMOTION: BLUMOTION deactivation COMPACT series - Hinge and mounting plate adjustment Hinge Quick Reference

Specifications

  • Opening Angle: 105°
  • Closing Mechanism: with spring
  • Plate arm design and it's assembly: Wrap around, no pre-hanging
  • Hinge Cup Material: Steel hinge cup, Nickel-plated
  • Hinge cup assembly: Press-in
  • Overlay: 3/4"
  • Height Adjustment: +/-3.2 mm, with elongated hole
  • Reveal: 4.8 mm
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 38N358B.12
  • Weight: 0.110 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Hinge type: 1-piece
  • Closing type: Soft-Closing
  • Boring Pattern: 45 mm
  • Cup Depth: 11 mm
  • Cup Diameter: 35 mm
View full details
