Specifications

  • Opening Angle: 107°
  • Closing Mechanism: with spring
  • Plate arm design and it's assembly: Wrap around, no pre-hanging
  • Hinge Cup Material: Steel hinge cup, Nickel-plated
  • Hinge cup assembly: Press-in
  • Overlay: 3/4"
  • Height Adjustment: +/-3.2 mm, with elongated hole
  • Reveal: 4.8 mm
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 38N358C.12
  • Weight: 0.120 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Hinge type: 1-piece
  • Closing type: Soft-Closing
  • Boring Pattern: 45 mm
  • Cup Depth: 11 mm
  • Cup Diameter: 35 mm
In stock, 239 units

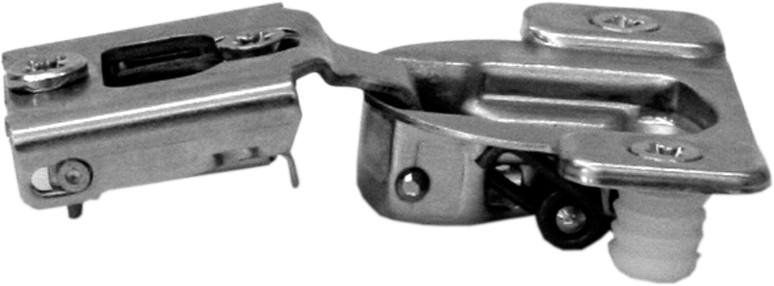

Blum 107 Degree 3/4" Overlay Self-Close Compact 38N Dowel Face Frame Hinge

Blum 107 Degree 3/4" Overlay Self-Close Compact 38N Dowel Face Frame Hinge

Add to wishlist Add to wishlist

SKU: BL-38N358C12

$3.20
$3.20 $3.20
In Stock
Active stock item in main warehouse.
Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within To be determined (if inventory available, will leave immediately) . (Minimum order quantity: 1)
Documents
COMPACT series - Hinge and mounting plate adjustments Hinge Quick Reference

Specifications

  • Opening Angle: 107°
  • Closing Mechanism: with spring
  • Plate arm design and it's assembly: Wrap around, no pre-hanging
  • Hinge Cup Material: Steel hinge cup, Nickel-plated
  • Hinge cup assembly: Press-in
  • Overlay: 3/4"
  • Height Adjustment: +/-3.2 mm, with elongated hole
  • Reveal: 4.8 mm
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 38N358C.12
  • Weight: 0.120 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Hinge type: 1-piece
  • Closing type: Soft-Closing
  • Boring Pattern: 45 mm
  • Cup Depth: 11 mm
  • Cup Diameter: 35 mm
