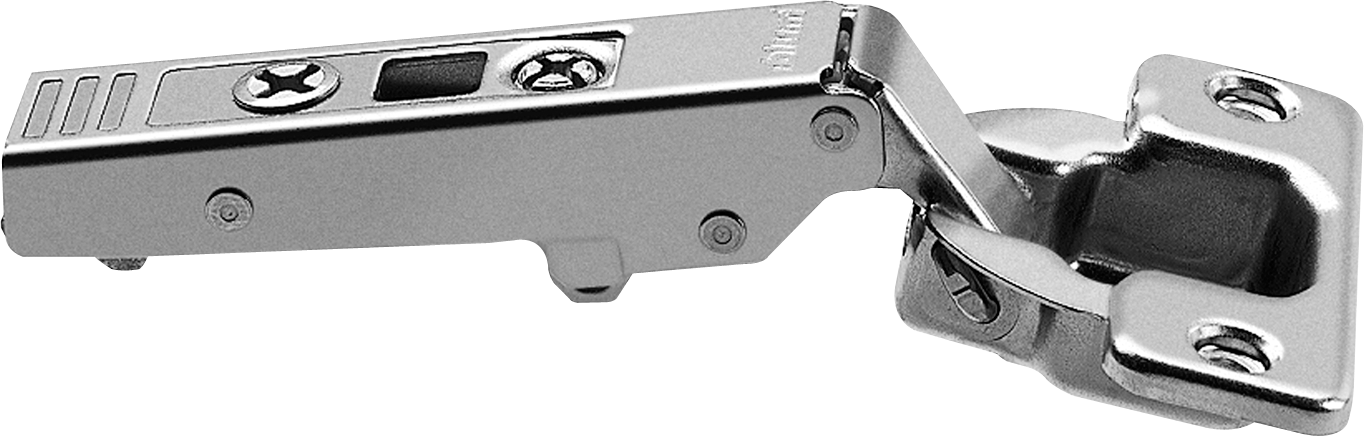

Blum 107 Degree Full Overlay Self-Close Clip Top Screw-On European Hinge
Add to wishlist (0)

Blum 107 Degree Full Overlay Self-Close Clip Top Screw-On European Hinge

SKU: BL-75T1550
In stock, 87 units
$2.26
10 items are available for order
Add to cart
Active stock item in main warehouse.
Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within To be determined (if inventory available, will leave immediately) . (Minimum order quantity: 1)

Payment & Security. Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Specification

  • Opening Angle: 94°
  • Cranking: Corner Merge Application
  • Hinge Cup Assemby: Screw-on
  • Hinge Cup Material: Nylon Hinge Cup
  • Closing Mechanism: With Spring
  • Side Adjustment: +0.5/-3.5 mm
  • Depth Adjustment: +/-2 mm, convenient with spiral screw
  • Manufacturer: BLUM, INC.
  • Manufacturer's Part: 75T4100
  • Weight: 0.130 lbs
  • Sold in Multiples of: 1
  • Priced by: Each
  • Cabinet Type: Face Frame, Frameless
  • Overlay: Full Overlay
  • Closing type: Self-Closing (Snap-Closing)
  • Boring Pattern: 45 mm
  • Cup Diameter: 26 mm
  • Cup Depth: 13 mm
  • Max Overlay: 17 mm
  • Max Door Thickness: 4.5 mm - 7 mm Glass
Show more Show less
