Simply Brilliant

The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel edge guide can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The light ring provides shadow-free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.

Functions

• Ergonomic: Thanks to the compact design and low weight.
• Unobstructed view: Clearly visible routing area.
• Well lit: Thanks to the rechargeable LED work light in the base.
• Quick: Quick and easy bit changes.
• Precise: Simple routing depth adjustment, accurate to 1/256" (1/10 mm).
• Steady: Torsionally rigid router base due to guide columns on both sides.
• Parallel edge guide: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool-free adjustable fence pieces.
• Smart: Designed with restart protection.
• Material specific: MMC electronics for optimal work and temperature monitoring.
• Integrated: Chip extraction system directly integrated into the router base for D 27 and D 36 hose diameters.

Main Applications

• Rounding, chamfering, rabbetting and profiling edges
• Recessing metal fittings
• Grooving rear panels, recessing dovetail or routing plasterboard with the guide system (edging technology)
• Producing rows of holes in cabinets using the hole series system LR 32

Detailed Features

Guided Routing & Maximum Precision

The double-sized column clamp makes the router extremely torsionally rigid and the routing depth can be set to an accuracy of 1/256" (1/10 mm) in a matter of seconds. The parallel edge guide is robust and thanks to the fine adjustment, can be precisely adjusted all without any additional tools. Everything you need for a precise routing result.

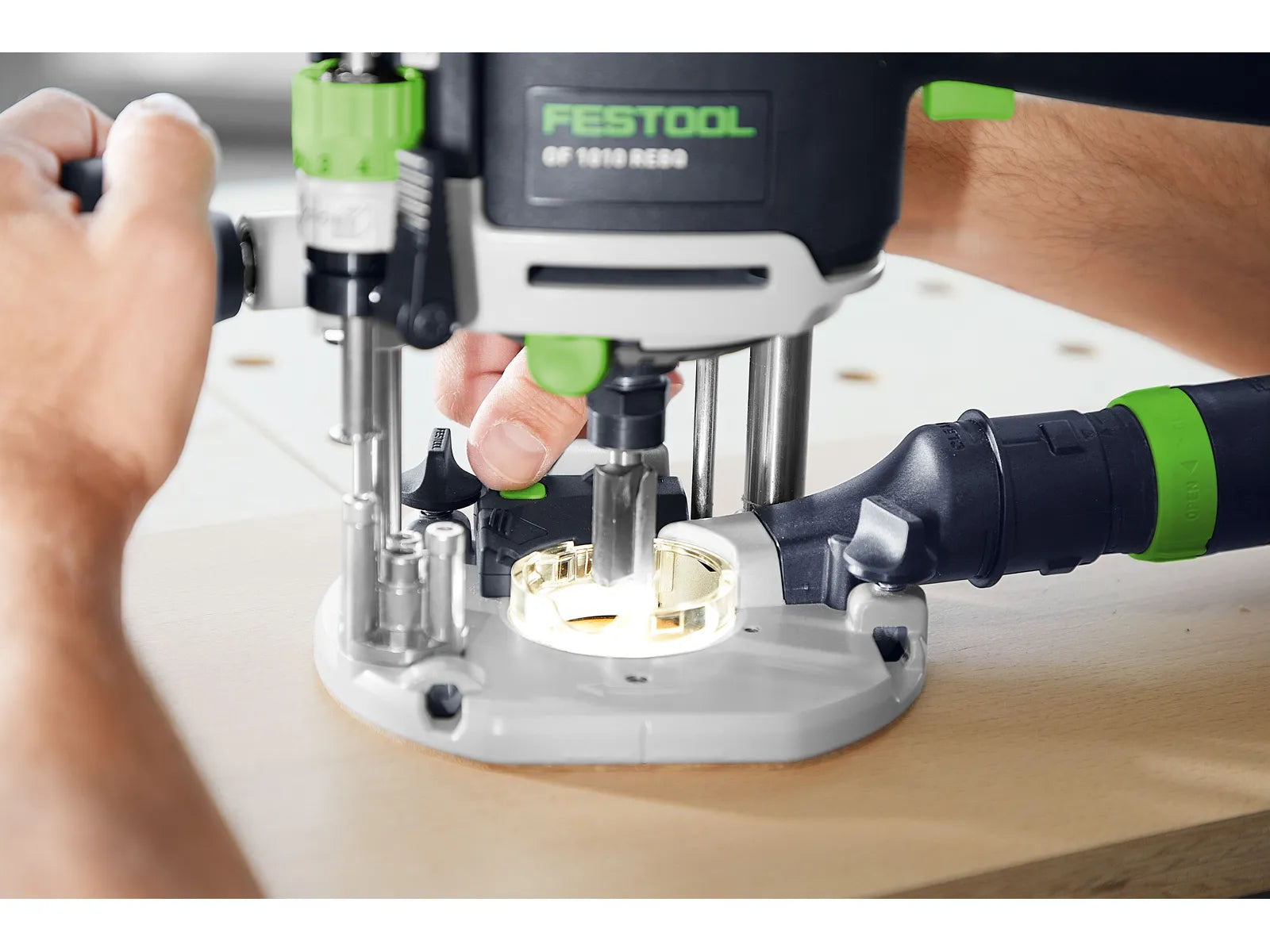

Best View and an LED Light

Thanks to a clearly visible working area, you have a clear view of the router and scribe mark. The LED light ring provides shadow-free lighting from all sides in two brightness levels. It is directly integrated into the base plate and is therefore close to the workpiece. You can therefore always see exactly where the bit is cutting.

Versatile Accessories with Even More Uses

Its wide variety of accessories, such as routers, routing templates, guide rails and bases means that the possible applications of the OF 1010 R are virtually unlimited.

Lighting All The Way Around

The LED light with two brightness levels is integrated into the base and provides lighting directly on the workpiece. The battery unit is removable and can be recharged via the USB-C interface.

The Best Option for Precision

The clearly visible work area of the OF 1010 R offers an unobstructed view of the router bit. This enables users to achieve cutting results with absolute precision.

Double Column Clamping

The OF 1010 R is clamped to both guide columns at the same time. This means that the router is secured in place with absolute torsional rigidity. This ensures perfect routing results and time-consuming reworking is a thing of the past.

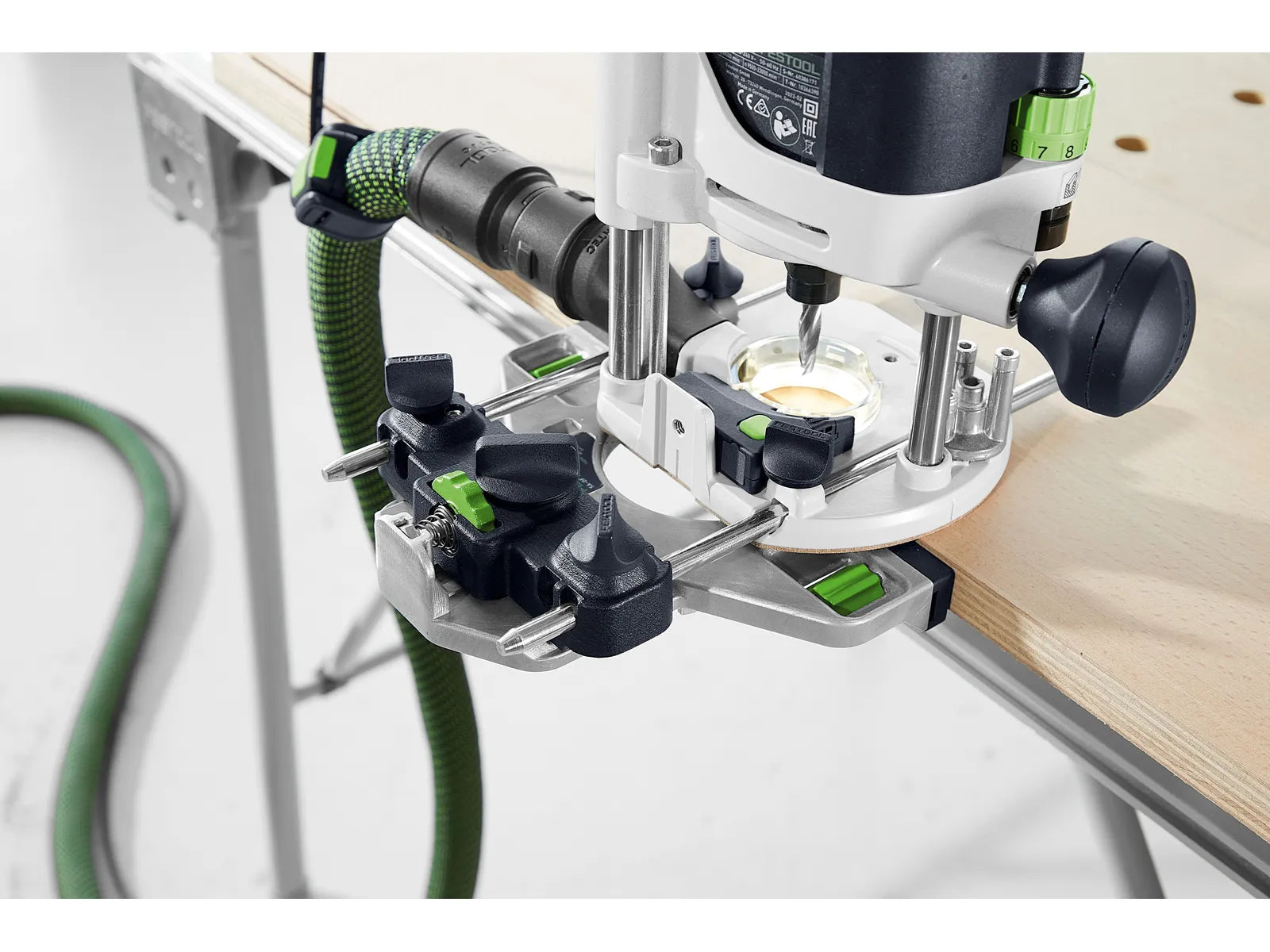

Robust Parallel Edge Guide

The parallel edge guide can be quickly and precisely adjusted without any tools. The fence pieces provide a seamless support area.

Lightweight Structure with Excellent Ergonomics

Its ergonomic handle makes the OF 1010 R fit comfortably in your hand and makes guiding the machine easier and more controllable.

Bit Replacement in Record Time

Router bits in the OF 1010 R can be changed quickly and easily thanks to the easy-to-access work area.

Fine Adjustment

The OF 1010 R has a precise depth adjuster. It takes just a few seconds and minimal effort to finely adjust the routing depth accurately to 1/256" (1/10 mm) using the dial.

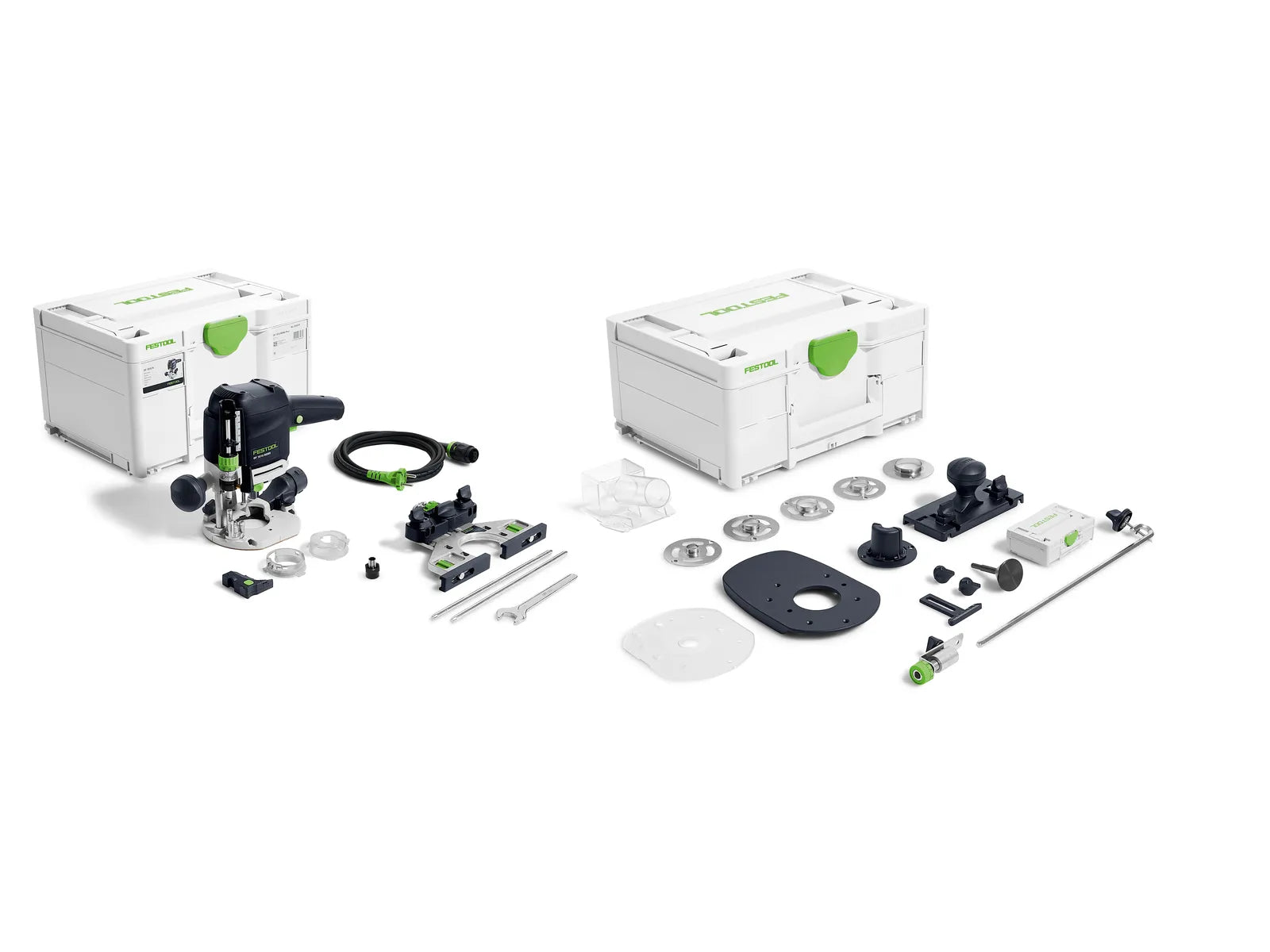

Everything in One Systainer

The OF 1010 R accessories Systainer contains many practical accessories, such as a guide rail adapter, sub-bases, template guides and much more (included in the scope of delivery of the Set versions or available separately).

The Right Router for Every Application

Unconditional quality is uncompromising. That's why we recommend using original Festool router bits. Machines, router bits and accessories – we provide optimal equipment from a single source for versatile and efficient working.

Cleaner Working with a System

Forms the perfect combination with Festool extractors for an unobstructed view of the workpiece and for healthier, precise, time-saving work. The bayonet fitting makes it easy to attach and securely hold D 27 and D 36 suction hoses.

• Power: 1010 Watt
• Idle Engine Speed: 9500 - 23000 RPM
• Routing Depth Fine Adjustment Range: 5/16" (8mm)
• Weight: 7 lbs
• Collet Diameter: 1/4" - 5/16" (6-8mm)
• Dust Extraction Connection Diameter: 1/1-16" (27mm) / 1-13/32" (36mm)
• Routing Stroke: 2-1/8" (55mm)
• Bench Opening: 2" (50mm)

• (1) Parallel Edge Guide With Fine Adjuster SA-OF 1010/MFK
• (1) Light Module LM-OF 1010 R
• (1) Diameter 5/16" Clamping Collet (8 mm)
• (1) Diameter 1/4" Clamping Collet (6.35 mm)
• (1) Collet Wrench, WAF 19
• (1) Plug It-Power Cable (4 m)
• (1) Accessories Set ZS-OF 1010 M
• (1) Systainer Sys3 M 237
