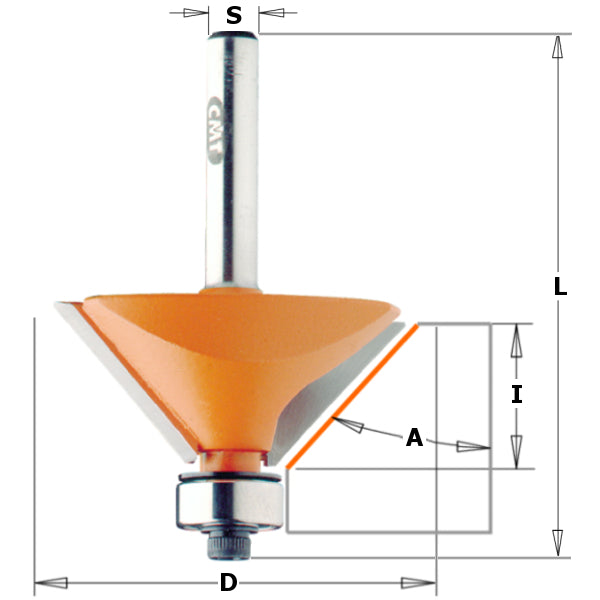

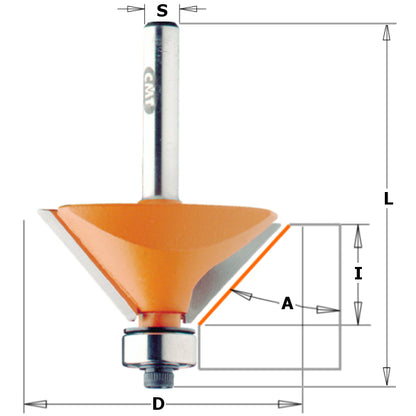

| SKU | Cutting Angle (A) | Diameter (D) | Cutting Length (I) | Total Length (L) | Shank Diameter (S) | Number of Cutting Edges (Z) | Material (MAT) | Rotation (RH-LH) |
|---|---|---|---|---|---|---|---|---|
| 836.130.11 | 15° | 3/4" | 7/16" | 2-5/32" | 1/4" | 2 | HW | RH |
| 836.190.11 | 25° | 7/8" | 13/32" | 2-5/32" | 1/4" | 2 | HW | RH |
| 836.280.11 | 45° | 1-1/4" | 3/8" | 2-3/32" | 1/4" | 2 | HW | RH |
| 836.420.11 | 45° | 1-49/64" | 23/32" | 2-3/8" | 1/4" | 2 | HW | RH |
| 836.920.11 | 45° | 1-49/64" | 23/32" | 2-5/8" | 1/2" | 2 | HW | RH |
| 836.950.11 | 45° | 2-9/16" | 1" | 3-1/32" | 1/2" | 2 | HW | RH |

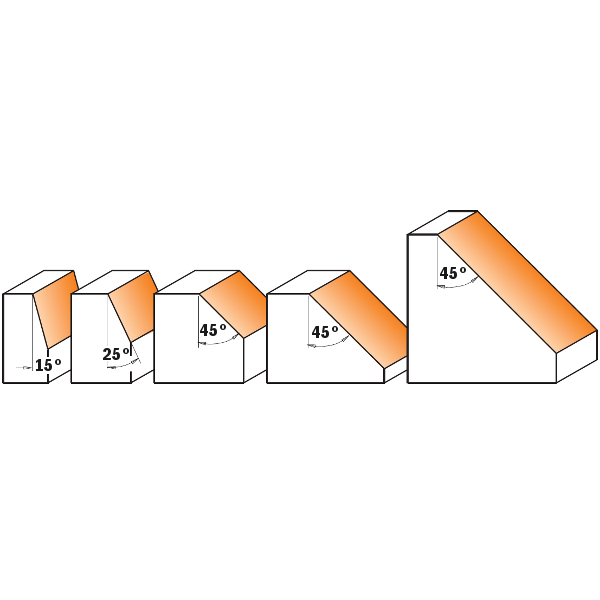

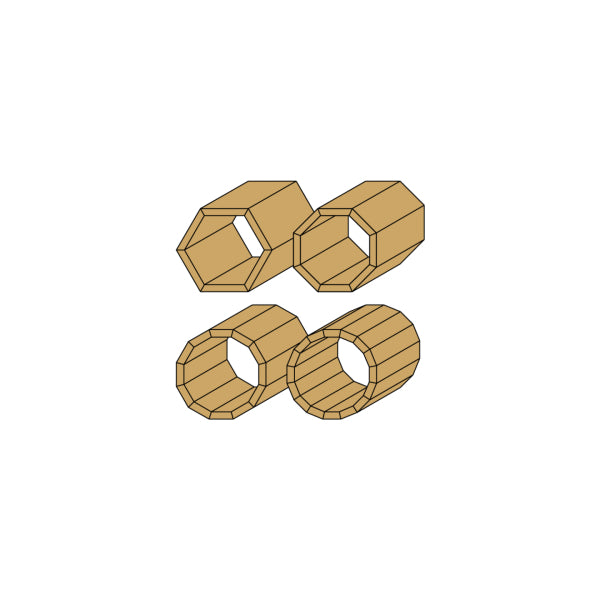

CMT chamfer bits can cut clean, accurate bevels and chamfers and are great for edge work or for making perfectly aligned multi-sided containers, boxes and other decorative projects. See illustration below for examples. Can be used for working larger scale projects such as beams and columns with excellent results.
