Description
Description
THE CORNER IN THE CENTRE.

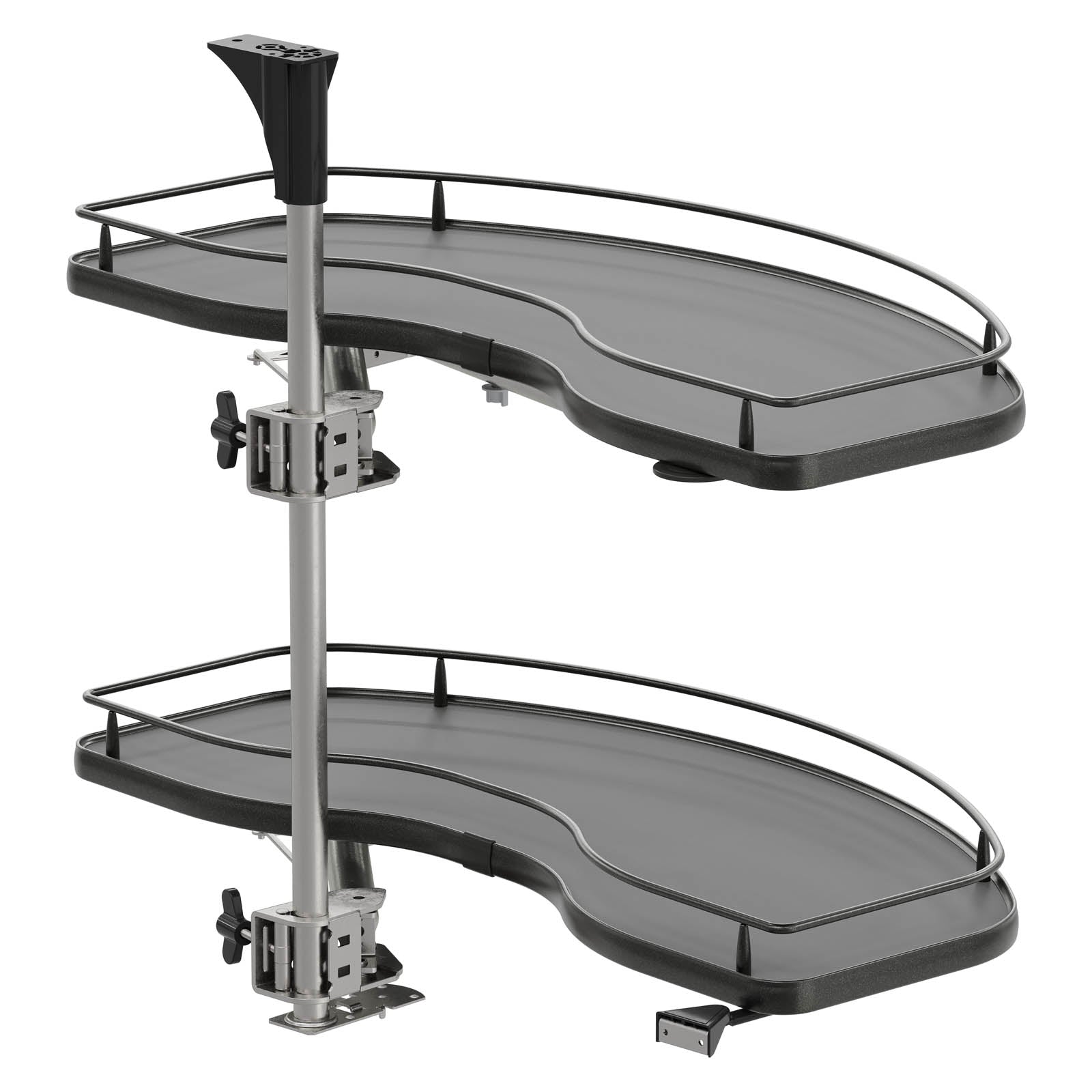

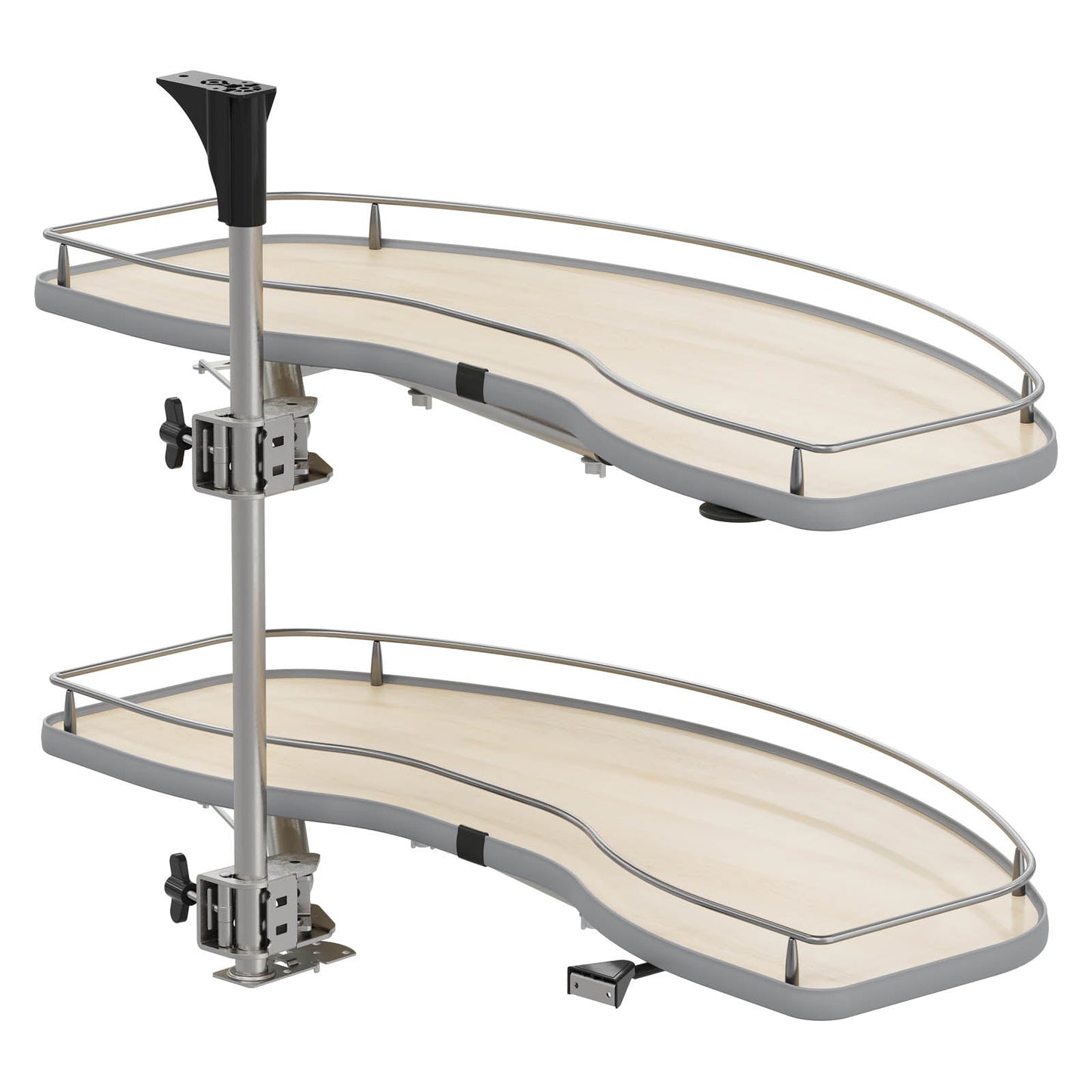

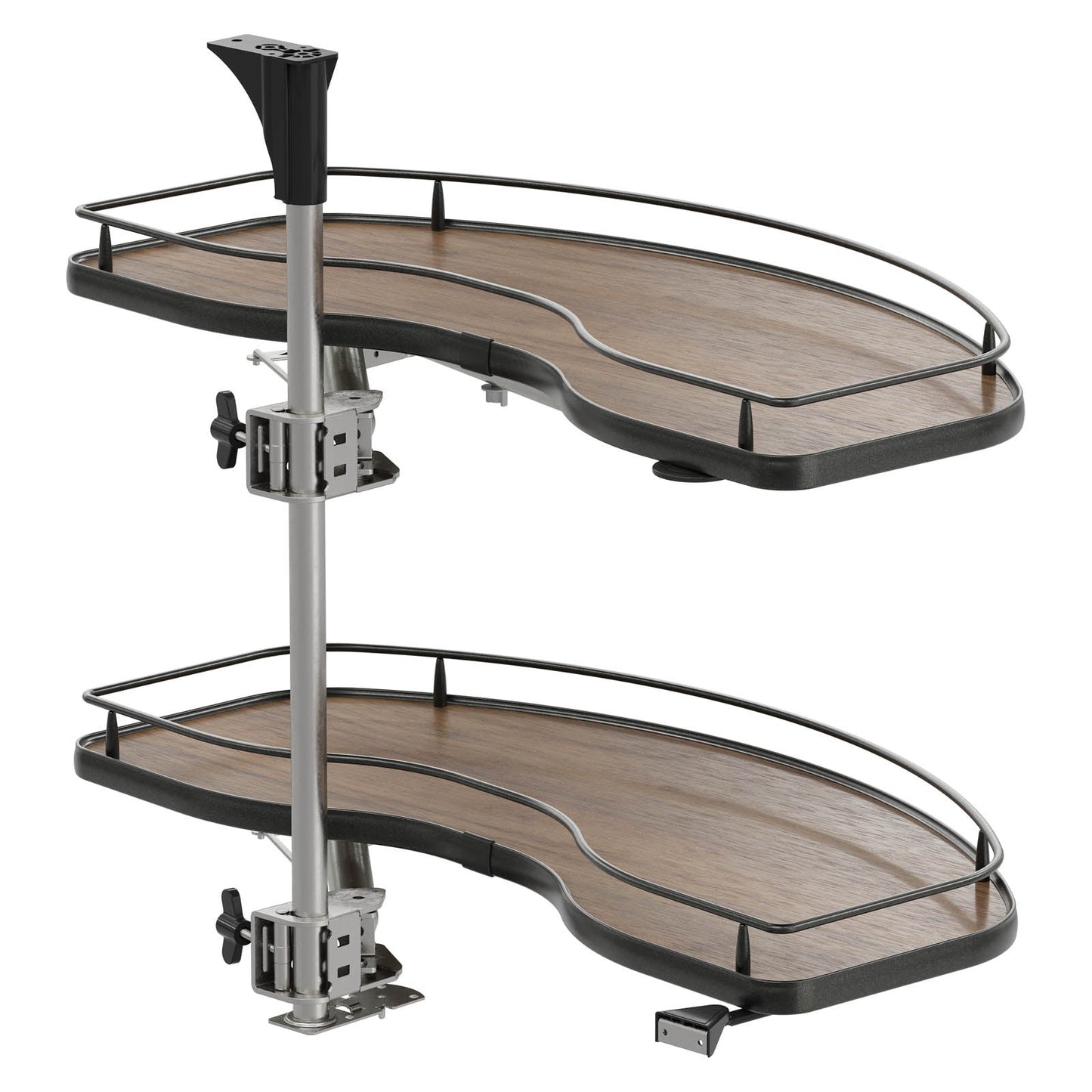

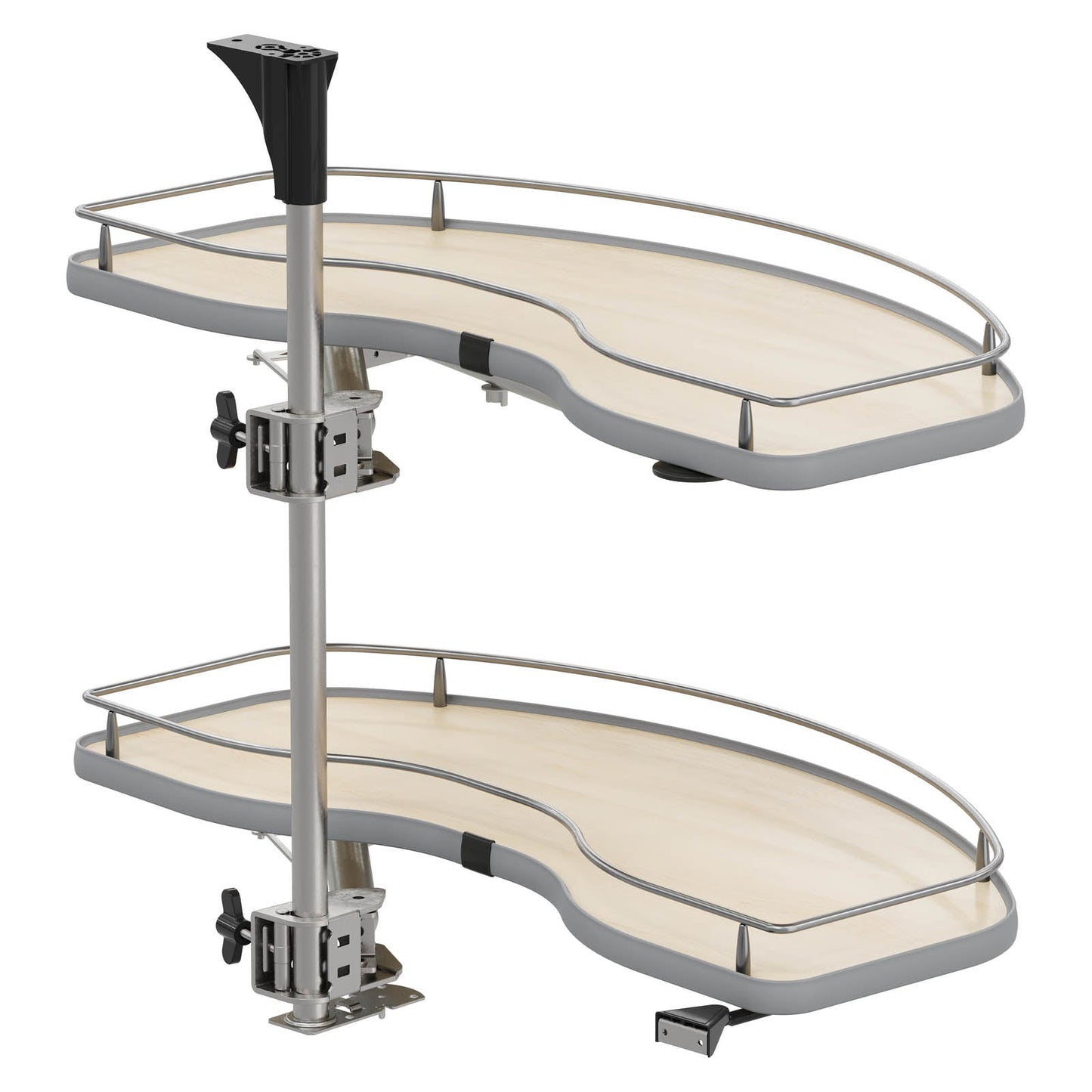

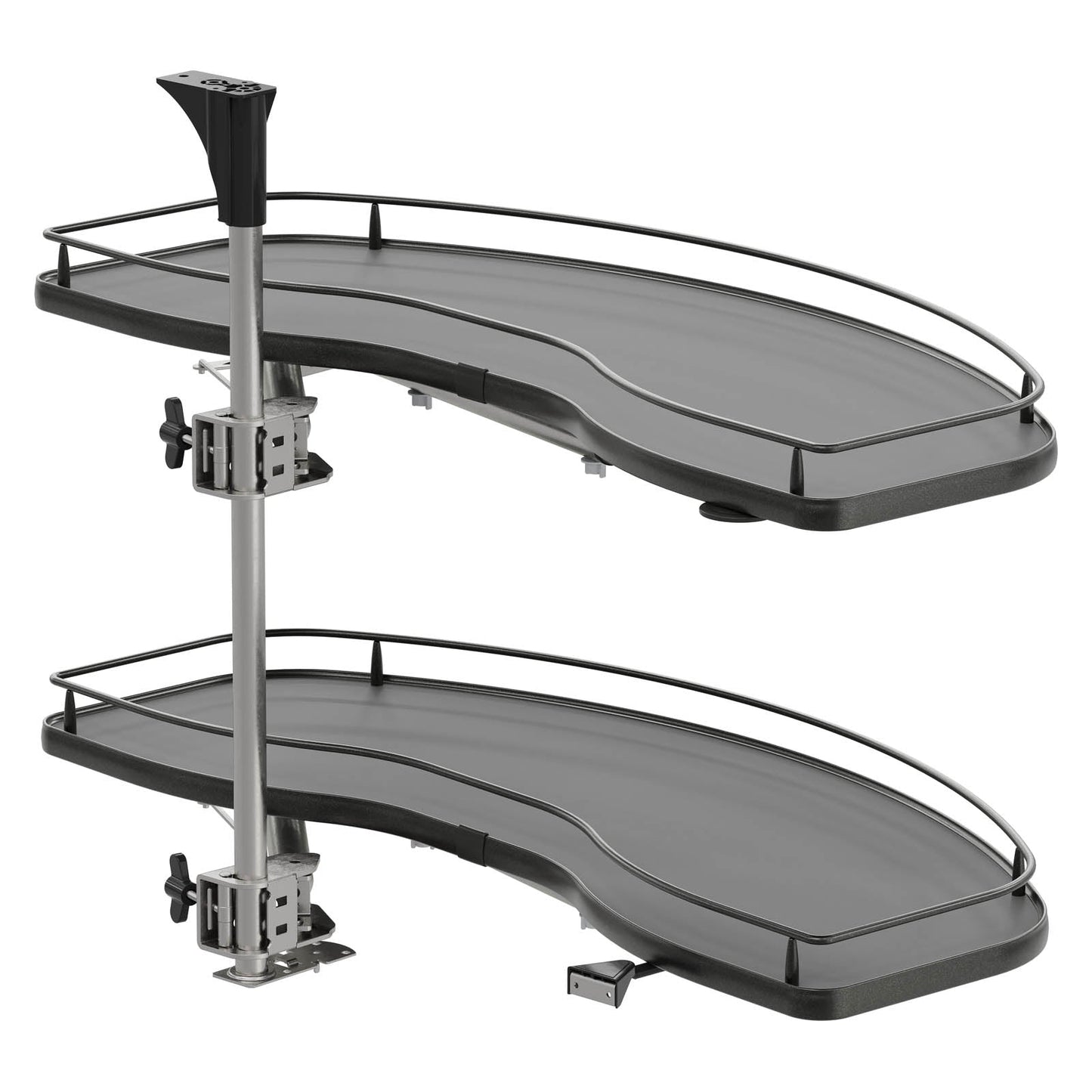

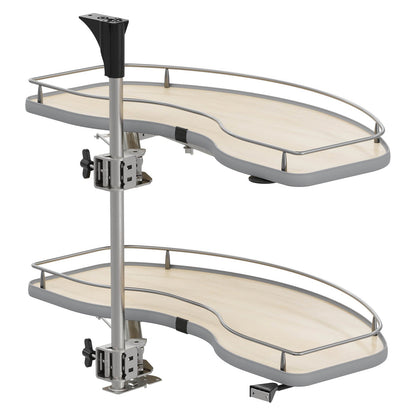

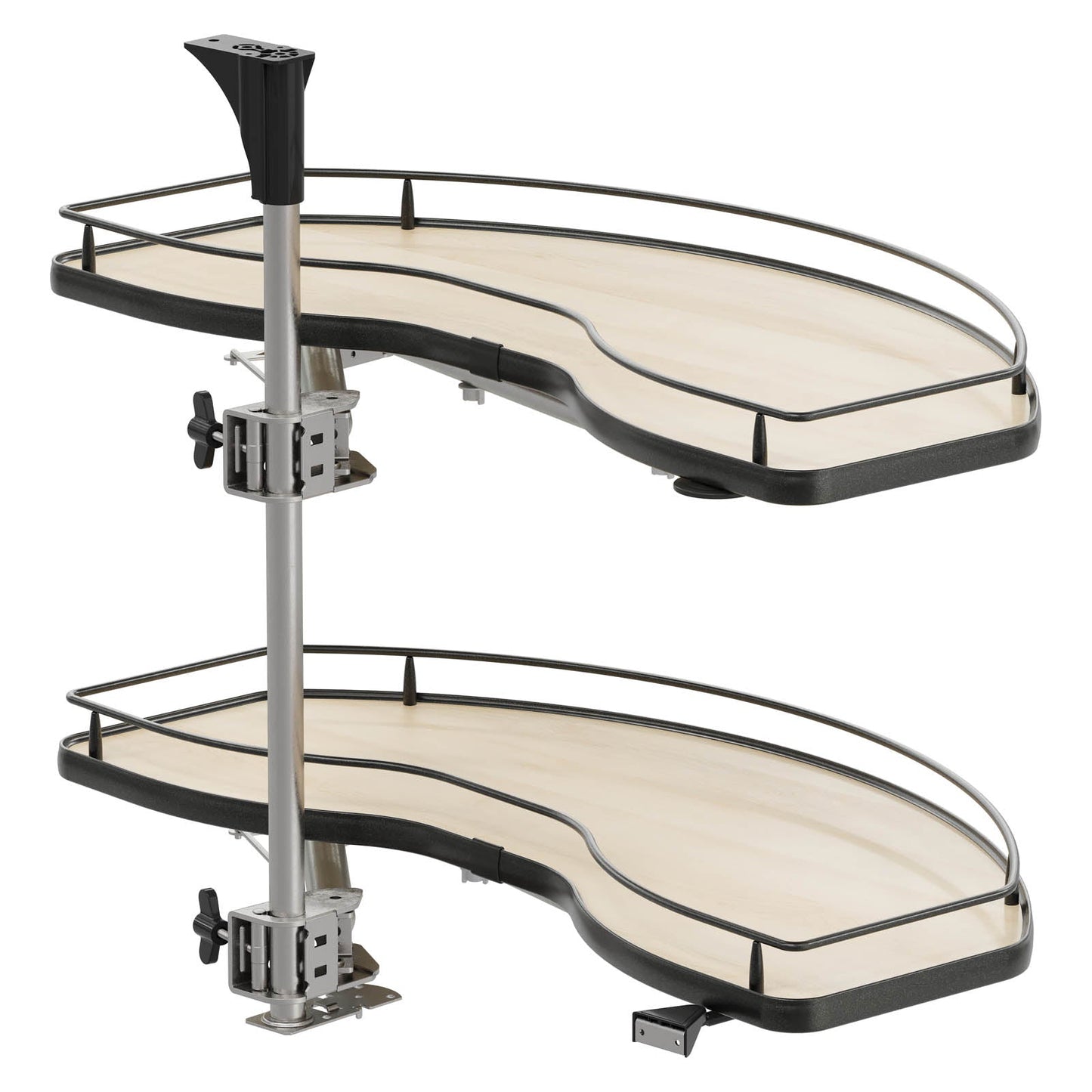

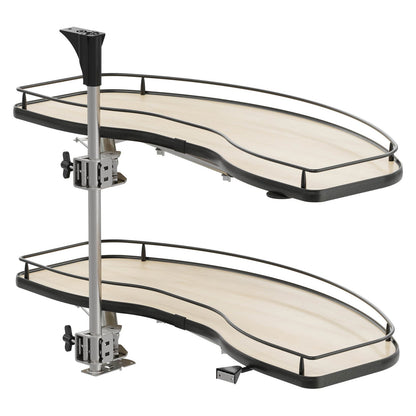

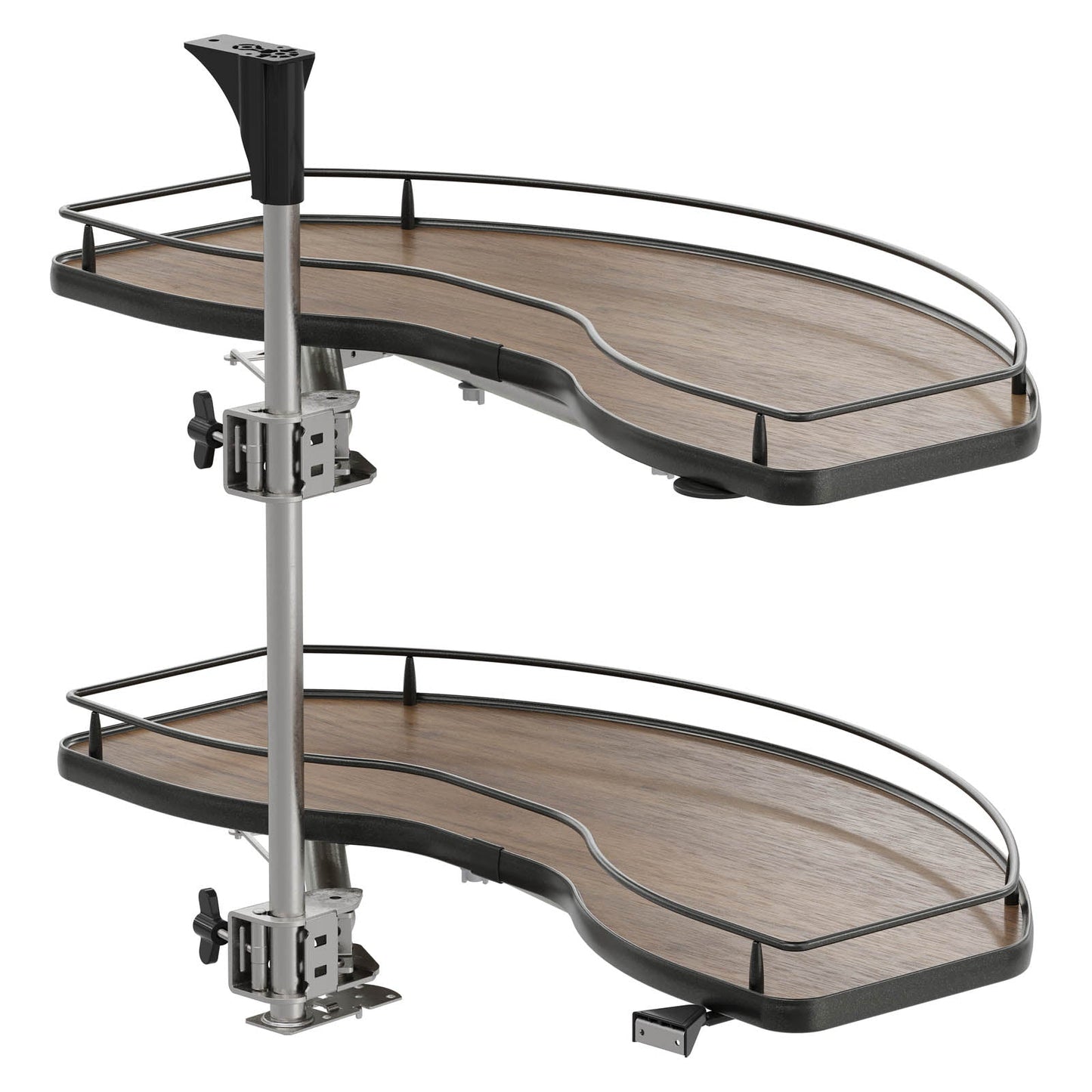

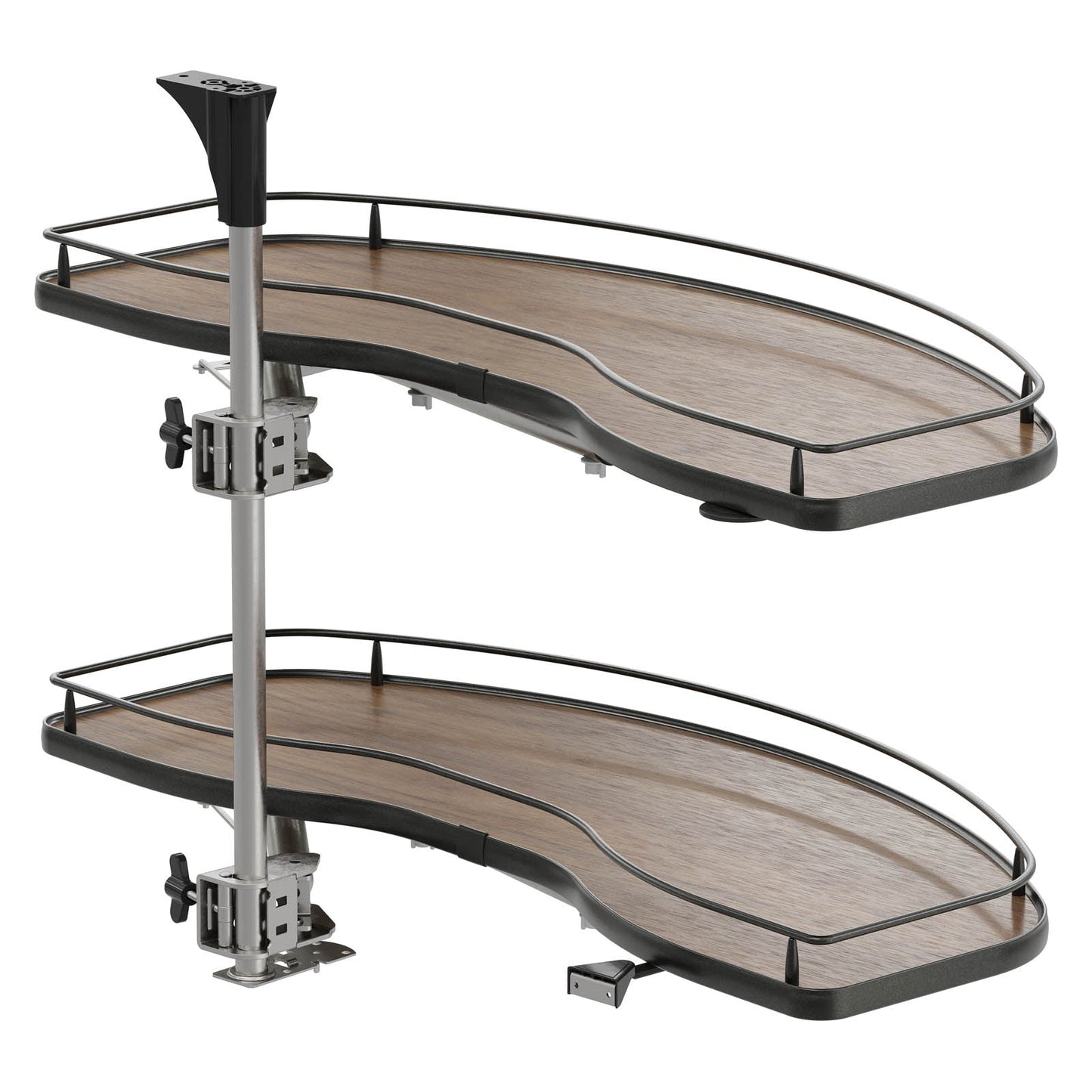

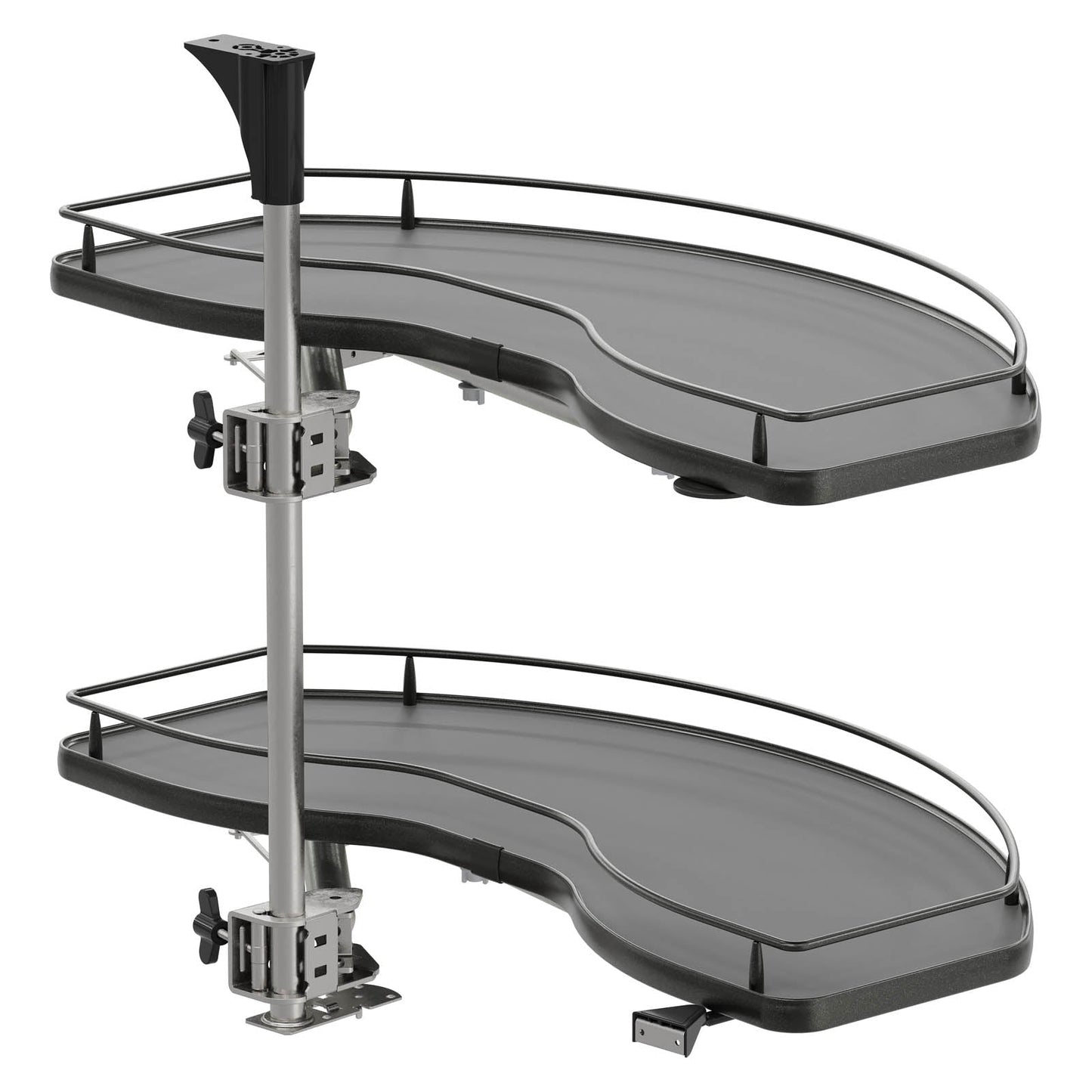

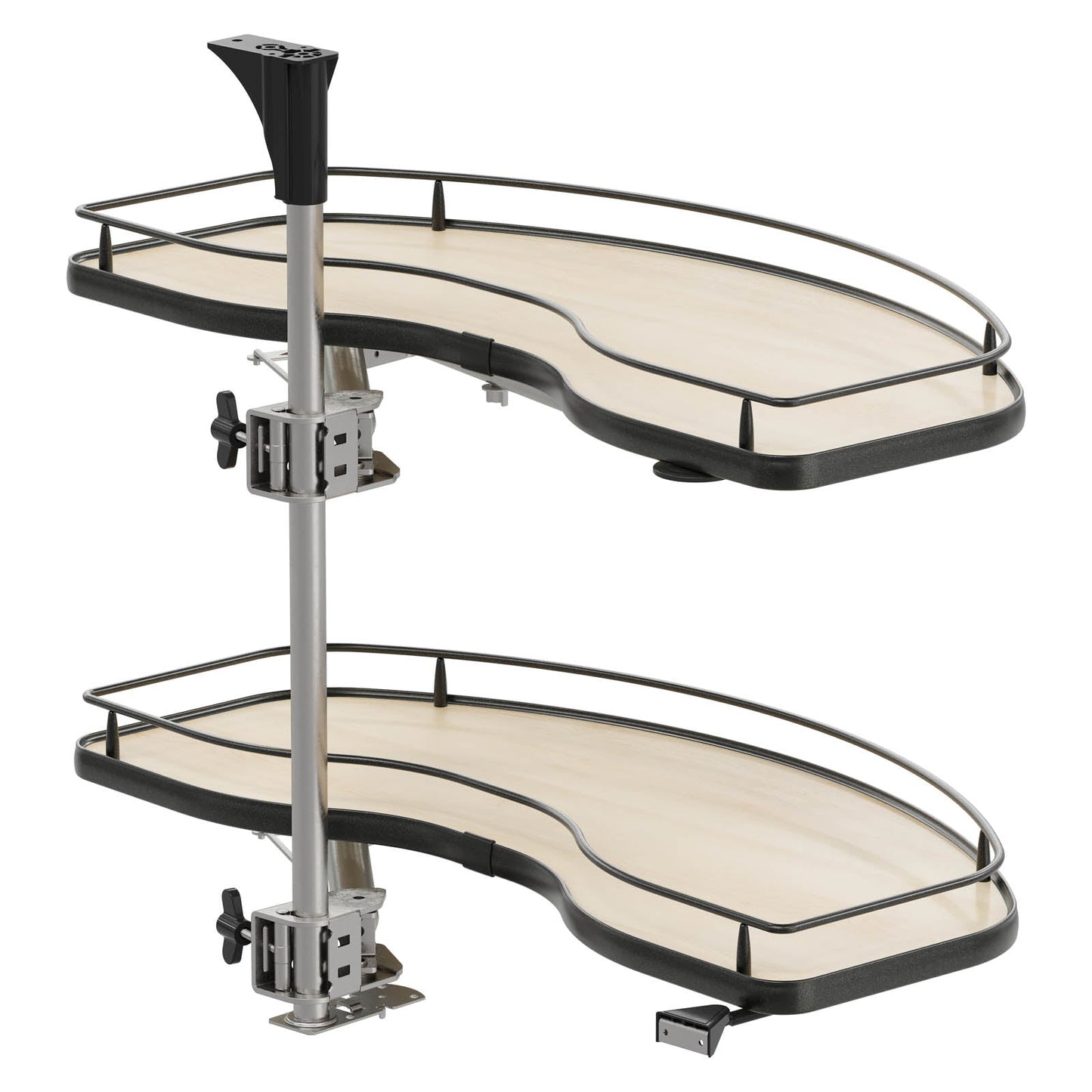

The CORNERSTONE® Swing carousel moves the entire content in front of the unit, thereby unlocking completely new design perspectives. The shelves swivel out to a comfortable distance away from the cabinet; everything is within easy reach. Each shelf can be attached at the required height, and the shelves disappear back inside the unit when the door is closed.
Product Benefits
Independant Movement Of Trays
For more convenient and better access to the lower tray
Door Mounted Lower Tray
The lower tray is attached to the door and follows when the door is opened both trays close as the door closes
L Movement
This unique movement of the trays allows easy access to neighboring cabinets
Optional Soft Close
Damping mechanism for smooth and silent operation
Installation Benefits
Unhanded Installation
No need to worry about right or left handed applications, the CORNERSTONE® Swing trays work both ways!
Easy Assembly

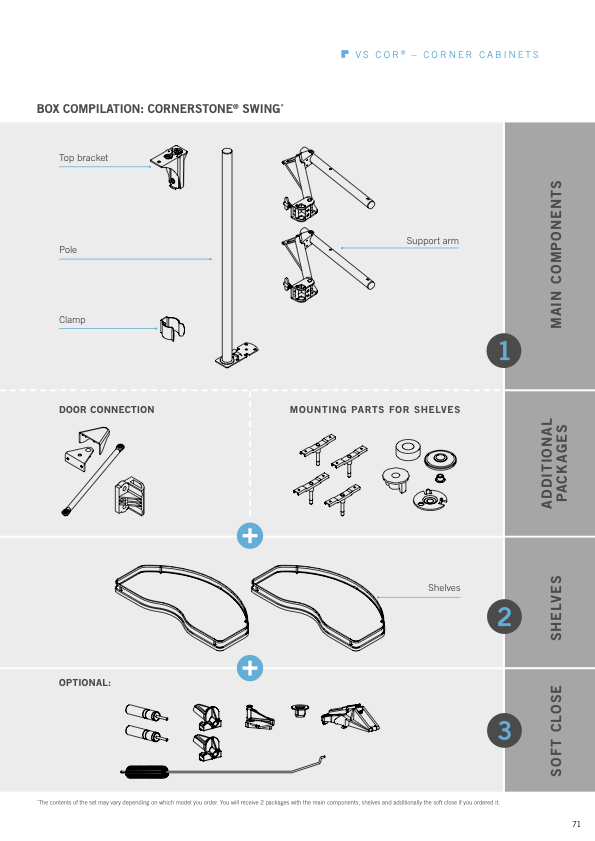

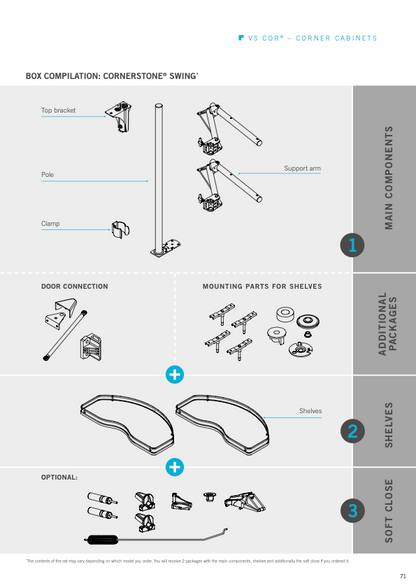

Only the support pole needs to be mounted
Installation Template Included For Easy Installation
Measure your opening – then line up with the arrow on the installation template. Excellent results in minutes.
Retrofit Ready
Can be installed in existing cabinetry without removing the countertop.
Specifications
Specifications
- Weight (lbs): 27.200000000000003
- Finish: Lava
- Cabinet Opening: 18" (36" Cab. Width)
- Installation Height: 24" - 25-5/8"
- Design Group: Scalea
- Number of Bins/Trays/Baskets: 2.0
- Max. Capacity per Bin/Tray/Basket (lbs): 39.7
- Max. Load Capacity for Product (lbs): 79.4
- Cabinet Opening: Face Frame (inches): 18
- Cabinet Opening: Frameless (inches): 18
- Cabinet Width: Face Frame (inches): 36
- Cabinet Width: Frameless (inches): 36
- Min. Installation Height (inches): 24
- Min. Installation Depth (inches): 19.3125
SKU: SKU: VS-90092000053

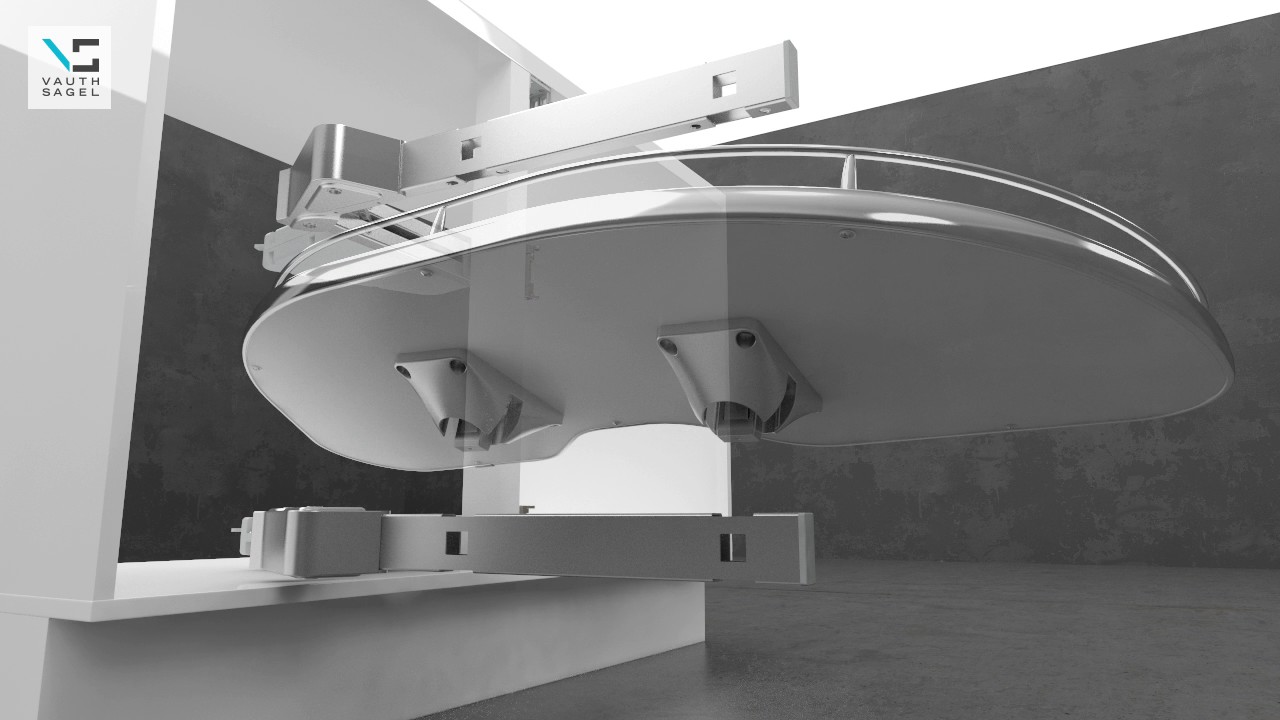

Vauth-Sagel: CORNERSTONE® Maxx Montage | Vauth-Sagel
