Description

  • Double wall steel frame system provides heavy duty structure and a stylish design
  • Unit comes pre-assembled with bins included
  • Melamine Bottom and Back with Edgebanding

Specifications

  • Features: Soft & Silent
  • Minimum height of opening: 489 mm (19 1/4") for 36 qt and 610 mm (24") for 52 qt
  • Minimum Opening Width: 305 mm (12") Face Frame; 324 mm (12 3/4") Frameless; 343 mm (13 1/2") with door brackets reversed for Full Overlay 5 piece doors
  • Internal cabinet depth: Min. (21 13/16") 554 mm
  • Inside cabinet height: Min. (19 1/4") 489 mm
  • Type of pull out: Full extension progressive action runners
  • Mounting: Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)
  • Load bearing capacity: (110 lbs) 50 kg
  • Application: Bottom mount unit designed for Face Frame or Frameless cabinets
  • Capacity: (2 x 27 qt.) 2 x 25.5 liters
  • Material: Frame: Steel; Bottom & back: Melamine; Bin: Plastic
Fulfill

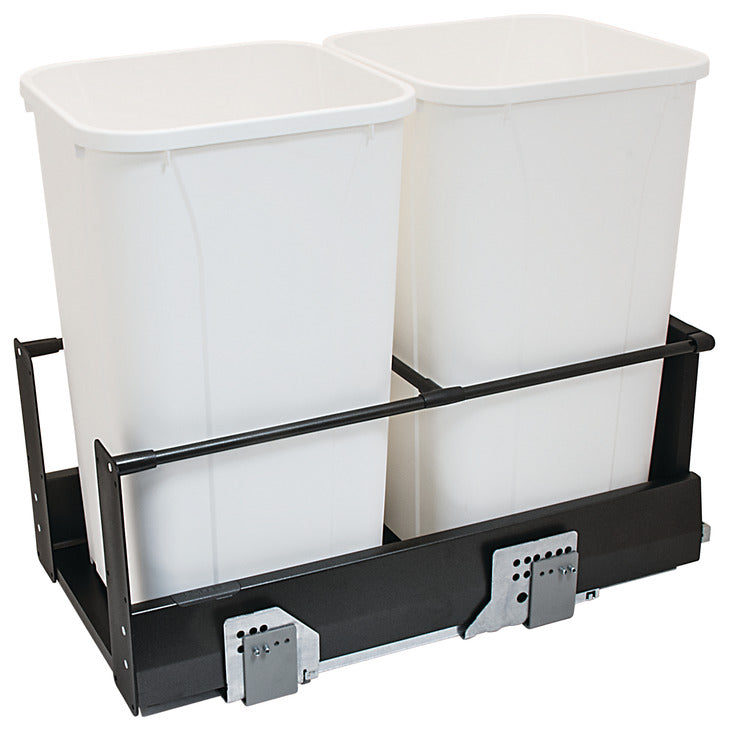

Hafele Double Built-In Bottom Mount Pull-Out MX Waste Bin Pull Out 2 x 27 qt

Hafele Double Built-In Bottom Mount Pull-Out MX Waste Bin Pull Out 2 x 27 qt

Add to wishlist Add to wishlist

SKU: HA-503.15.231

$264.00
$330.00 $264.00
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 1-2 business days . (Minimum order quantity: 1)

Description

  • Double wall steel frame system provides heavy duty structure and a stylish design
  • Unit comes pre-assembled with bins included
  • Melamine Bottom and Back with Edgebanding

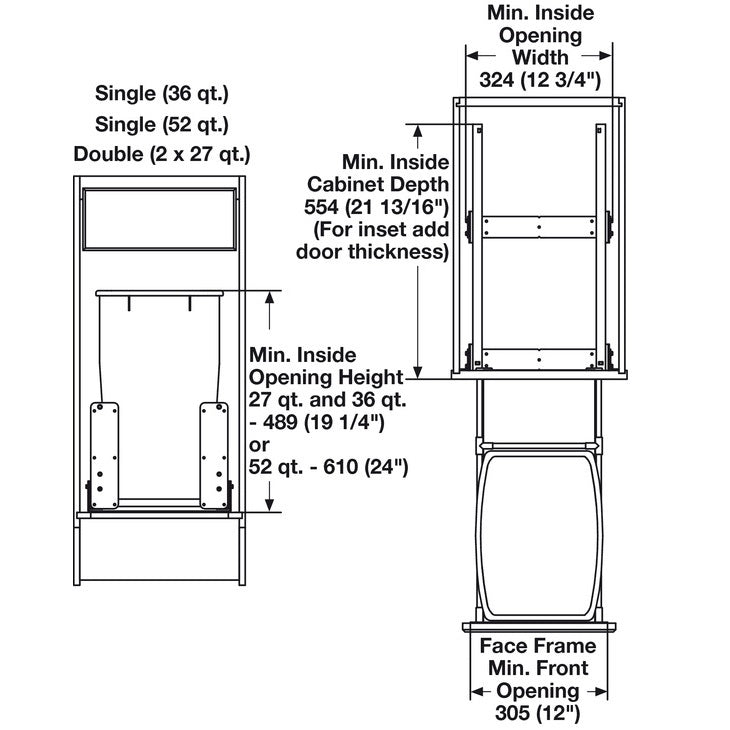

Specifications

  • Features: Soft & Silent
  • Minimum height of opening: 489 mm (19 1/4") for 36 qt and 610 mm (24") for 52 qt
  • Minimum Opening Width: 305 mm (12") Face Frame; 324 mm (12 3/4") Frameless; 343 mm (13 1/2") with door brackets reversed for Full Overlay 5 piece doors
  • Internal cabinet depth: Min. (21 13/16") 554 mm
  • Inside cabinet height: Min. (19 1/4") 489 mm
  • Type of pull out: Full extension progressive action runners
  • Mounting: Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)
  • Load bearing capacity: (110 lbs) 50 kg
  • Application: Bottom mount unit designed for Face Frame or Frameless cabinets
  • Capacity: (2 x 27 qt.) 2 x 25.5 liters
  • Material: Frame: Steel; Bottom & back: Melamine; Bin: Plastic
View full details
