Description

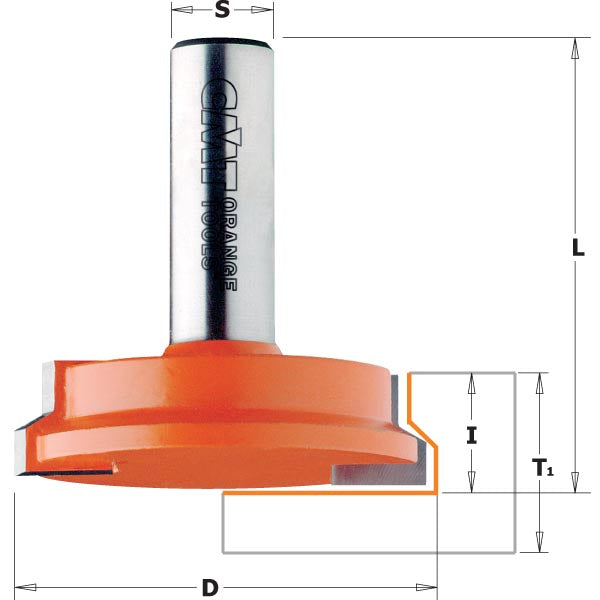

SKU	Diameter (D)	Cutting Length (I)	Total Length (L)	Shank Diameter (S)	Number of Cutting Edges (Z)	Material (MAT)	Rotation (RH-LH)
855.508.11	1"	1/2"	2-1/8"	1/2"	2	HW	RH
855.002.11	1-1/4"	1/2"	1-3/4"	1/4"	2	HW	RH
855.502.11	2"	1/2"	2"	1/2"	2	HW	RH

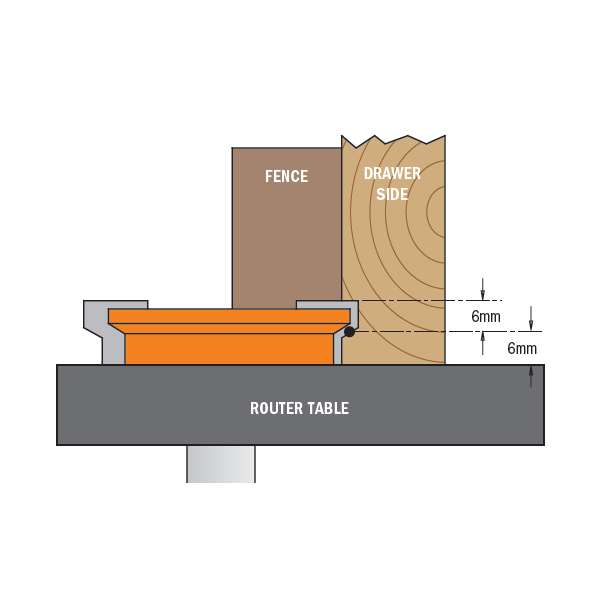

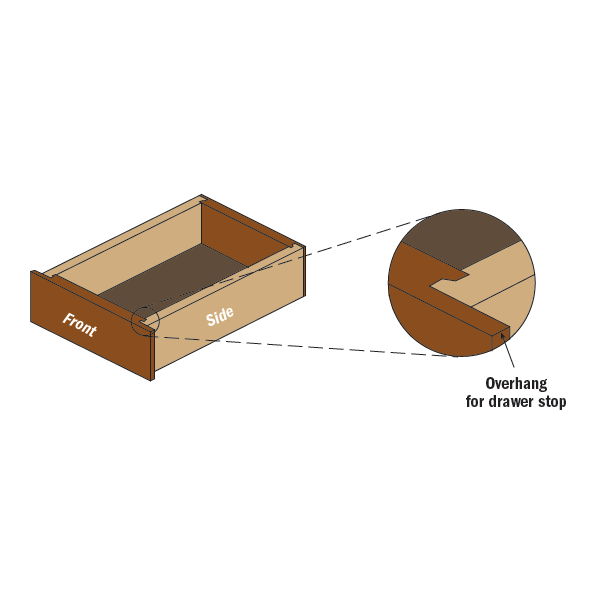

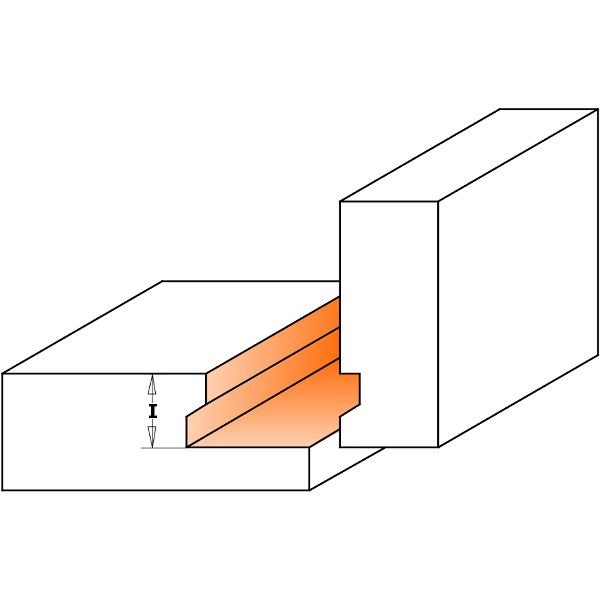

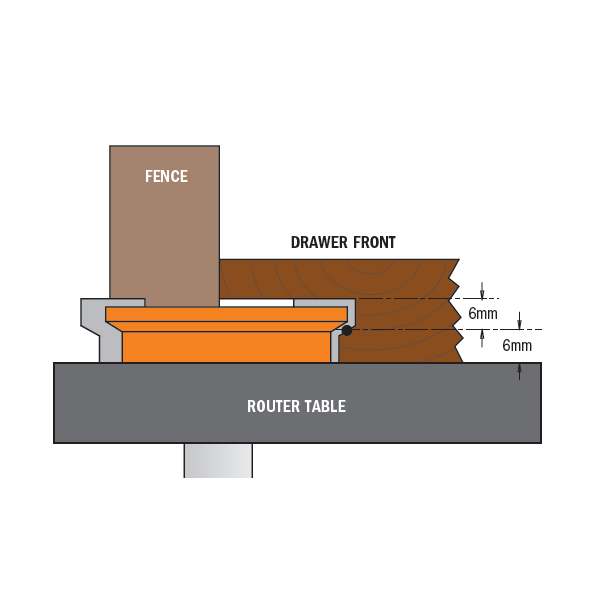

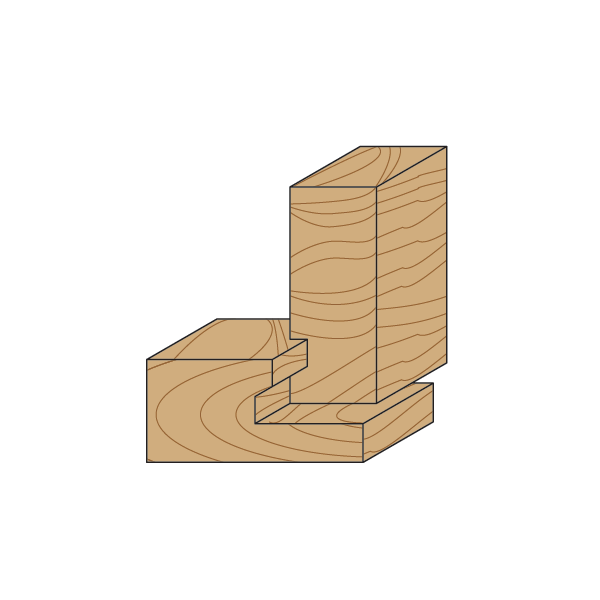

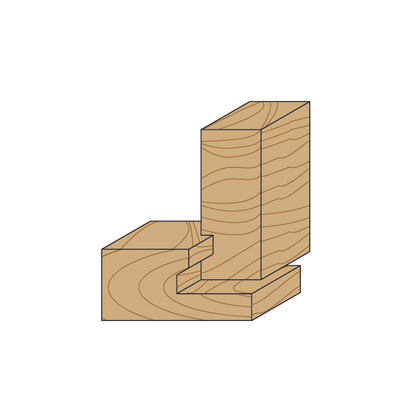

The key to success when constructing quality drawers is in the quality of the drawer lock bit you use. With CMT drawer lock bits you can make strong, perfectly fitting joints quickly and easily. Mill the drawer front with the inside face-down on the work table. Mill the sides of the drawer with the inside face placed vertical to the bit and fence, and perpendicular to the table.

SAFETY TIPS: these bits are to be used on router tables only and are not to be used on hand-held routers.

Fulfill

CMT Drawer Lock Router Bit

CMT Drawer Lock Router Bit

SKU: SKU: CMT-855.508.11

$35.13

~~$52.05~~ $35.13

Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.

Item typically ships within 3-5 business days . (Minimum order quantity: 1)

Returns: Items may be returned within 14 days. A 25% restocking fee applies.

Full policy →

Documents

Instructions - Drawer Lock Bit

Description

SKU	Diameter (D)	Cutting Length (I)	Total Length (L)	Shank Diameter (S)	Number of Cutting Edges (Z)	Material (MAT)	Rotation (RH-LH)
855.508.11	1"	1/2"	2-1/8"	1/2"	2	HW	RH
855.002.11	1-1/4"	1/2"	1-3/4"	1/4"	2	HW	RH
855.502.11	2"	1/2"	2"	1/2"	2	HW	RH

The key to success when constructing quality drawers is in the quality of the drawer lock bit you use. With CMT drawer lock bits you can make strong, perfectly fitting joints quickly and easily. Mill the drawer front with the inside face-down on the work table. Mill the sides of the drawer with the inside face placed vertical to the bit and fence, and perpendicular to the table.

SAFETY TIPS: these bits are to be used on router tables only and are not to be used on hand-held routers.
