Description

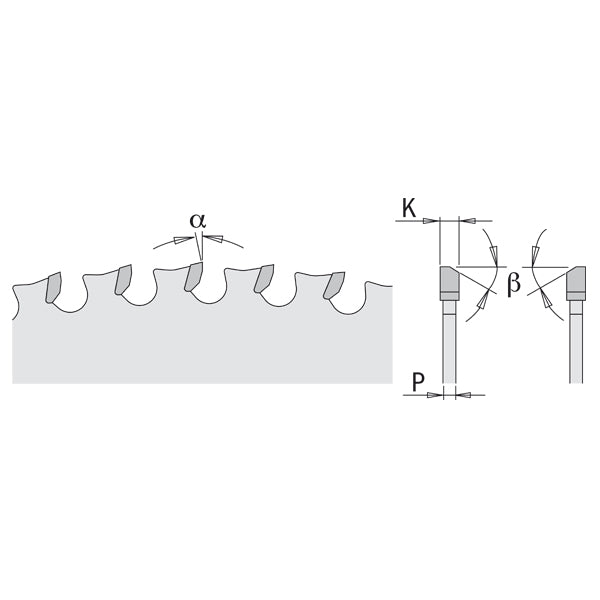

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
226.030.05 N/A 5-3/8" 0.059 10mm 8° FWF 30 0.047
226.030.05H N/A 5-3/8" 0.059" 20mm 8° FWF 30 0.047"
226.030.06H 2/6/32 160mm 0.079" 20mm 8° FWF 30 0.063"
226.036.06 N/A 6-1/2" 0.059 5/8"<> 8° FWF 36 0.047
226.048.07 N/A 7-1/4" 0.079 5/8"<> 8° FWF 48 0.063
226.048.08 N/A 8-8-1/4" 0.087 5/8"<> 8° FWF 48 0.071
226.048.08M 2/7/42 8-1/4" 0.087" 30mm 8° FWF 48 0.071"
226.048.10 N/A 10" 0.087 5/8" 8° FWF 48 0.071
226.060.10 N/A 10" 0.087 5/8" 8° FWF 60 0.071
226.060.12 N/A 12" 0.087 1" 8° FWF 60 0.071
226.080.12 N/A 12" 0.087 1" 8° FWF 80 0.071

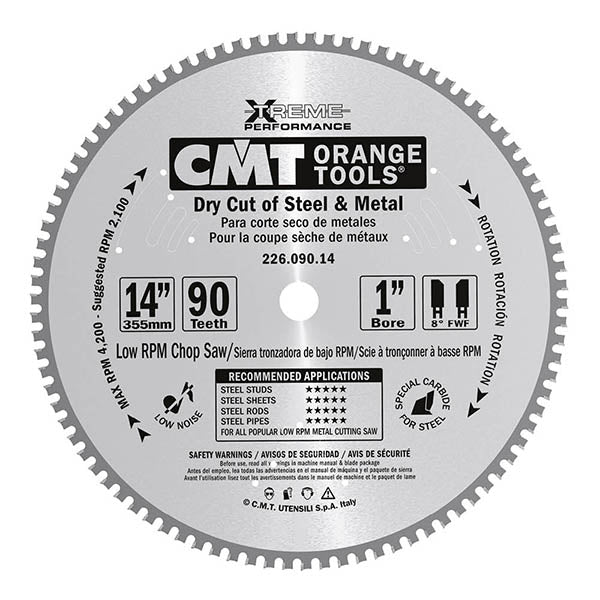

226.090.14 N/A 14" 0.087 1" 8° FWF 90 0.071
226.072.14 N/A 14" 0.087 1" 8° FWF 72 0.071

TECHNICAL DETAILS OF CARBIDE TEETH:

  • Teeth height mm: 5
  • ISO Grade: K30
  • Hardness (HV10): 1.520
  • Transverse rupture strength (N/mm2): 2.300

SAFETY PRECAUTIONS: highly recommended for use with low RPM saws only.

NON-LOW-NOISE SAW BLADES:

  • 226.030.05
  • 226.030.05H

SAW BLADES IN CARDBOARD BOX:

  • 226.060.10M
  • 226.080.12M
  • 226.090.14M
  • APPLICATION

    • Application: for fast cutting through steel and metal.
    • Machines: low RPM metal chop saws such as Jepson Power®, Dewalt®, Porter-Cable® and Hitachi® machines.
    • Material: iron and steel, rods and pipe, channel and rebar. Max Suggested Hardness HB420/HRC45.

    Safety Precautions: Highly recommend for use with LOW RPM saws only.

    Fulfill

    CMT Dry Cutter Circular Saw Blade

    CMT Dry Cutter Circular Saw Blade

    Add to wishlist Add to wishlist

    SKU: SKU: CMT-226.030.05

    Regular price $33.97
    Regular price $56.65 Sale price $33.97
    Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
    Item typically ships within 3-5 business days . (Minimum order quantity: 1)

    Description

    SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
    226.030.05 N/A 5-3/8" 0.059 10mm 8° FWF 30 0.047
    226.030.05H N/A 5-3/8" 0.059" 20mm 8° FWF 30 0.047"
    226.030.06H 2/6/32 160mm 0.079" 20mm 8° FWF 30 0.063"
    226.036.06 N/A 6-1/2" 0.059 5/8"<> 8° FWF 36 0.047
    226.048.07 N/A 7-1/4" 0.079 5/8"<> 8° FWF 48 0.063
    226.048.08 N/A 8-8-1/4" 0.087 5/8"<> 8° FWF 48 0.071
    226.048.08M 2/7/42 8-1/4" 0.087" 30mm 8° FWF 48 0.071"
    226.048.10 N/A 10" 0.087 5/8" 8° FWF 48 0.071
    226.060.10 N/A 10" 0.087 5/8" 8° FWF 60 0.071
    226.060.12 N/A 12" 0.087 1" 8° FWF 60 0.071
    226.080.12 N/A 12" 0.087 1" 8° FWF 80 0.071
    226.090.14 N/A 14" 0.087 1" 8° FWF 90 0.071
    226.072.14 N/A 14" 0.087 1" 8° FWF 72 0.071

    TECHNICAL DETAILS OF CARBIDE TEETH:

    • Teeth height mm: 5
    • ISO Grade: K30
    • Hardness (HV10): 1.520
    • Transverse rupture strength (N/mm2): 2.300

    SAFETY PRECAUTIONS: highly recommended for use with low RPM saws only.

    NON-LOW-NOISE SAW BLADES:

    • 226.030.05
    • 226.030.05H

    SAW BLADES IN CARDBOARD BOX:

  • 226.060.10M
  • 226.080.12M
  • 226.090.14M
  • APPLICATION

    • Application: for fast cutting through steel and metal.
    • Machines: low RPM metal chop saws such as Jepson Power®, Dewalt®, Porter-Cable® and Hitachi® machines.
    • Material: iron and steel, rods and pipe, channel and rebar. Max Suggested Hardness HB420/HRC45.

    Safety Precautions: Highly recommend for use with LOW RPM saws only.
