Description

Please NOTE: This item requires the Euro-Bit Self Centering Drilling Tool.

Quickly and accurately locates European concealed hinge plates
Lightweight, durable construction
Will locate all makes of concealed hinges regardless of cup size

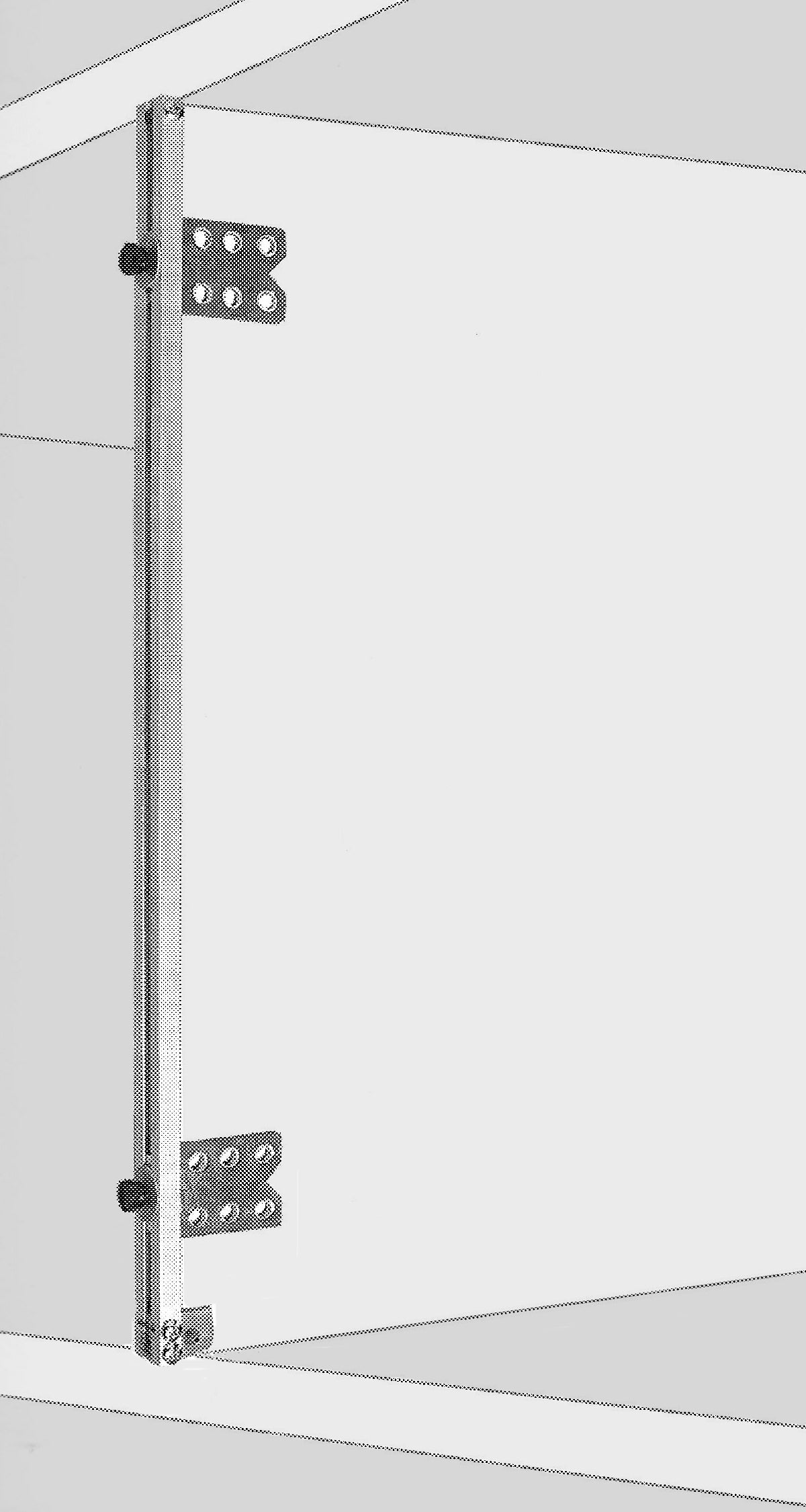

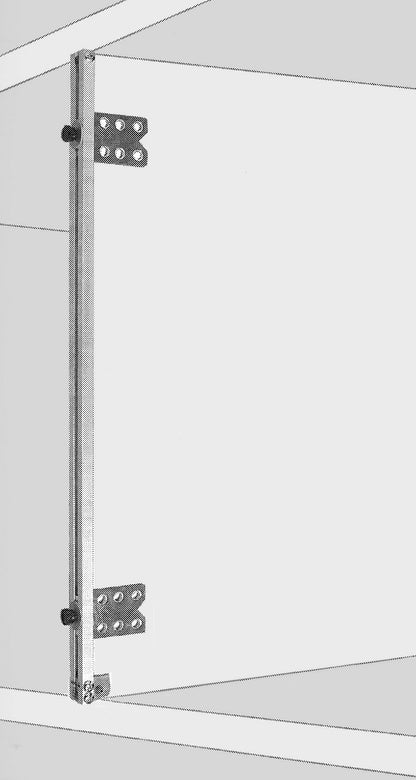

"V" locator templates set to door hinge arm, then transfers layout to cabinet
Minimal setup time allows for changing hinge locations quickly
Works for overlay and inset conditions, and face frames
Will effectively set doors up to 50" tall
Length 28-3/4", designed to clear existing countertops, making Euro-Jig ideal for refacing operations

Specifications

Rails: Extruded Aluminum
Templates: Lexan-polycarbonate plastic
Rail Connectors: Chrome Steel
Knobs: Plastic with Steel Studs
Color: Aluminum, Natural Plastic, Grey
Finish: Aluminum, Anodaized Plastic, Matte
Size (Assembled): 11.75" W x 1.5" D x 28.75" L

In stock, 2 units

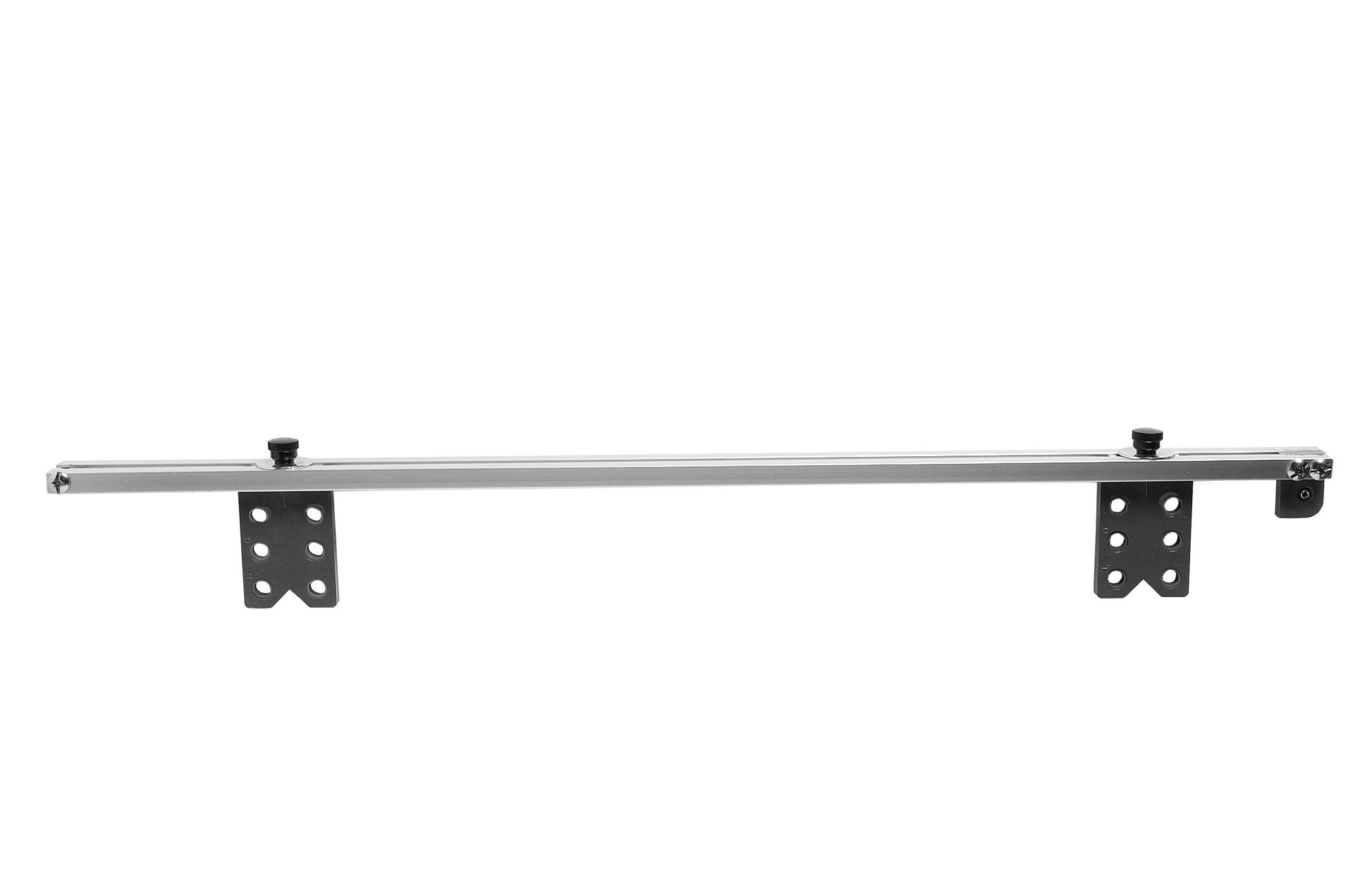

Euro-Jig Concealed Hinge Installation Jig - Euro Limited

Name: Euro-Jig Concealed Hinge Installation Jig - Euro Limited
Brand: Euro Limited
SKU: EL-EJ-200
Price: 73.95 USD
Availability: InStock

SKU: SKU: EL-EJ-200

$73.95

~~$73.95~~ $73.95

In Stock

Active stock item in main warehouse.

Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within 2-5 business days . (Minimum order quantity: 1)

Returns: Items may be returned within 14 days. A 25% restocking fee applies.

Full policy →

Description

Please NOTE: This item requires the Euro-Bit Self Centering Drilling Tool.

Quickly and accurately locates European concealed hinge plates
Lightweight, durable construction
Will locate all makes of concealed hinges regardless of cup size
"V" locator templates set to door hinge arm, then transfers layout to cabinet
Minimal setup time allows for changing hinge locations quickly
Works for overlay and inset conditions, and face frames
Will effectively set doors up to 50" tall
Length 28-3/4", designed to clear existing countertops, making Euro-Jig ideal for refacing operations
