Hafele Free Space Swing-Up Lift 1.11
Add to wishlist (0)

Hafele Free Space Swing-Up Lift 1.11

SKU: HA-372.27.500



10 items are available for order
Add to cart
I agree that delivery of my product will take some time:
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)

Payment & Security. Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

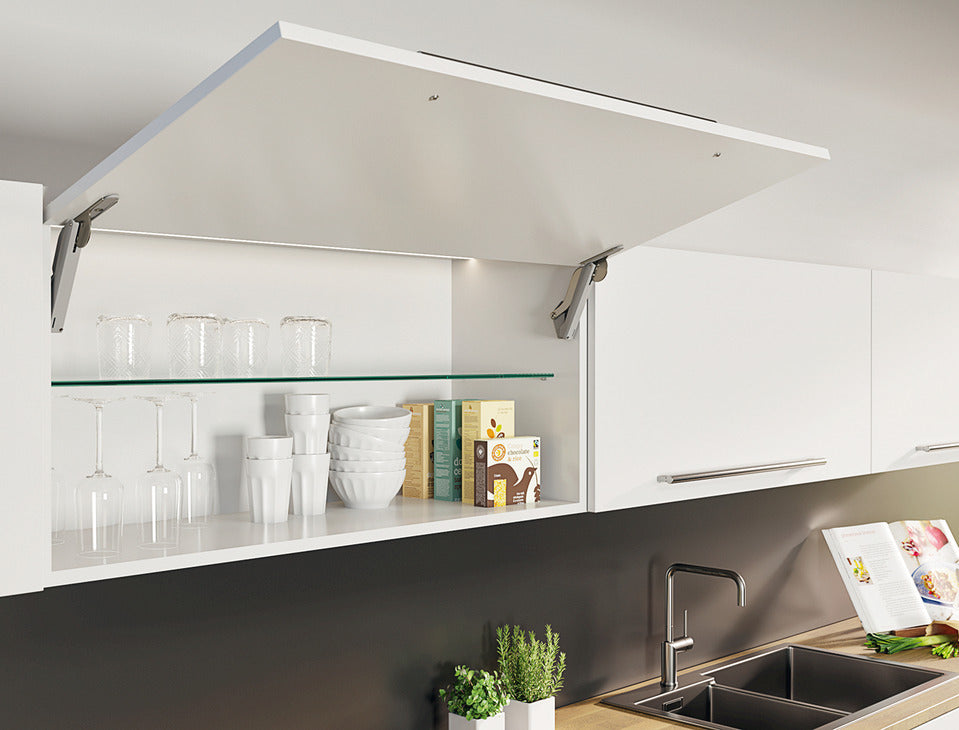

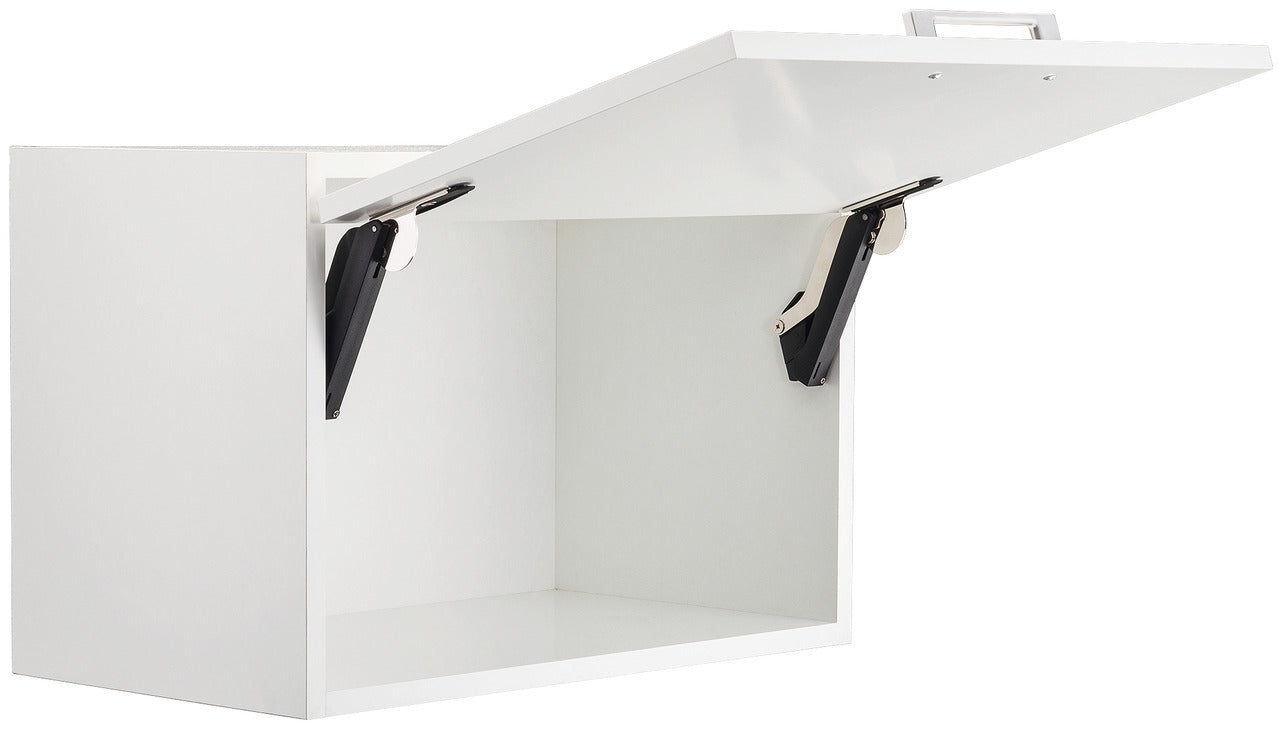

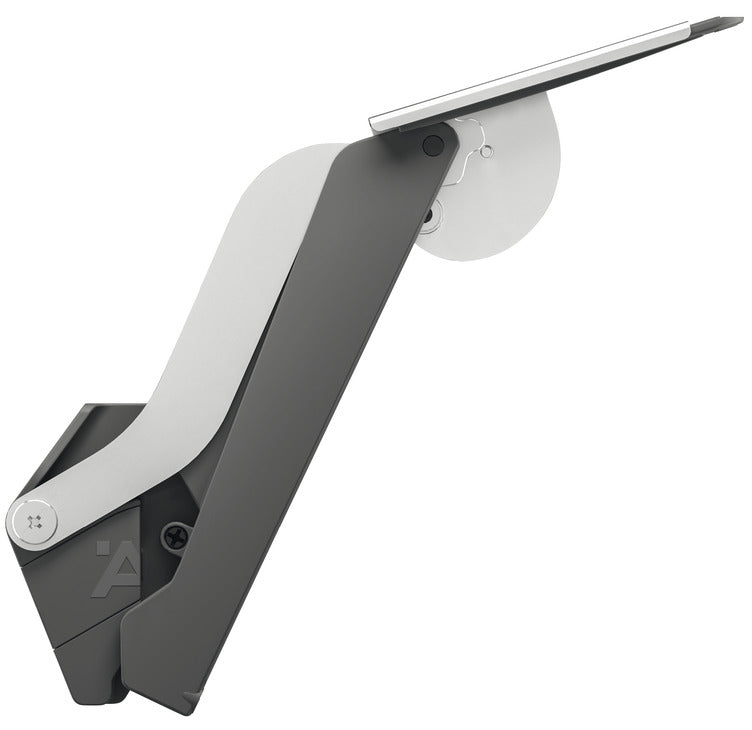

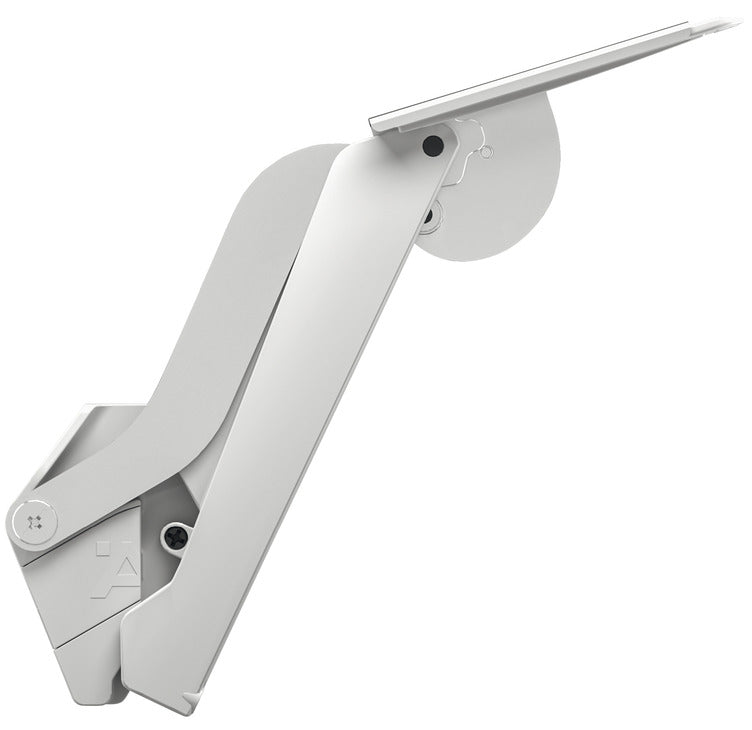

This innovative and modern swing-up lift from Hafele is used for standard application doors with handles.

The set is supplied with:

  • 2 Fittings (left/right)
  • 2 Mounting plates for door panel
  • 1 set of installation instructions and paper drilling template


  • Extremely powerful and versatile: the Free Space series can be used for a much wider range of applications – up to 80% of all flap applications!
  • For wood or aluminum frame doors

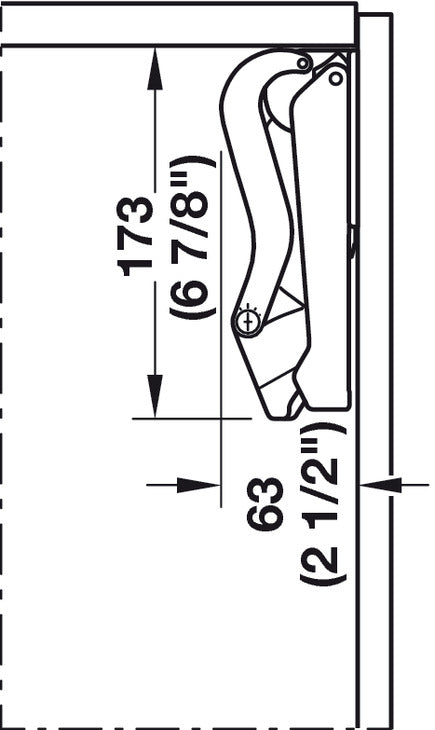

  • Extremely compact: modern design and Häfele engineered technology allow for more space inside a cabinet
  • Door opening can be adjusted to open at 90° or 107° with integrated stop
  • Fast simple installation: plugs into standard 32/37 mm line holes and fastens with one pre-mounted screw

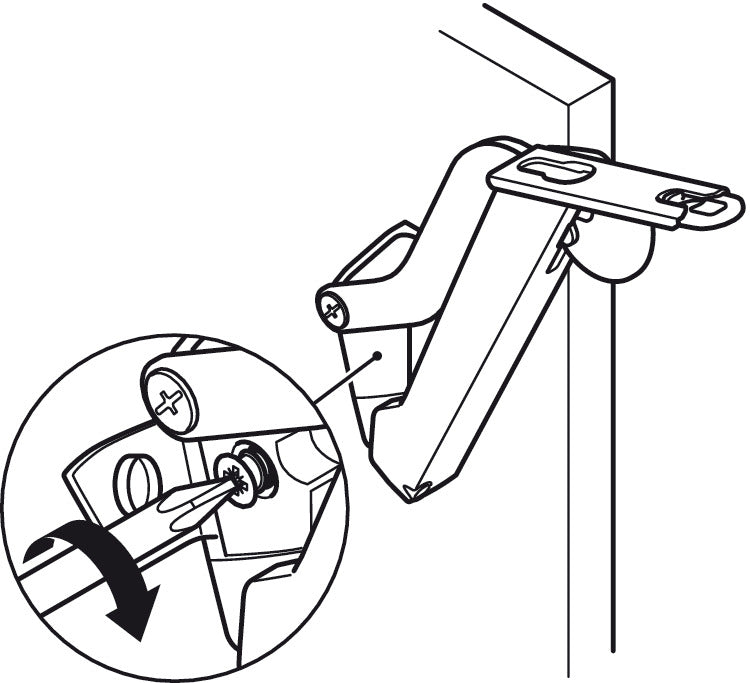

  • Intuitive 3D door alignment and closing adjustment
  • Additional hinges and cover caps are not required
  • The flap stays reliably put in any position
  • With integrated soft close

Additional Notes

  • The choice of fitting depends on the cabinet height and door weight to include weight of handle.
  • We recommend ordering the stronger fitting model if in doubt.

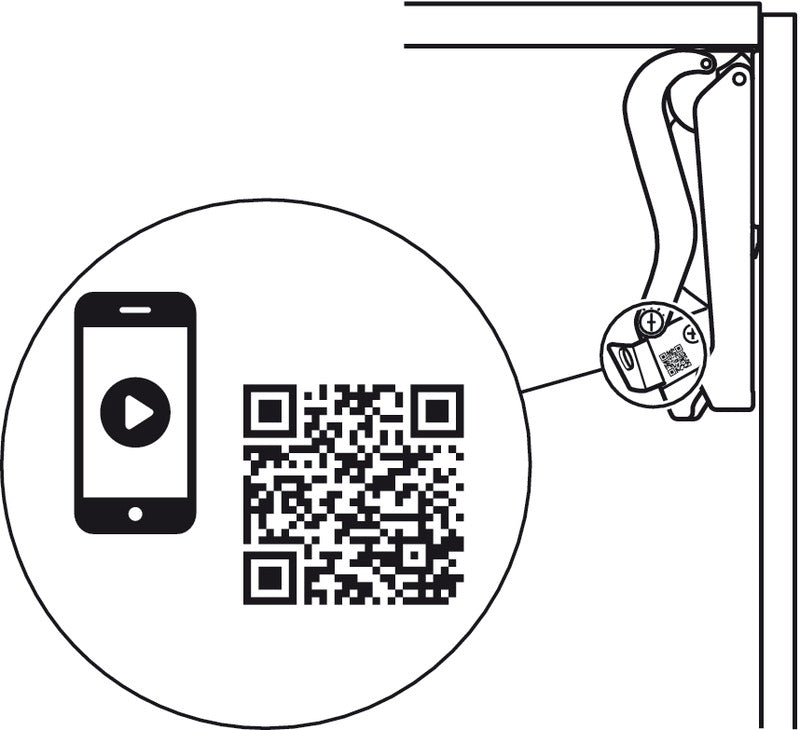

Hafele Free Space Introduction Video

Hafele Free Space Flap Fitting Video

Hafele Free Space Installation Video

Show more Show less


  • Application: For standard stay flap applications with front height up to 26" (650 mm)
  • Opening Angle: 90° or 107°
  • Adjustment: Height, side, tilting angle, holding power

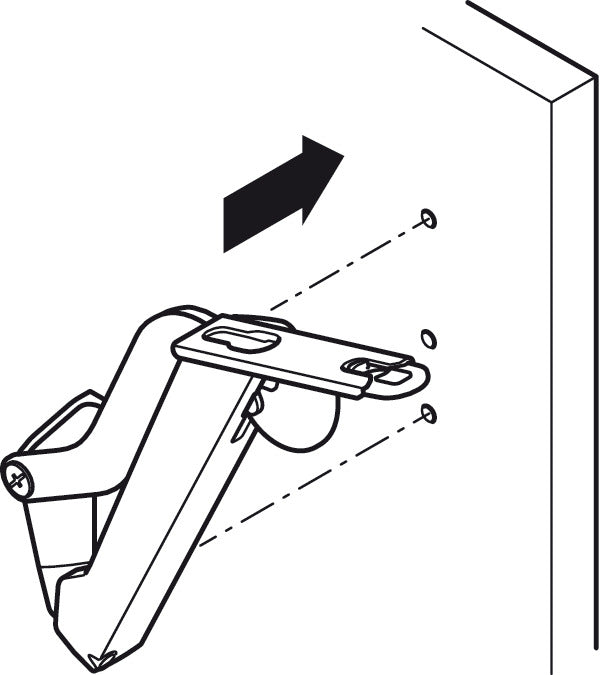

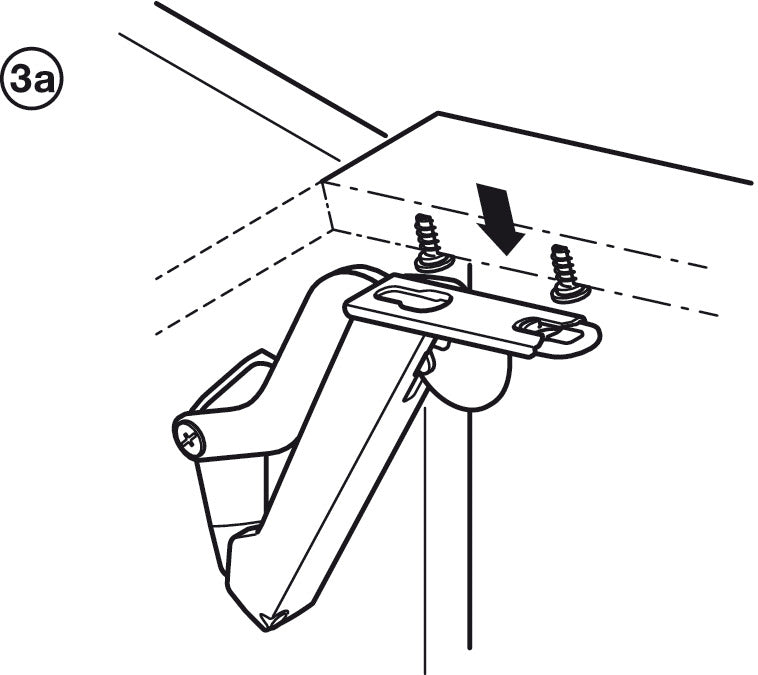

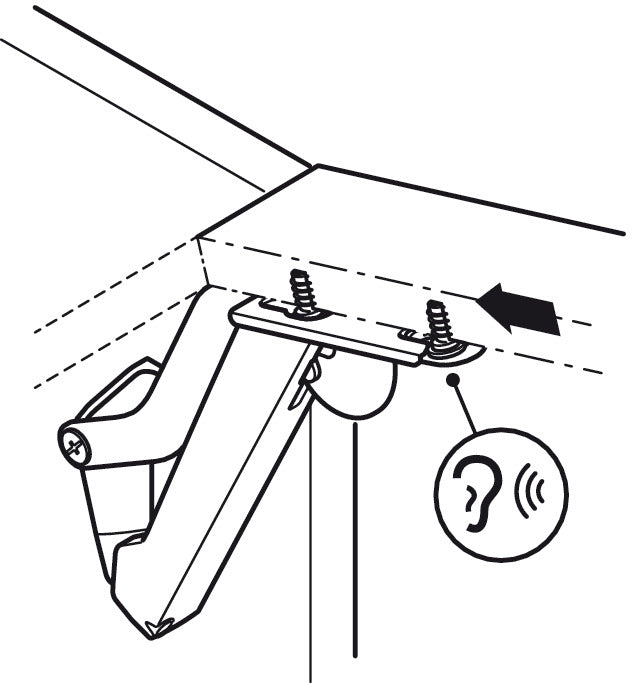

  • Installation: Screw mounts with pre-mounted Euro screw; Door panel mounts without tools and slides onto pre-mounted screws
  • Material: Housing: Plastic; Front fixing bracket and support lever: Steel
  • Finish/color: Nickel-plated Anthracite
