Description

Touch dimmer, surface or recess mounted, modular
> Tap for On/Off
> Memory function can be switched off with integrated dip switch
> Power consumption: 0.1W
> Tap and hold to dim up/down
> Soft on/off

  • Memory function after power loss:
    1. Memory function ON – same status as before the power loss
    2. Memory function OFF – lights turned on 100% when power is restored
    The DEFAULT value is with memory function → ON

Order reference

Order 2 m (78 3/4") lead for modular switches separately.
Order optional white, black, or gray surface mount housing separately.

Specifications

  • Version: For lead with snap-in connector
  • Switching function: Soft on/off, dimming
  • Memory function: Yes (also in currentless condition)

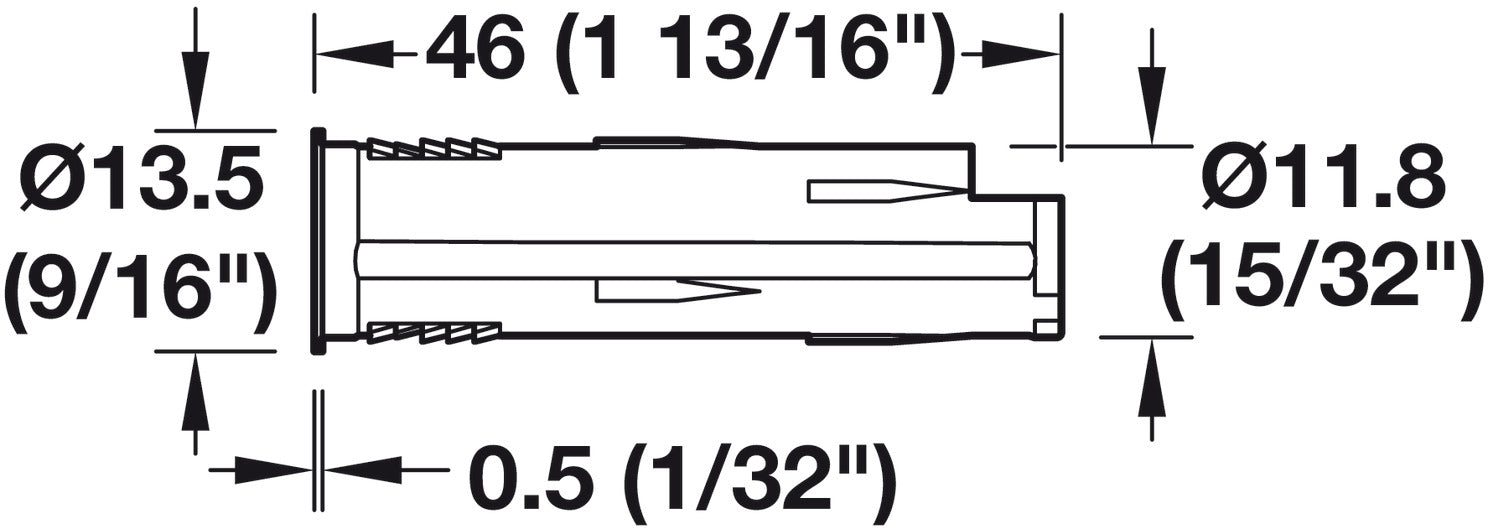

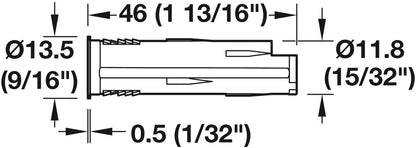

  • Drill hole diameter: 12 mm
  • Length: 46 mm
  • Sensor range: 0-60 mm
  • Material: Plastic
  • Power consumption: 0.1 watts
  • Degree of protection: IP20
  • Installation: For mounting in drilled hole, or for plug fitting into housing

What's Included

  • 1 touch dimmer
  • 3 cover sleeves (white, gray, black)
DISCONTINUED

Hafele On/Off Dimming Sensor Switches, Touch dimmer, surface or recess mounted, modular

Hafele On/Off Dimming Sensor Switches, Touch dimmer, surface or recess mounted, modular

Add to wishlist Add to wishlist

SKU:

$12.00
$32.00 $12.00
In Stock

LOOX Modular Switch Cables (Required)

$6.40

$8.00

$9.60

Active stock item in main warehouse.
Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within NO MORE AVAILABLE . (Minimum order quantity: 1)

Description

Touch dimmer, surface or recess mounted, modular
> Tap for On/Off
> Memory function can be switched off with integrated dip switch
> Power consumption: 0.1W
> Tap and hold to dim up/down
> Soft on/off

  • Memory function after power loss:
    1. Memory function ON – same status as before the power loss
    2. Memory function OFF – lights turned on 100% when power is restored
    The DEFAULT value is with memory function → ON

Order reference

Order 2 m (78 3/4") lead for modular switches separately.
Order optional white, black, or gray surface mount housing separately.

Specifications

  • Version: For lead with snap-in connector
  • Switching function: Soft on/off, dimming
  • Memory function: Yes (also in currentless condition)
  • Drill hole diameter: 12 mm
  • Length: 46 mm
  • Sensor range: 0-60 mm
  • Material: Plastic
  • Power consumption: 0.1 watts
  • Degree of protection: IP20
  • Installation: For mounting in drilled hole, or for plug fitting into housing

What's Included

  • 1 touch dimmer
  • 3 cover sleeves (white, gray, black)
