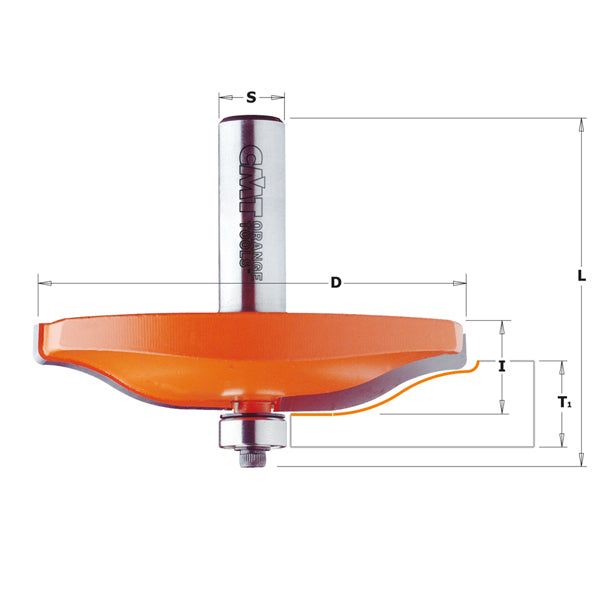

| SKU | Diameter (D) | Cutting Length (I) | Total Length (L) | Shank Diameter (S) | Number of Cutting Edges (Z) | Material (MAT) | Rotation (RH-LH) |
|---|---|---|---|---|---|---|---|
| 890.512.11 | 1-7/8" | 3/8" | 2-9/32" | 1/2" | 2 | HW | RH |
| 890.501.11 | 3-1/4" | 19/32" | 2-1/2" | 1/2" | 2 | HW | RH |
| 890.502.11 | 3-1/4" | 19/32" | 2-1/2" | 1/2" | 2 | HW | RH |
| 890.503.11 | 3-1/4" | 19/32" | 2-17/32" | 1/2" | 2 | HW | RH |
| 890.504.11 | 3-1/2" | 19/32" | 2-17/32" | 1/2" | 2 | HW | RH |
| 890.505.11 | 3-1/2" | 19/32" | 2-17/32" | 1/2" | 2 | HW | RH |
| 890.506.11 | 3-1/2" | 19/32" | 2-17/32" | 1/2" | 2 | HW | RH |
| 890.507.11 | 3-1/2" | 19/32" | 2-17/32" | 1/2" | 2 | HW | RH |
Make classic raised panel doors with these CMT bits. They feature carbide cutting edges, our trademark orange coating and anti-kickback design for safety.
SAFETY TIPS: these bits should be used between 10.000 and 12.000 RPM, three to five passes recommended. To be used with routers with at least 1,7 KW (2-1/4 HP).

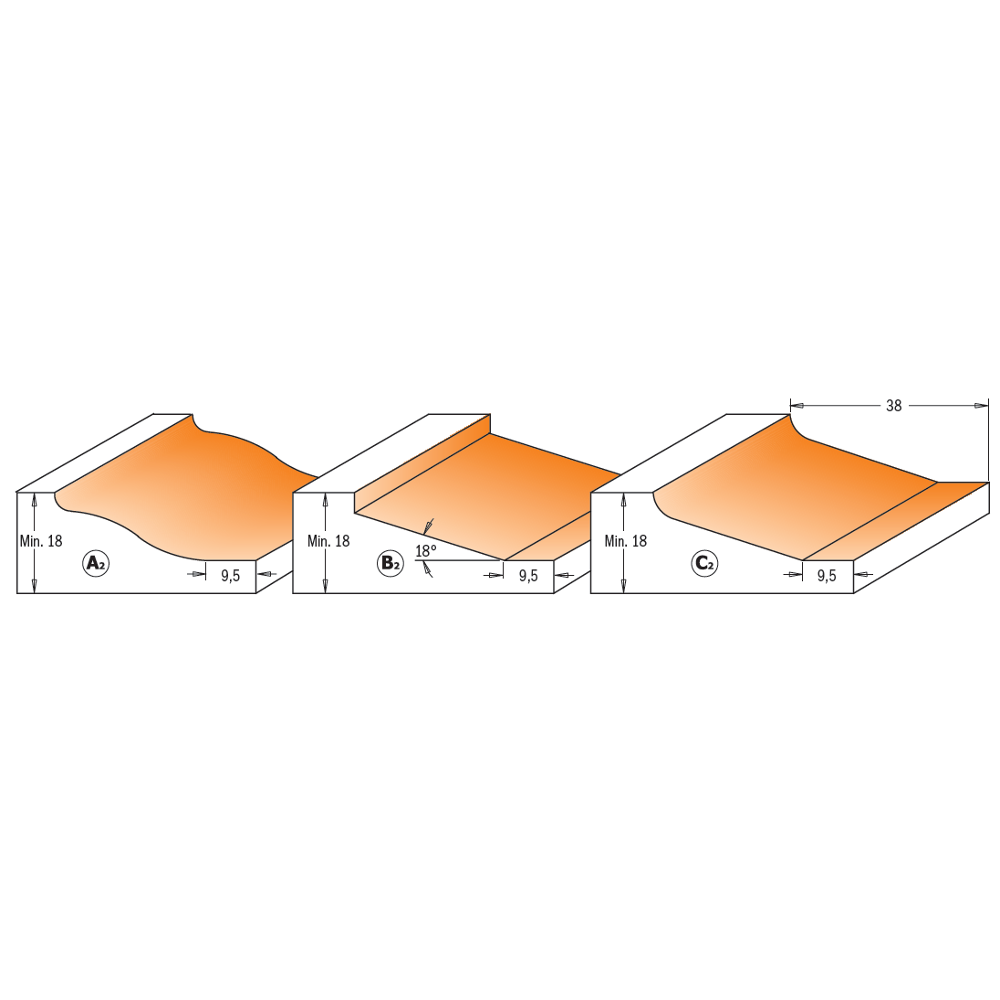

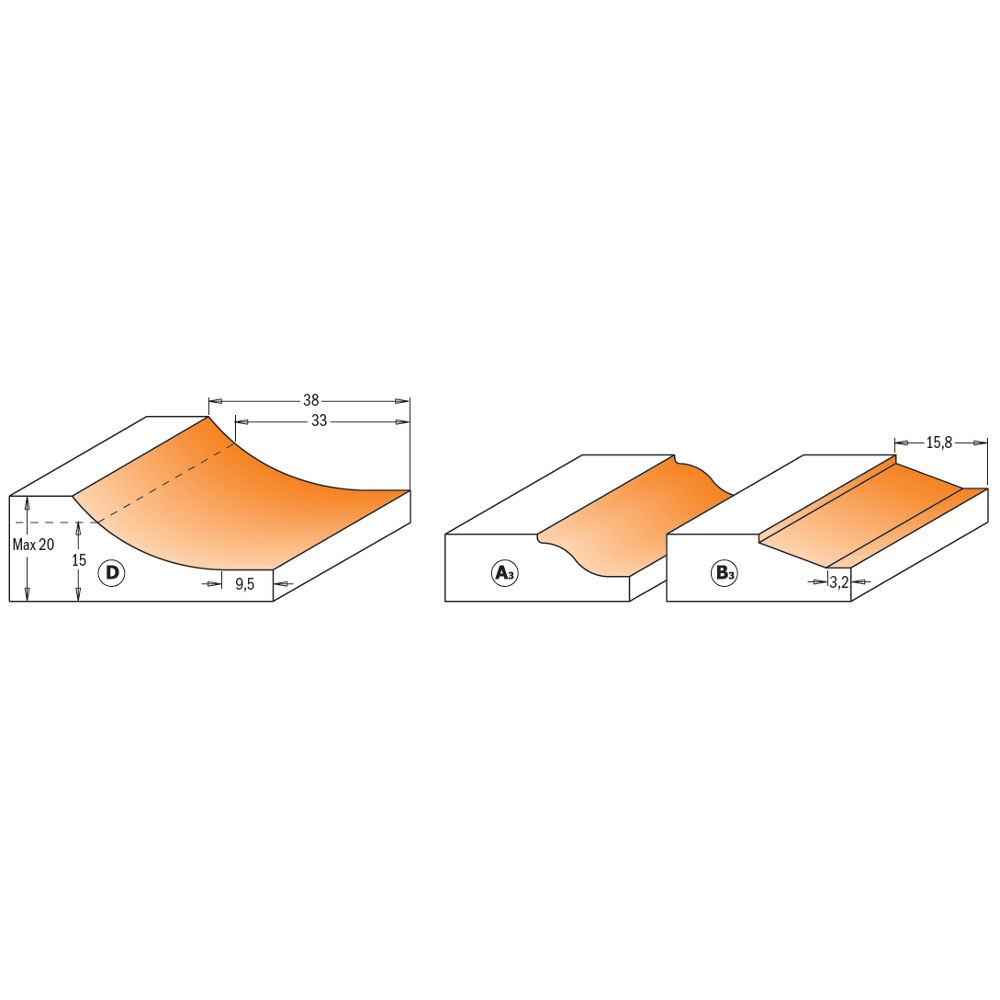

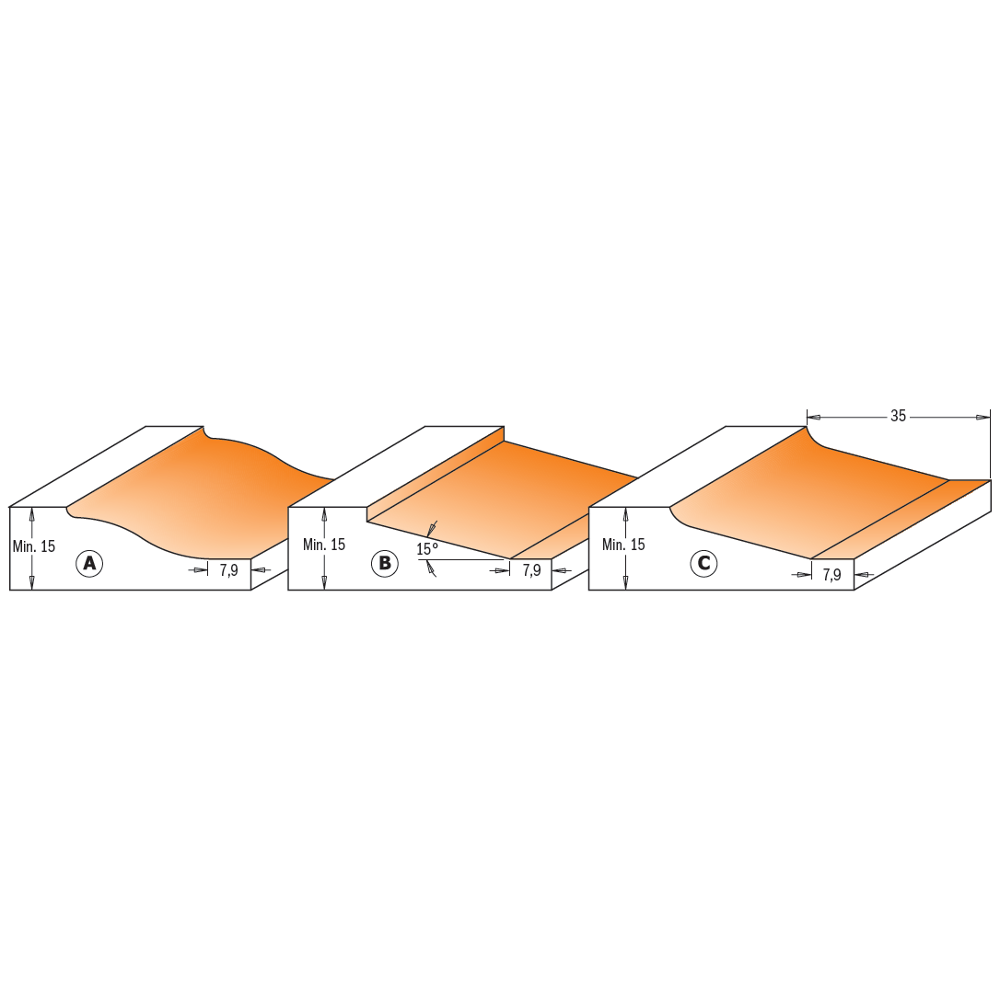

MORE PROFILE DRAWINGS AVAILABLE IN THE PHOTO GALLERY.
