Description

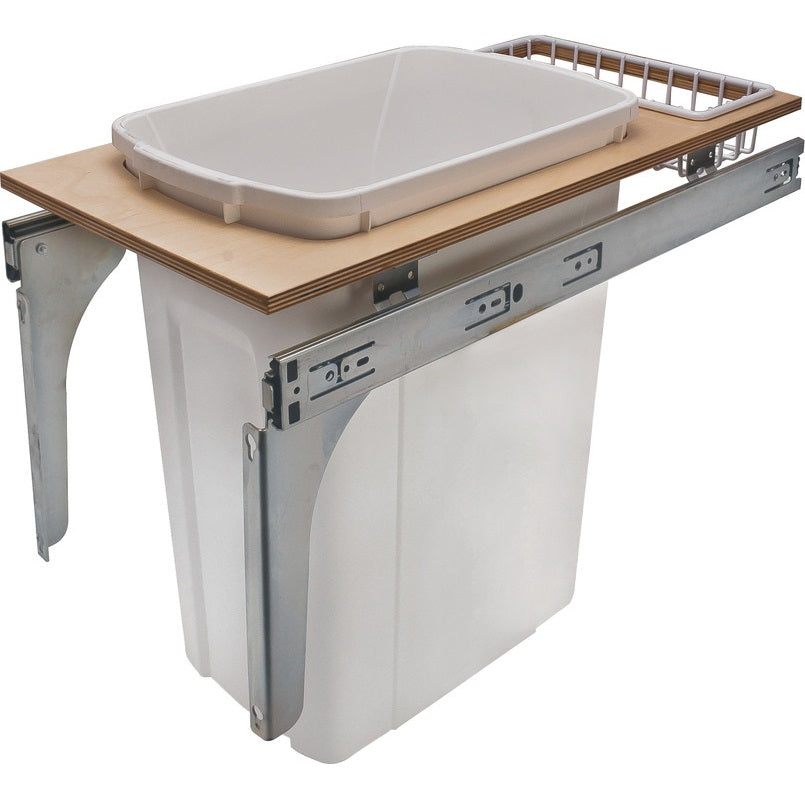

NEW white polymer removable bins and optional lids slide out on heavy-duty, precision ball bearing slides with overtravel
Made of multi-ply birch veneered plywood with soft radius edges for safety and comfort
Door-mount brackets include six-way adjustability for precise door alignment and easy installation

Specifications

Features: Removable bins and optional lids slide out on heavy-duty, precision slides
Type of pull out: Heavy-duty, precision ball bearing slides with overtravel
Mounting: Side Mounted
Depth: (22 1/2") 572 mm
Load Bearing Capacity: (80 lbs.) 36 kg
Material: Birch Veneered Plywood/Steel, anochrome; Bins: plastic
Finish: Anochrome
Color: White

Fulfill

Add to wishlist

SKU: SKU: HA-503.12.722

$218.40

~~$273.00~~ $218.40

Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.

Item typically ships within 1-2 business days . (Minimum order quantity: 1)

Documents

TCH Furniture Cabinetry Hardware 2017 Product Page 3.32

NEW white polymer removable bins and optional lids slide out on heavy-duty, precision ball bearing slides with overtravel
Made of multi-ply birch veneered plywood with soft radius edges for safety and comfort
Door-mount brackets include six-way adjustability for precise door alignment and easy installation

Features: Removable bins and optional lids slide out on heavy-duty, precision slides
Type of pull out: Heavy-duty, precision ball bearing slides with overtravel
Mounting: Side Mounted
Depth: (22 1/2") 572 mm
Load Bearing Capacity: (80 lbs.) 36 kg
Material: Birch Veneered Plywood/Steel, anochrome; Bins: plastic
Finish: Anochrome
Color: White
