Specifications
Specifications
- Voltage: 24V
- Low Voltage Plug: Loox5 2-pin 24V

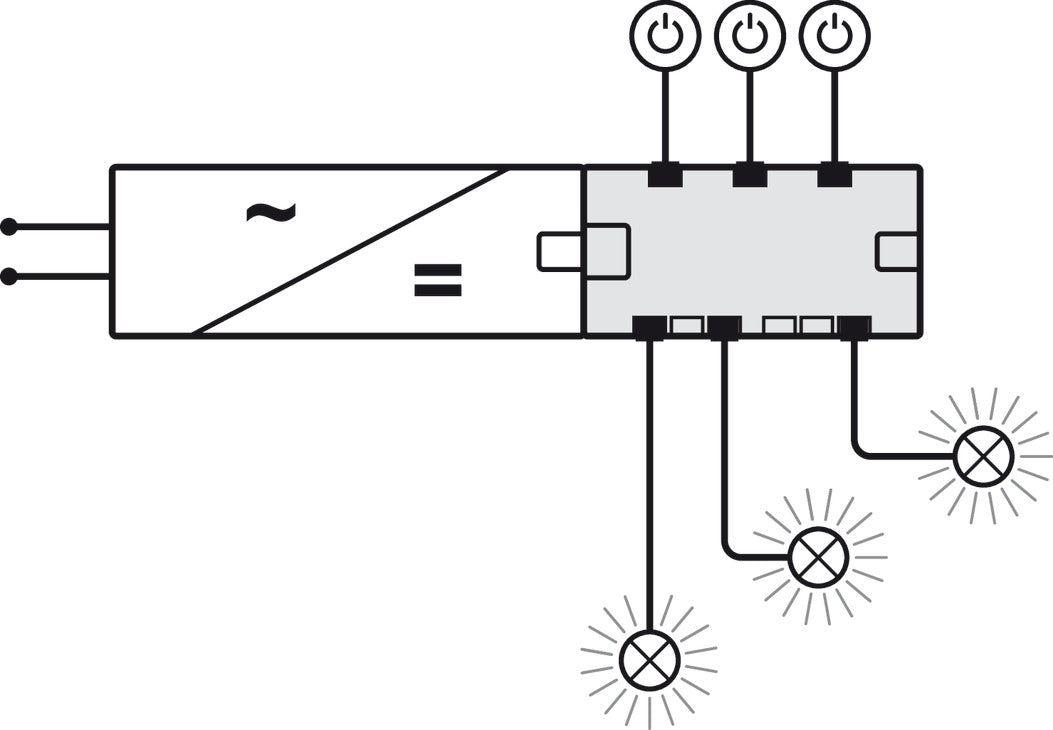

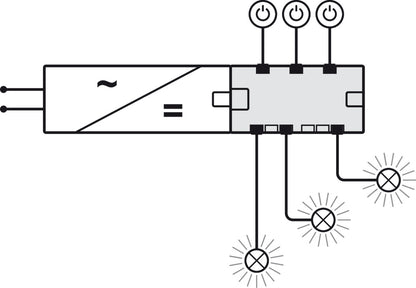

- Input Ports: 1 x plug, Loox5 2-pin 24 V box to box
- Connections: 1 x sockets, Loox5 2-pin 24 V box to box
- Connected Output Ports: 6 x sockets, Loox5 2-pin 24 V
- Control Input Ports: 3 x sockets, Loox Switch
- Power Rating: 120 W
- Color System: Monochrome
- Area of Application: For switching on/off and dimming (0-100%)
- Material: Plastic
- Color/Finish: Black
- Dim. (L x W x H): 120 (4-3/4") x 50 (2") x 16 (5/8") mm
- Switching Function: With multi-switching function
- Memory Function: Yes (also in currentless condition)
- Cable Length: 100 mm
- Standby Power Consumption: 0.26 W
- Ambient Temperature: -20 - 45° C
- Installation: For glue fixing, for screwing

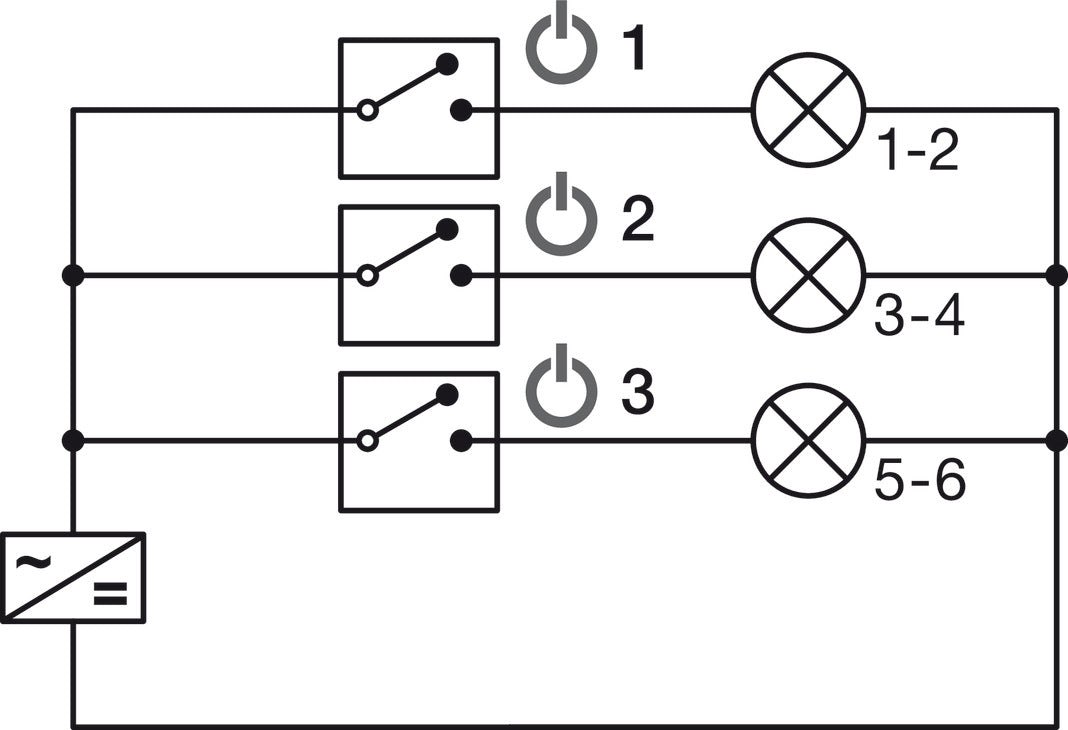

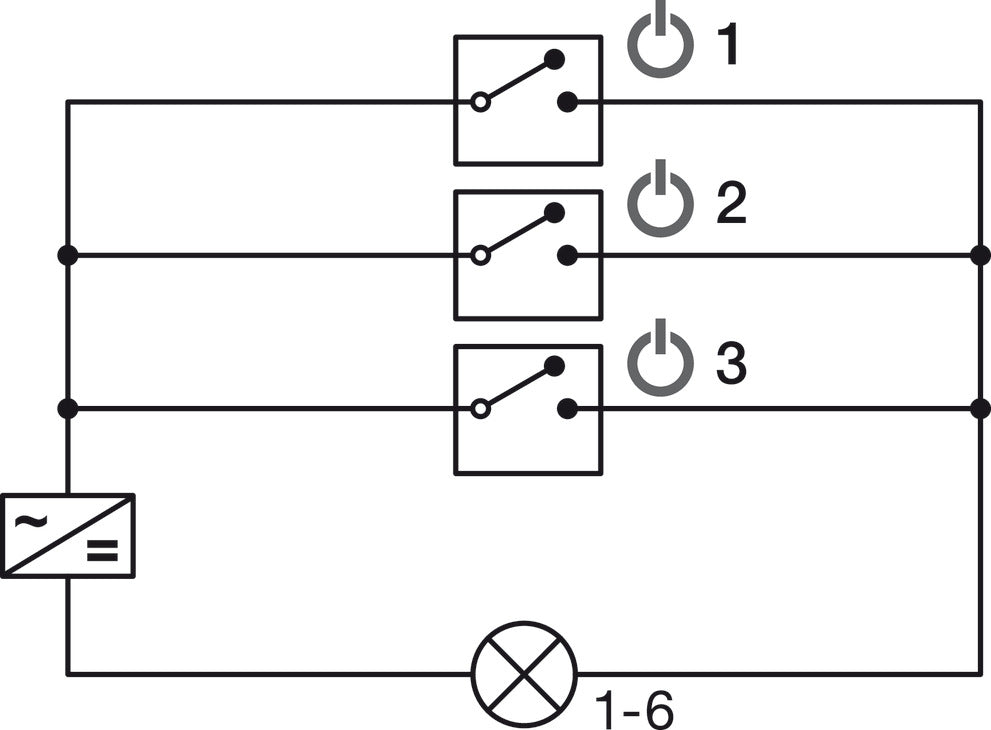

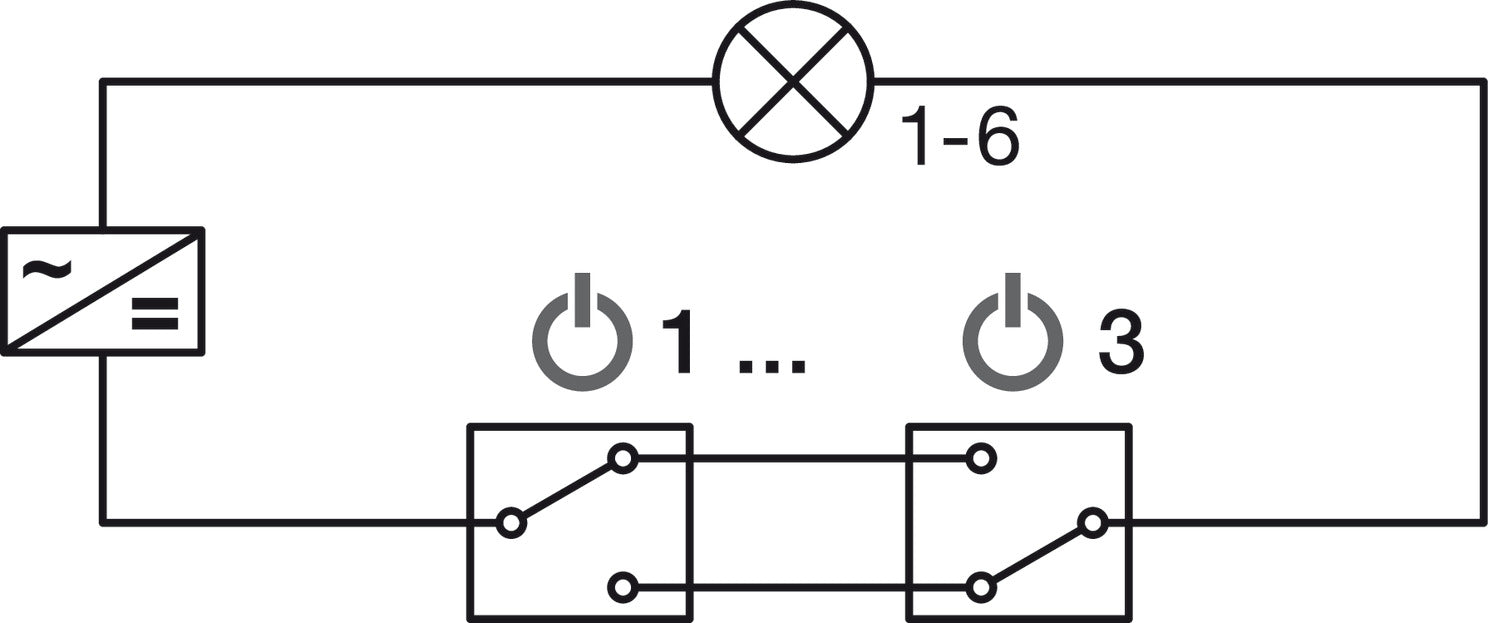

- Operation Modes: 3 operating modes: Group connection (red feedback LED) Switch 1 = outputs 1 and 2 Switch 2 = outputs 3 and 4 Switch 3 = outputs 5 and 6 OR circuit (blue feedback LED) Switching on using switch 1, 2 or 3. To switch off, all switches that are switched on are operated again No dimmer may be used in the OR circuit operation mode! Digital cross-circuit (green feedback LED) Operate one switch (1, 2 or 3) to switch all outputs on/off
