Description

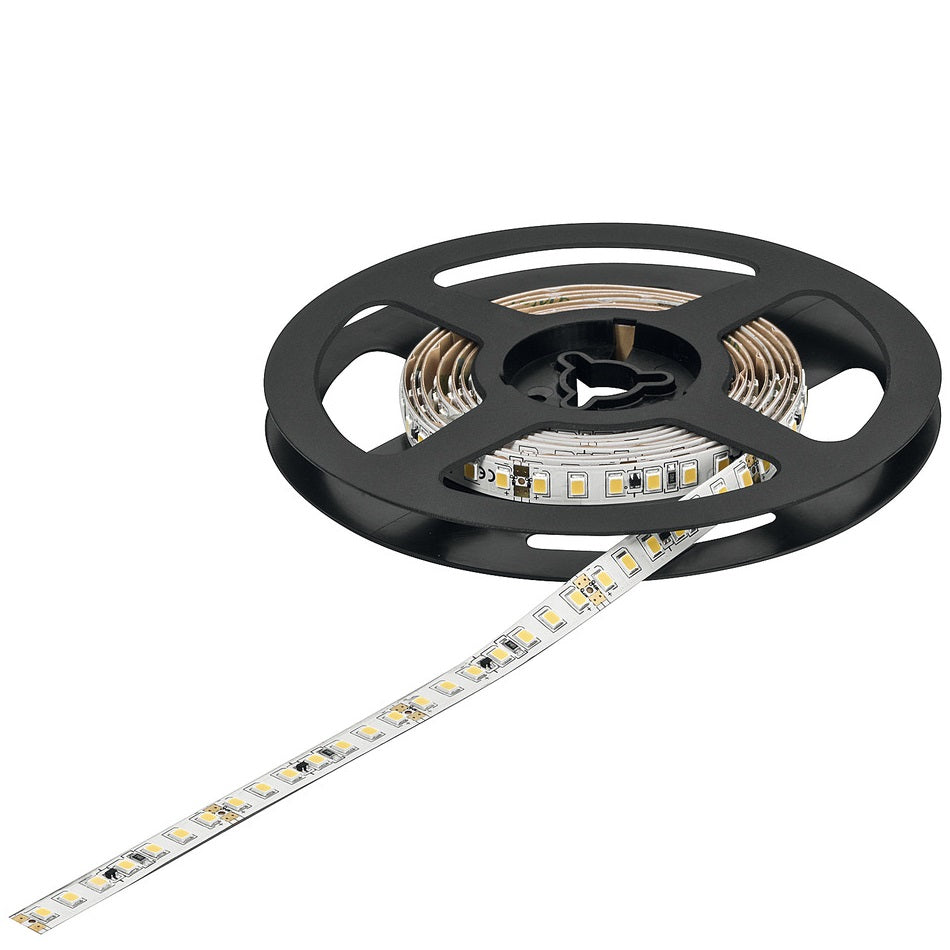

The 3050 linear strip light is a constant current 8 mm wide and is a high-powered and premium option. The light output is considered most suitable for "task lighting". The strip is equipped with high-quality Samsung® LEDs which come with a lifetime use of over 50,000 hours.

Constant current technology achieves uniform brightness over the entire strip light length. Increased life time, higher visual strip length, higher luminous efficacy.

There are some great features to linear light:

Continuous light line with diffused glow (when using a profile to diffuse diodes)
Minimalistic design
Virtually invisible, glare-free light source
Easy installation

What is the difference between the 3050 LED strip light and 3051/3052 LED strip lights?

The 3050 LED strip light, 3051 LED strip light, and 3052 LED strip light are great for projects that need a large amount and the highest quality of lumen output. The main differences are below:

The 3050 LED strip light outputs 1010 lx at 500 mm.
The 3051 LED strip light outputs 1400 lx at 500 mm.
The 3052 LED strip light outputs 1840 lx at 500 mm.

Keep in mind the power lead for this item needs to be ordered separately.

Loox lights and drivers are "suitable for use within closet storage spaces".

Aluminum profile recommended from 9.6 W/m.

3050 Strip Light Output Diagram

3050 Strip Information

Length of Contact Surface (P) = 3 mm (1/8")

Section Length (C) = 50 mm (2")

Max. Strip Length = 9 m (244-1/8")

Loox5 LED Strip Light Connection Video

Specifications

Voltage: 24V
Dimmable: Yes
Material: Plastic
Color: White
Width: 8 mm (5/16")
Height: 1.3 mm (1/16")
Life time L80/B10: > 70000 h
Energy Efficiency Class: A+
Degree of Protection: IP20

DISCONTINUED

Hafele Loox5 3050 LED Strip Light

SKU: SKU: HA-833.76.362

$232.00

~~$290.00~~ $232.00

Sold out

Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.

Item typically ships within 1-2 business days . (Minimum order quantity: 1)

Returns: Items may be returned within 14 days. A 25% restocking fee applies.

Full policy →

Documents

Loox5 LED Strip Light Technical Data
