Description

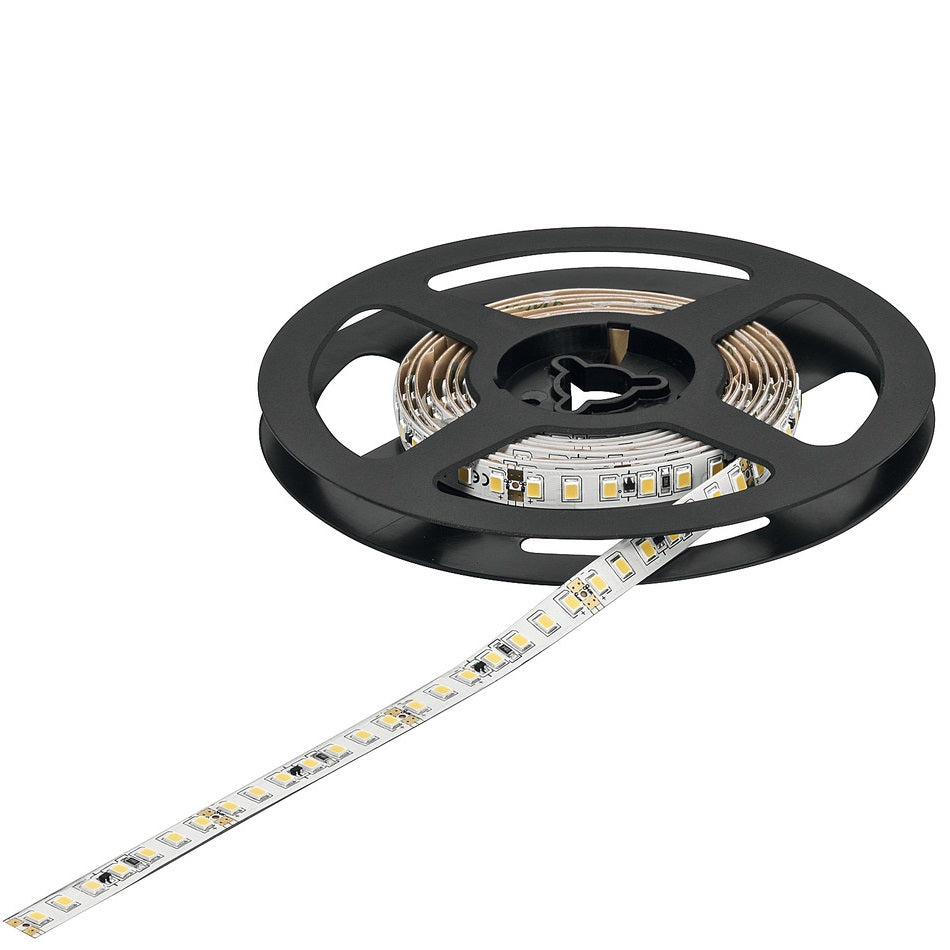

The 3052 linear strip light is a constant current 8 mm wide and is a high-powered and premium option. The light output is considered most suitable for "task lighting". The strip is equipped with high-quality Samsung® LEDs which come with a lifetime use of over 50,000 hours.
Constant current technology achieves uniform brightness over the entire strip light length. Increased life time, higher visual strip length, higher luminous efficacy.
There are some great features to linear light:
- Continuous light line with diffused glow (when using a profile to diffuse diodes)
- Minimalistic design
- Virtually invisible, glare-free light source
- Easy installation
What is the difference between the 3052 LED strip light and 3050/3051 LED strip lights?
The 3052 LED strip light, 3050 LED strip light, and 3051 LED strip light are great for projects that need a large amount and the highest quality of lumen output. The main differences are below:
- The 3050 LED strip light outputs 1010 lx at 500 mm.
- The 3051 LED strip light outputs 1400 lx at 500 mm.
- The 3052 LED strip light outputs 1840 lx at 500 mm.
Keep in mind the power lead for this item needs to be ordered separately.
Loox lights and drivers are "suitable for use within closet storage spaces".
Aluminum profile recommended from 9.6 W/m.
3052 Strip Light Output Diagram
3052 Strip Information
Length of Contact Surface (P) = 3 mm (1/8")
Section Length (C) = 50 mm (2")
Max. Strip Length = 4.6 m (181-1/8")
Loox5 LED Strip Light Connection Video
Specification
- Voltage: 24V
- Dimmable: Yes
- Material: Plastic
- Color: White
- Width: 8 mm (5/16")
- Height: 1.3 mm (1/16")
- Life time L80/B10: > 70000 h
- Energy Efficiency Class: A+
- Degree of Protection: IP20
