Specifications
Specifications
- Area of Application: For Bluetooth® wireless control of lights in a Häfele Connect Mesh network
- Type of Battery: Lithium; replaceable CR2032

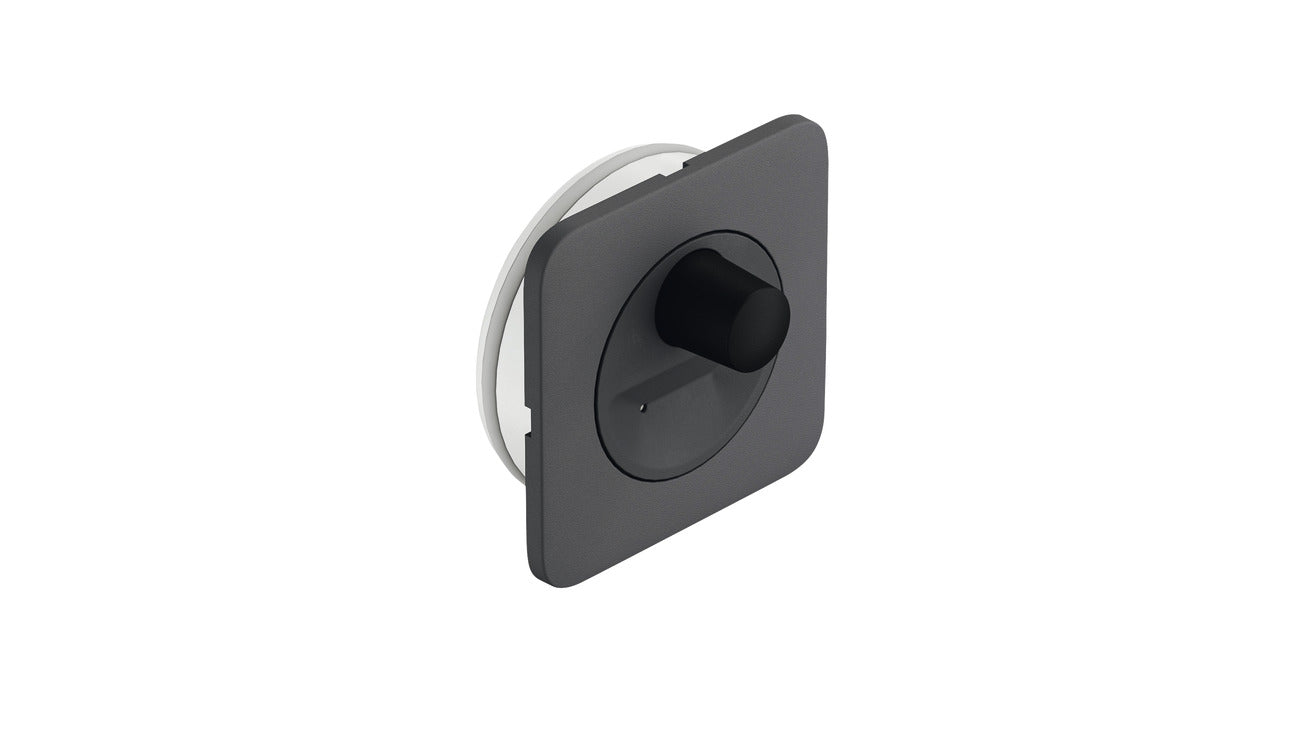

- Product Type: Motion Detector
- Switching Function: On/Off, Dawn threshold value
- Installation Reference: Recess in drilled hole or surface mount with supplied switch housing
- Signal Transmission: Bluetooth®
- Certification of Independent Testing Institutes: VDE
- International Certifications: USA FCC, Japan JATE TELEC MIC, Great Britain UKCA
- Protection Class: III
- Degree of Protection: IP20
- Ambient Temperature: -20 - 35 °C
- Switch Dim. (L x W x H): 43 (1-11/16") x 43 (1-11/16") x 10 (3/8") mm

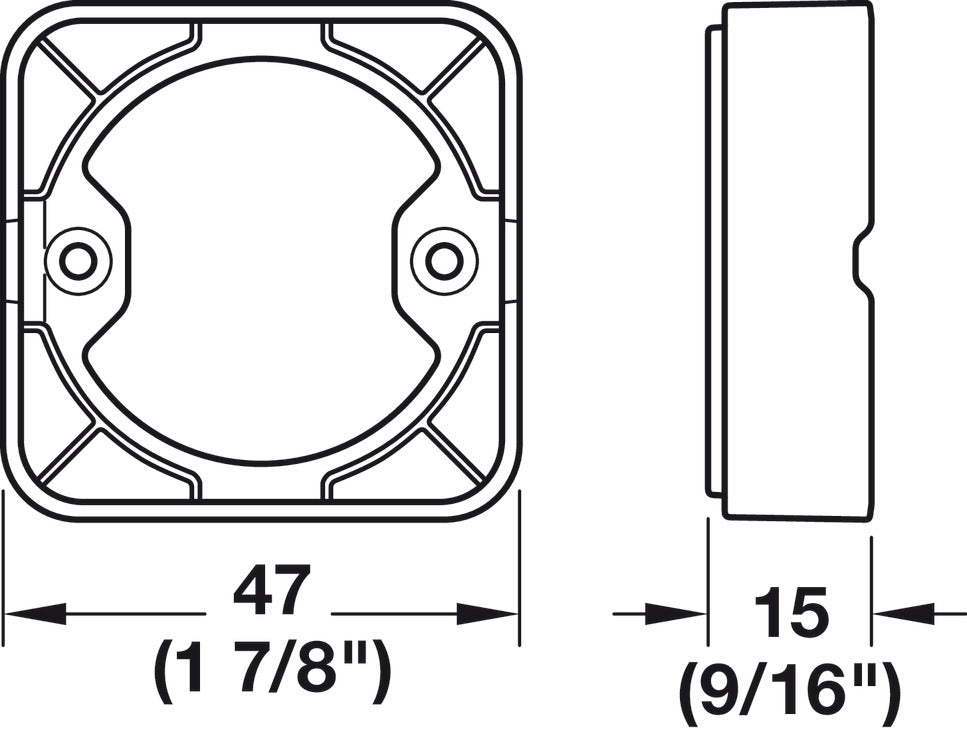

- Dim. w/ Housing (L x W x H): 47 (1-7/8") x 47 (1-7/8") x 15 (9/16") mm
- Material: Plastic
- Installation: For screwing, for mounting in drilled hole and for clamp fixing
- Drill Hole Ø: 1-5/8"

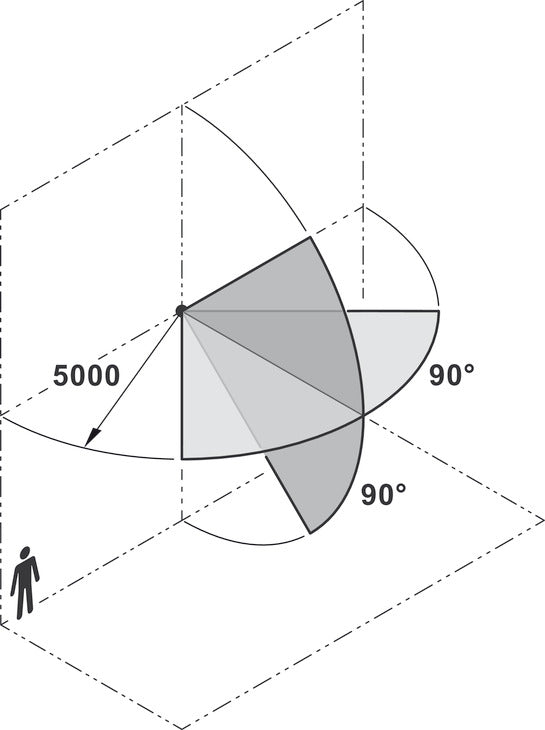

- Sensor Range: 5 m
- Sensor Angle: 90°
- Vertical Sensor Bracket: 90°
