Specifications

  • Voltage: 24V
  • Low Voltage Plug: Loox5 2-pin 24V
  • Input Ports: 1 x plug, Loox5 2-pin 24 V box to box
  • Connections: 4 x sockets, Loox5 2-pin 24 V box to box
  • Connected Output Ports: 4 x sockets, Loox5 2-pin 24 V
  • Power Rating: 72 W
  • Current Carrying Capacity: 3 A
  • Color System: Monochrome
  • Dim. (L x W x H): 150 (4-1/8") x 50 (2") x 16 (5/8") mm
  • Area of Application: For switching on/off, dimming (0-100%)
  • Suitable for: For monochrome LED lights
  • Version: 4-port series; for Monochrome lights
  • Material: Plastic
  • Color/finish: Black
  • Control Channels: 4
  • Number of controls for each installation max.: 4
  • Distance between controls max.: 10 m
  • Standby Power Consumption: 0.5 W
In stock, 2 units

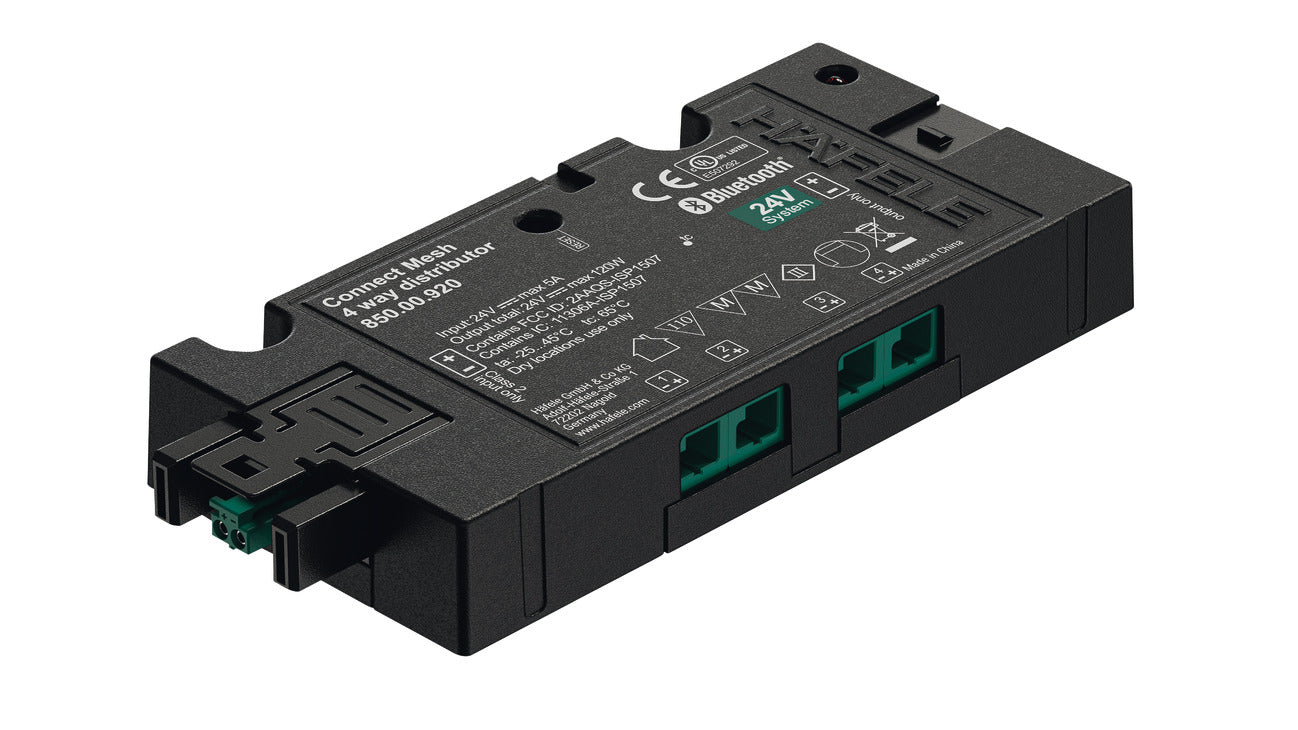

Hafele Loox5 Connect Mesh Eco Distributor for Monochrome, 4-port, 24V

Hafele Loox5 Connect Mesh Eco Distributor for Monochrome, 4-port, 24V

Add to wishlist Add to wishlist

SKU: HA-850.00.920

$75.20
$94.00 $75.20
In Stock
Active stock item in main warehouse.
Item should be readily available within quantity shown. If needing more quantity, the item will typically ship within 2-5 business days . (Minimum order quantity: 1)

Specifications

  • Voltage: 24V
  • Low Voltage Plug: Loox5 2-pin 24V
  • Input Ports: 1 x plug, Loox5 2-pin 24 V box to box
  • Connections: 4 x sockets, Loox5 2-pin 24 V box to box
  • Connected Output Ports: 4 x sockets, Loox5 2-pin 24 V
  • Power Rating: 72 W
  • Current Carrying Capacity: 3 A
  • Color System: Monochrome
  • Dim. (L x W x H): 150 (4-1/8") x 50 (2") x 16 (5/8") mm
  • Area of Application: For switching on/off, dimming (0-100%)
  • Suitable for: For monochrome LED lights
  • Version: 4-port series; for Monochrome lights
  • Material: Plastic
  • Color/finish: Black
  • Control Channels: 4
  • Number of controls for each installation max.: 4
  • Distance between controls max.: 10 m
  • Standby Power Consumption: 0.5 W
