Description

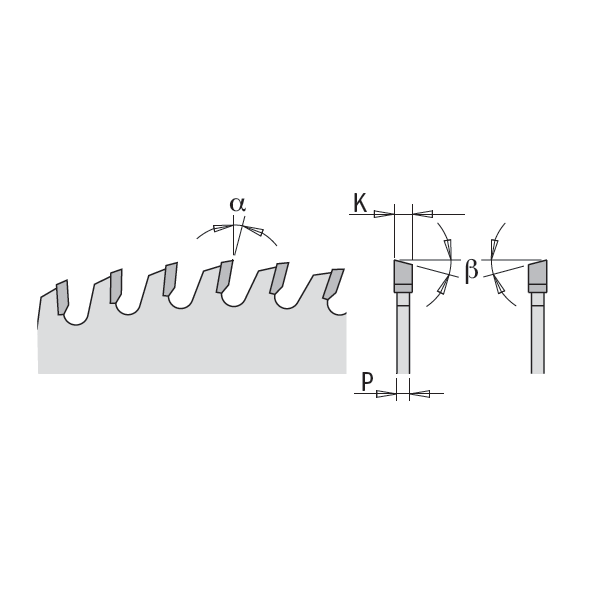

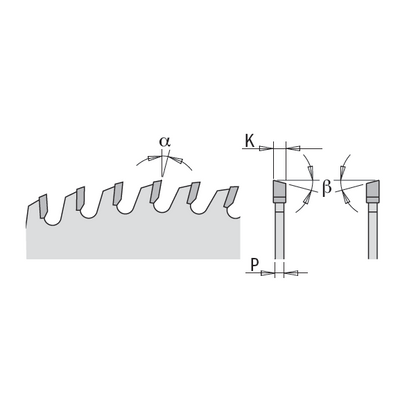

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
285.660.10M COMBI3 250mm 0.126" 30mm 15° ATB 60 0.087" 10°
285.672.12M COMBI3 300mm 0.126" 30mm 15° ATB 72 0.087" 10°
285.660.16M COMBI3 400mm 0.138" 30mm 15° ATB 60 0.098" 10°

TECHNICAL DETAILS OF CARBIDE TEETH:

  • Teeth height mm: 8
  • CHROMIUM ISO grade: KCR06
  • Hardness (HV10): 1.930
  • Transverse rupture strength (N/mm2): 2.300

APPLICATION

  • Application: for optimal quality crosscuts.
  • Machines: table and sizing saws, portable machines.
  • Material: soft, hard and exotic wood, wood-based panels.
Fulfill

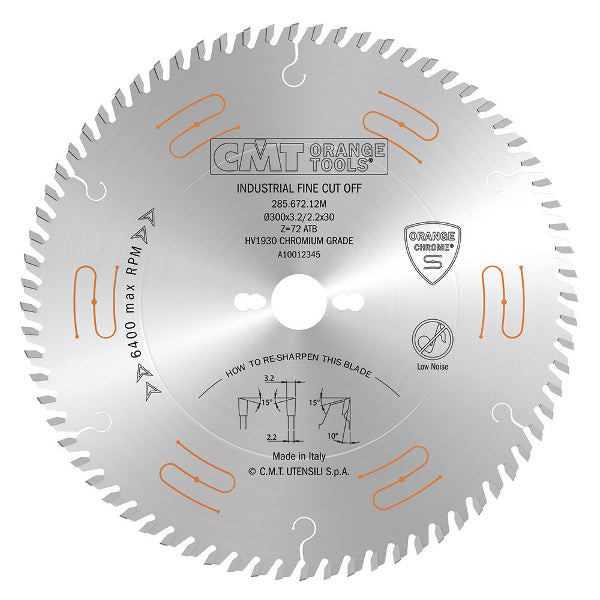

CMT Low Noise & Chrome Coated Circular Saw Blade, With ATB Grind, 285.66-67_M

CMT Low Noise & Chrome Coated Circular Saw Blade, With ATB Grind, 285.66-67_M

Add to wishlist Add to wishlist

SKU: CMT-285.660.10M

$70.13
$103.90 $70.13
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)
Documents
Instructions - CMT Industrial Chrome Coated Saw Blade

Description

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
285.660.10M COMBI3 250mm 0.126" 30mm 15° ATB 60 0.087" 10°
285.672.12M COMBI3 300mm 0.126" 30mm 15° ATB 72 0.087" 10°
285.660.16M COMBI3 400mm 0.138" 30mm 15° ATB 60 0.098" 10°

TECHNICAL DETAILS OF CARBIDE TEETH:

  • Teeth height mm: 8
  • CHROMIUM ISO grade: KCR06
  • Hardness (HV10): 1.930
  • Transverse rupture strength (N/mm2): 2.300

APPLICATION

  • Application: for optimal quality crosscuts.
  • Machines: table and sizing saws, portable machines.
  • Material: soft, hard and exotic wood, wood-based panels.
