Description
Description

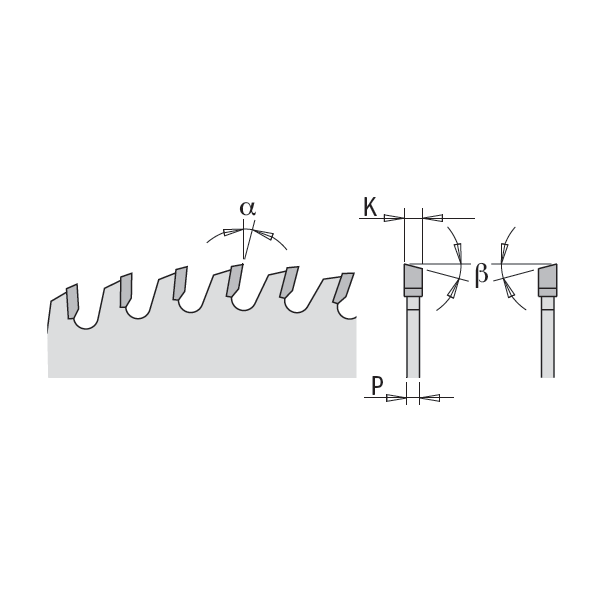

| SKU | Pin Hole (FT) | Diameter (D) | Kerf Thickness (K) | Bore Diameter (B) | Type of Grind (β) | Number of Cutting Edges (Z) | Plate Thickness (P) | Hook Angle (α) |
|---|---|---|---|---|---|---|---|---|

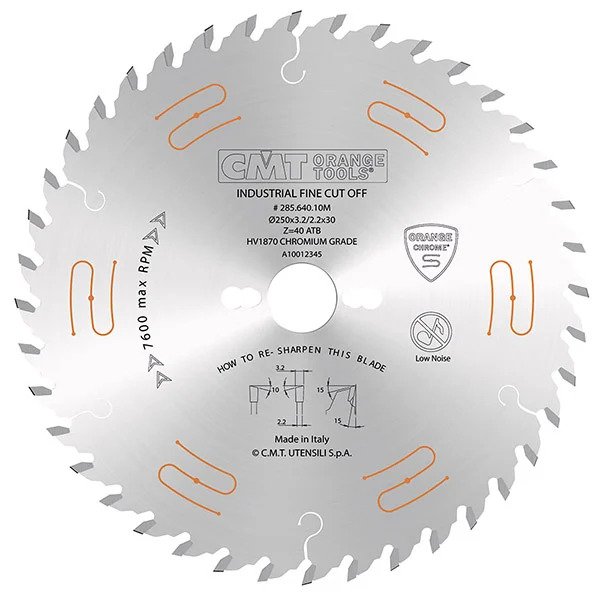

| 285.640.10M | COMBI3 | 250mm | 0.126" | 30mm | 10° ATB | 40 | 0.087" | 15° |

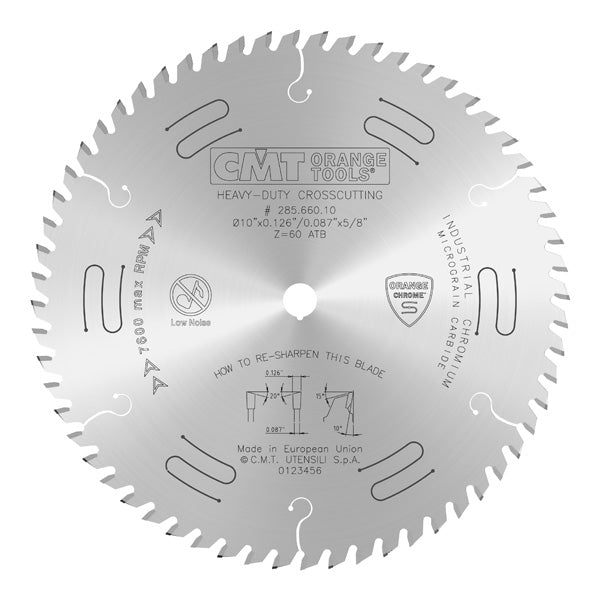

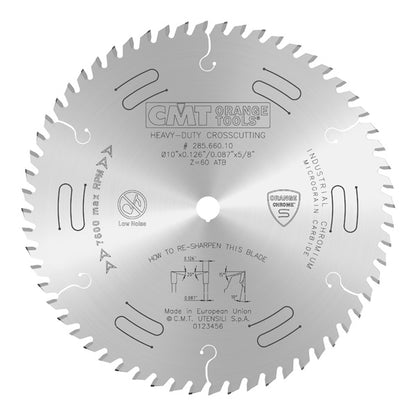

| 285.660.10 | N/A | 10" | 0.126" | 5/8" | 20° ATB | 60 | 0.087" | 10° |
| 285.640.10 | N/A | 10" | 0.126" | 5/8" | HiATB 30° | 40 | 0.087" | 12° |
| 285.648.12M | COMBI3 | 300mm | 0.126" | 30mm | 10° ATB | 48 | 0.087" | 15° |
| 285.672.12 | N/A | 12" | 0.126" | 1" | 20° ATB | 72 | 0.087" | 10° |
| 285.654.14M | COMBI3 | 350mm | 0.138" | 30mm | 10° ATB | 54 | 0.098" | 15° |
- APPLICATION: for optimal quality rip and crosscuts.
- MACHINES: table and special saws, portable machines.
- MATERIAL: soft and hardwood, wood-based panels.
TECHNICAL DETAILS OF CARBIDE TEETH:
- Teeth height mm: 8
- CHROMIUM ISO grade: KCR01
- Hardness (HV10): 1.870
- Transverse rupture strength (N/mm2): 2.200
