Description
Description

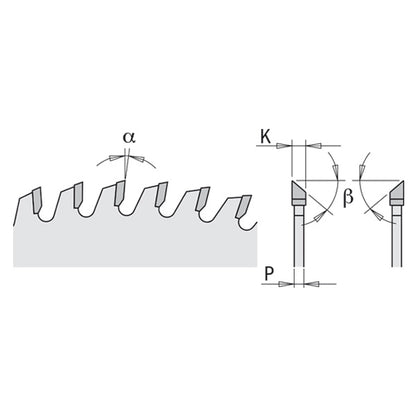

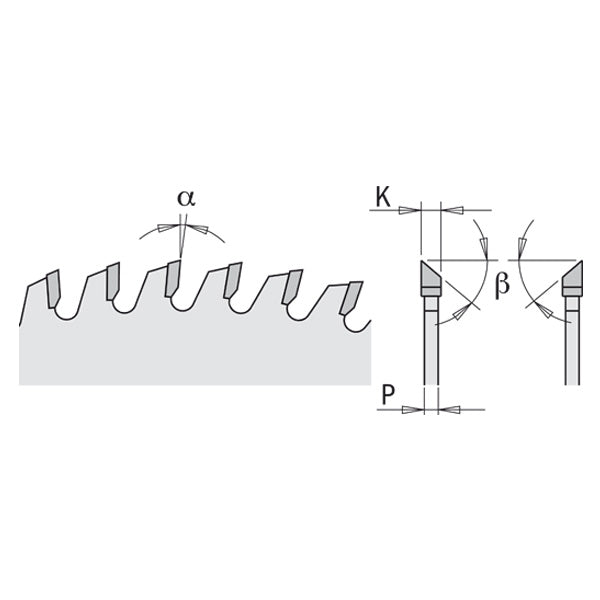

| SKU | Pin Hole (FT) | Diameter (D) | Kerf Thickness (K) | Bore Diameter (B) | Type of Grind (β) | Number of Cutting Edges (Z) | Plate Thickness (P) | Hook Angle (α) |
|---|---|---|---|---|---|---|---|---|

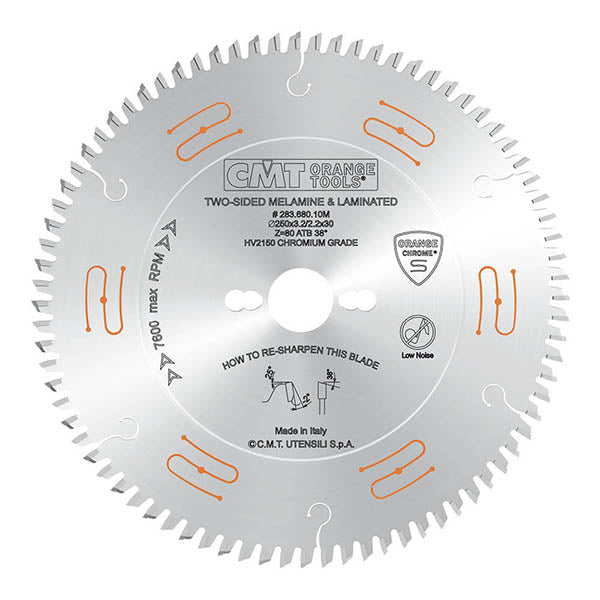

| 283.680.10M | COMBI3 | 250mm | 0.126 | 30mm | 38° ATB | 80 | 0.087 | -2° |

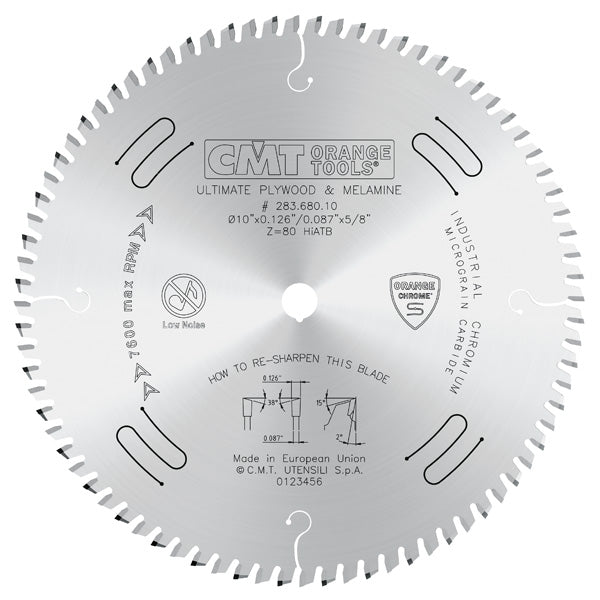

| 283.680.10 | N/A | 10" | 0.126 | 5/8" | HiATB 38° | 80 | 0.087 | 2° |
| 283.696.12M | COMBI3 | 300mm | 0.126 | 30mm | 38° ATB | 96 | 0.087 | 2° |
| 283.696.12 | N/A | 12" | 0.126 | 1" | HiATB 38° | 96 | 0.087 | 2° |
- Teeth height mm: 8
- CHROMIUM ISO grade: KCR05
- Hardness (HV10): 2.150
- Transverse rupture strength (N/mm2): 2.500
APPLICATION
- Application: for sizing cuts, perfect finishing on both sizes of double-sided panels without using scoring blades.
- Machines: table and vertical saws, sizing and portable machines.
- Material: single or double-sided laminated panels with coating and veneered.
