KEY FEATURES:

• Fuji Spray’s Mid-Pressure technology combines rapid application and higher transfer efficiency
• 100% stainless steel fluid passages suitable for water-borne and solvent-based coatings
• Perfect for any type of professional spray finishing
• Optimized air cap design results in a soft spray pattern and outstanding atomization
• Gravity feed compressor spray gun is installed with 1.4mm

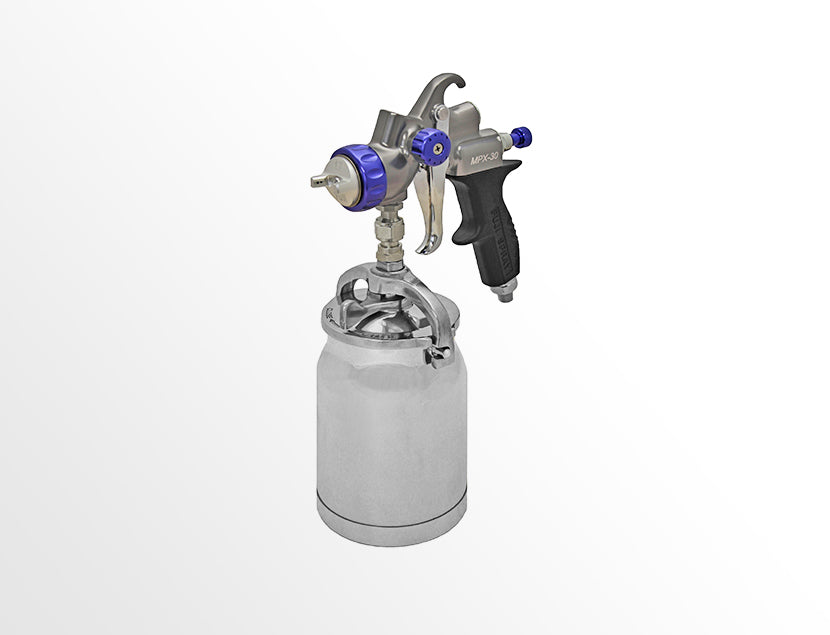

• Siphon feed compressor spray gun is installed with 1.7mm
• Precise side-mounted fan pattern control
• Recommended 13.8cfm at 36 psi

• Air Supply Pressure: 36 PSI at the gun inlet (2.5 bar)
• Air Inlet Size: 1/4" BSP and NPS
• Air Supply Hose Width: 5/16" ID
• Fluid Passages: Stainless Steel
• Fluid Coupler (Siphon): 3/8" x 19P
• Fluid Coupler (Gravity): M 16 x 1.5P
• Air Consumption: 13.8cfm (390L/min)
• Standard Air Cap Set (Siphon): 1.7mm
• Standard Air Cap Set (Gravity): 1.4mm
• Gun Weight (without Cup): 503 grams
