Description

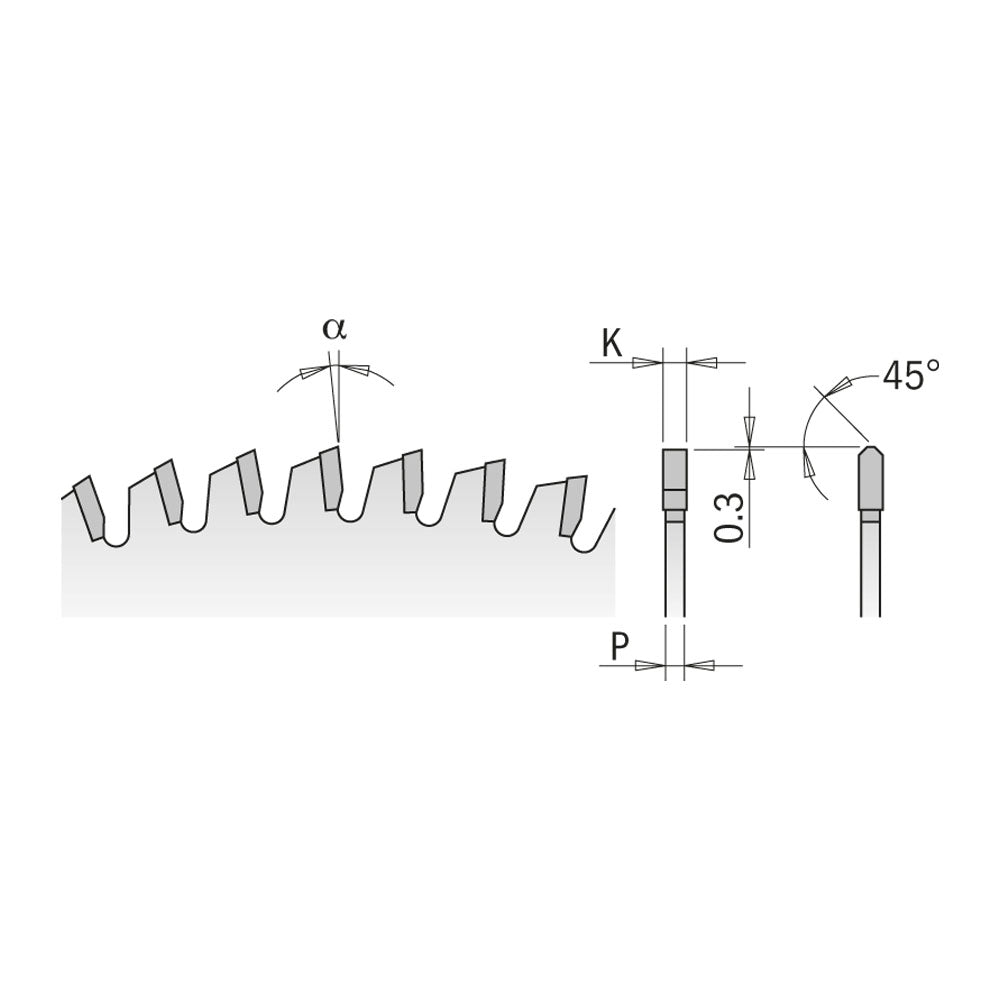

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
296.160.56H 2/6/32 160mm 0.086 20mm TCG 56 0.063 -6°
296.210.64M 2/7/42 8-1/4" 0.110 30mm TCG 64 0.086 -6°
297.080.11M 2/10/60+2/7/42 10-1/4" 0.110 30mm TCG 80 -6°

  • Teeth height 296 series mm: 6
  • Teeth height 297 series mm: 8
  • ISO Grade: K10
  • Hardness (HV10): 1.765
  • Transverse rupture strength (N/mm2): 2.150

Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.

SERIES 296 - 297.064.09M - 297.064.11M - 297.096.13M

APPLICATION

  • Application: for cutting and dividing tubes, drawn products and solid blocks.
  • Machines: single or double mitre saws, radial saws. Recommended use with saw blades over the workpiece. Use series 296 for portable machines.
  • Material: aluminium, brass, copper alloys, plastic, composite material, melamine and laminated panels.

Warning: it is recommended to use a liquid lubricant. Wax stick for lubrication NOT RECOMMENDED.

Fulfill

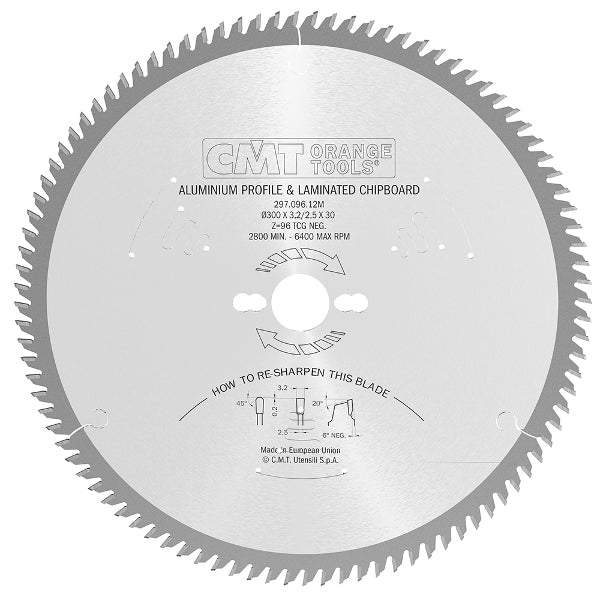

CMT Non-Ferrous Metal and Laminated Panel Circular Saw Blade

CMT Non-Ferrous Metal and Laminated Panel Circular Saw Blade

Add to wishlist Add to wishlist

SKU: SKU: CMT-296.160.56H

Regular price $61.90
Regular price $91.70 Sale price $61.90
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)

Description

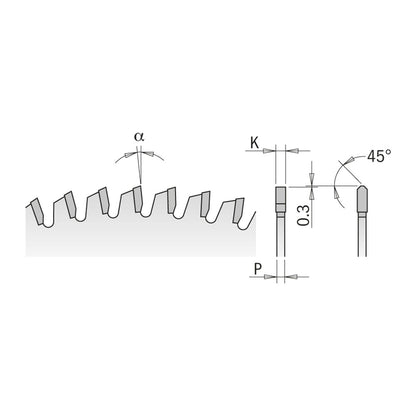

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
296.160.56H 2/6/32 160mm 0.086 20mm TCG 56 0.063 -6°
296.210.64M 2/7/42 8-1/4" 0.110 30mm TCG 64 0.086 -6°
297.080.11M 2/10/60+2/7/42 10-1/4" 0.110 30mm TCG 80 -6°

  • Teeth height 296 series mm: 6
  • Teeth height 297 series mm: 8
  • ISO Grade: K10
  • Hardness (HV10): 1.765
  • Transverse rupture strength (N/mm2): 2.150

Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.

SERIES 296 - 297.064.09M - 297.064.11M - 297.096.13M

APPLICATION

  • Application: for cutting and dividing tubes, drawn products and solid blocks.
  • Machines: single or double mitre saws, radial saws. Recommended use with saw blades over the workpiece. Use series 296 for portable machines.
  • Material: aluminium, brass, copper alloys, plastic, composite material, melamine and laminated panels.

Warning: it is recommended to use a liquid lubricant. Wax stick for lubrication NOT RECOMMENDED.
