Description

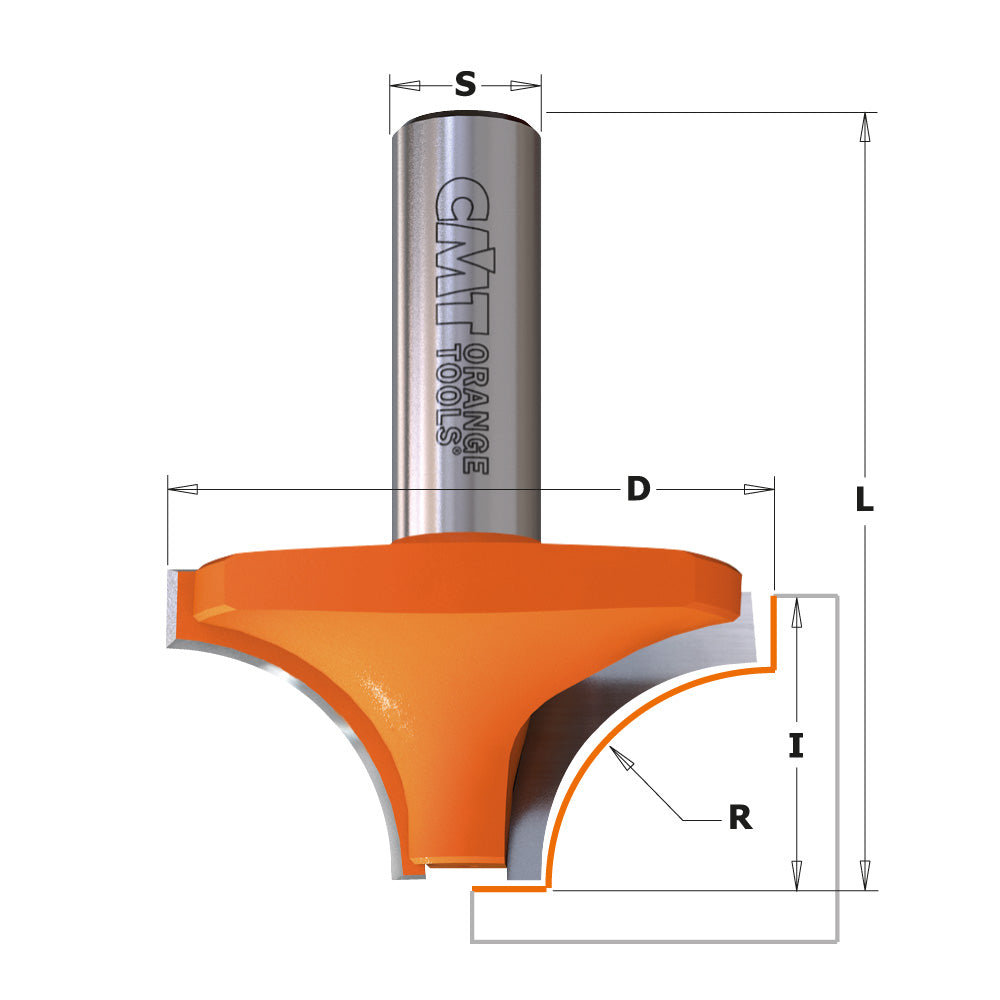

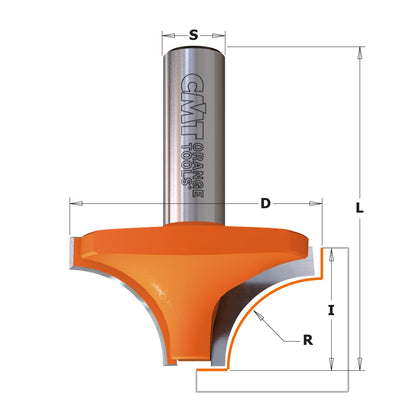

SKU Diameter (D) Cutting Length (I) Total Length (L) Shank Diameter (S) Number of Cutting Edges (Z) Material (MAT) Rotation (RH-LH)
827.050.11 13/16" 15/32" 1-23/32" 1/4" 2 HW RH
827.060.11 29/32" 15/32" 1-23/32" 1/4" 2 HW RH
827.560.11 29/32" 15/32" 1-31/32" 1/2" 2 HW RH
827.595.11 1-1/4" 5/8" 2-1/8" 1/2" 2 HW RH
827.095.11 1-1/4" 5/8" 1-7/8" 1/4" 2 HW RH
827.127.11 1-1/2" 3/4" 2" 1/4" 2 HW RH
827.627.11 1-1/2" 3/4" 2-1/4" 1/2" 2 HW RH
827.660.11 1-3/4" 7/8" 2-3/8" 1/2" 2 HW RH
827.690.11 2" 1" 2-1/2" 1/2" 2 HW RH
827.722.11 2-1/4" 1-1/8" 2-5/8" 1/2" 2 HW RH
827.754.11 2-1/2" 1-5/16" 2-13/16" 1/2" 2 HW RH

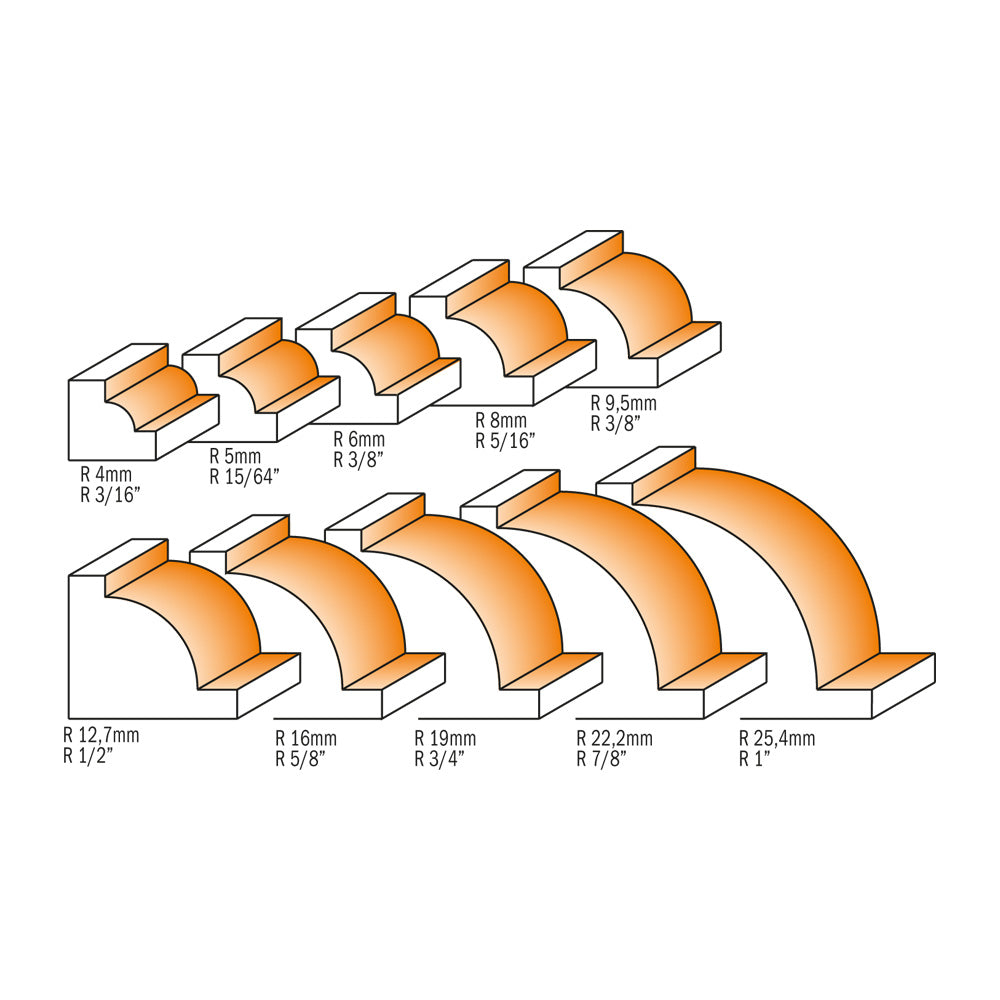

CMT put the work capacity of several different bits all into one. The perfect bit for furniture makers, the CMT ovolo allows you to make beautiful beadwork, edgework and veins. Use these bits on automated router systems or with a fence to produce a wide variety of single and double bead profiles and roundovers like those illustrated below by simply adjusting the height or depth of the cut.

SAFETY TIPS: PAY PARTICULAR ATTENTION TO NEVER RUSH THE JOB WHEN USING A LARGE PROFILE BIT. MILL PIECES WITH A FENCE MOUNTED ON THE WORK TABLE TO INSURE MAXIMUM PROTECTION.

Fulfill

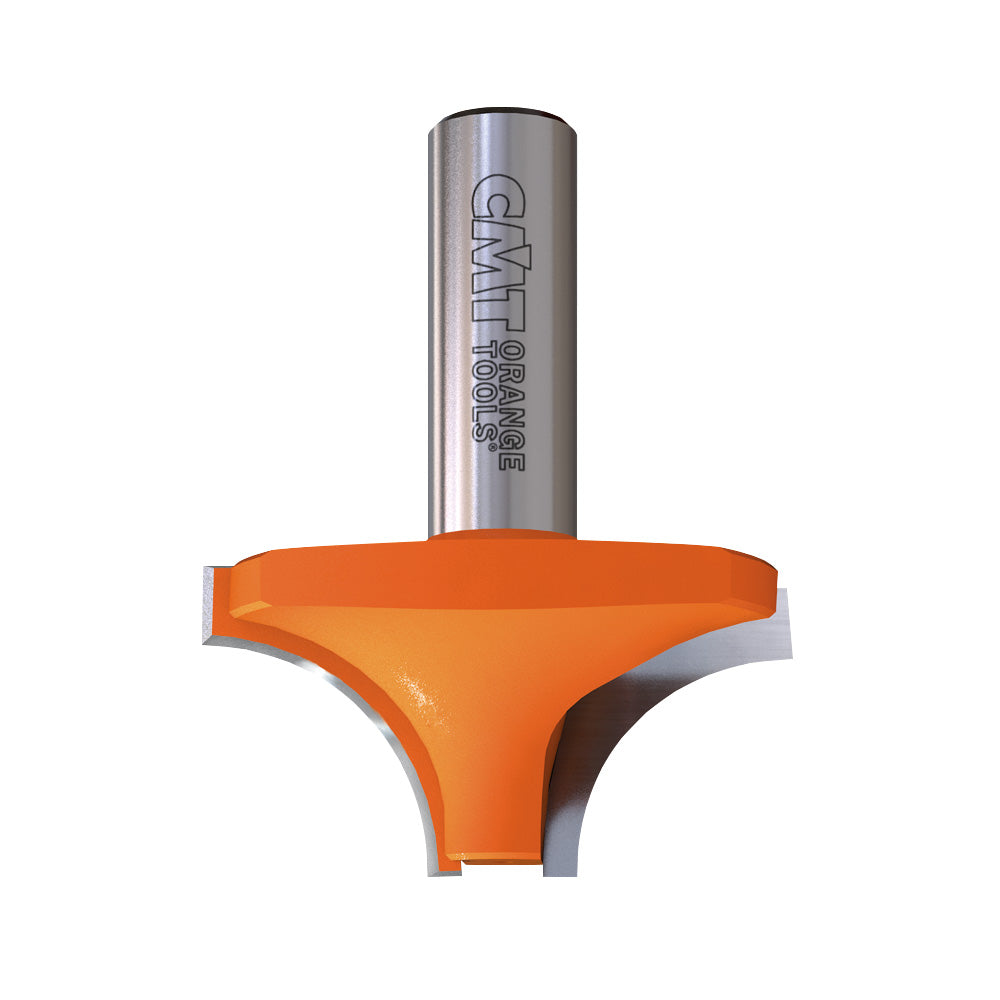

CMT Ovolo Router Bit

CMT Ovolo Router Bit

SKU: CMT-827.050.11

$25.01
$37.05 $25.01
827.050.11
827.050.11827.060.11827.560.11827.595.11827.095.11827.127.11827.627.11827.660.11827.690.11827.722.11827.754.11
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
Full policy →

Description

SKU Diameter (D) Cutting Length (I) Total Length (L) Shank Diameter (S) Number of Cutting Edges (Z) Material (MAT) Rotation (RH-LH)
827.050.11 13/16" 15/32" 1-23/32" 1/4" 2 HW RH
827.060.11 29/32" 15/32" 1-23/32" 1/4" 2 HW RH
827.560.11 29/32" 15/32" 1-31/32" 1/2" 2 HW RH
827.595.11 1-1/4" 5/8" 2-1/8" 1/2" 2 HW RH
827.095.11 1-1/4" 5/8" 1-7/8" 1/4" 2 HW RH
827.127.11 1-1/2" 3/4" 2" 1/4" 2 HW RH
827.627.11 1-1/2" 3/4" 2-1/4" 1/2" 2 HW RH
827.660.11 1-3/4" 7/8" 2-3/8" 1/2" 2 HW RH
827.690.11 2" 1" 2-1/2" 1/2" 2 HW RH
827.722.11 2-1/4" 1-1/8" 2-5/8" 1/2" 2 HW RH
827.754.11 2-1/2" 1-5/16" 2-13/16" 1/2" 2 HW RH

CMT put the work capacity of several different bits all into one. The perfect bit for furniture makers, the CMT ovolo allows you to make beautiful beadwork, edgework and veins. Use these bits on automated router systems or with a fence to produce a wide variety of single and double bead profiles and roundovers like those illustrated below by simply adjusting the height or depth of the cut.

SAFETY TIPS: PAY PARTICULAR ATTENTION TO NEVER RUSH THE JOB WHEN USING A LARGE PROFILE BIT. MILL PIECES WITH A FENCE MOUNTED ON THE WORK TABLE TO INSURE MAXIMUM PROTECTION.
