Description

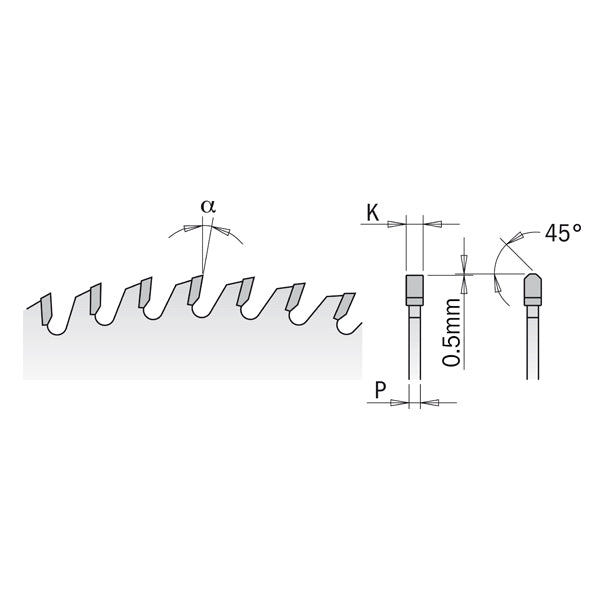

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
282.060.12M COMBI3 300mm 4.4mm 30mm TCG 60 3.2mm 16°
282.060.12W COMBI5 300mm 4.4mm 80mm TCG 60 3.2mm 16°
282.060.12X N/A 300mm 4.4mm 75mm TCG 60 3.2mm 16°
282.072.13J 2/9/100+2/9/110 320mm 4.4mm 65mm TCG 72 3.2mm 16°
282.072.14M COMBI3 350mm 4.4mm 30mm TCG 72 3.2mm 16°
282.072.14T 3/12.5/80 350mm 4.4mm 50mm TCG 72 3.2mm 16°
282.072.14W COMBI5 350mm 4.4mm 80mm TCG 72 3.2mm 16°
282.072.14X 4/15/105+3/7/100 350mm 4.4mm 75mm TCG 72 3.2mm 16°
282.072.14W2 COMBI5 355mm 4.4mm 80mm TCG 72 3.2mm 10°
282.072.14J2 2/9/100+2/9/110 355mm 4.4mm 65mm TCG 72 3.2mm 16°
282.072.15U COMBI7 380mm 4.8mm 60mm TCG 72 3.5mm 16°
282.072.15U2 2/14/100 380mm 4.4mm 60mm TCG 72 3.2mm 15°
282.072.15W COMBI5 380mm 4.4mm 80mm TCG 72 3.2mm 16°
282.072.16M 2/10/60 400mm 4.4mm 30mm TCG 72 3.2mm 16°
282.072.16U 2/11/85 400mm 4.4mm 60mm TCG 72 3.2mm 16°
282.072.16W COMBI5 400mm 4.4mm 80mm TCG 72 3.2mm 16°
282.072.16X 4/15/105 400mm 4.4mm 75mm TCG 72 3.2mm 16°
282.072.17W COMBI5 420mm 4.4mm 80mm TCG 72 3.2mm 15°
282.072.17W2 COMBI5 430mm 4.4mm 80mm TCG 72 3.2mm 16°
282.072.17X 4/15/105 430mm 4.4mm 75mm TCG 72 3.2mm 16°
282.072.18U COMBI7 450mm 4.8mm 60mm TCG 72 3.5mm 16°
282.072.18W2 COMBI5 450mm 4.8mm 80mm TCG 72 3.5mm 16°
282.072.20U 2/11/115 500mm 4.8mm 60mm TCG 72 3.5mm 16°
Y282.072.20W COMBI5 500mm 4.8mm 80mm TCG 72 3.5mm 16°
282.072.22A N/A 550mm 5.2mm 100mm TCG 72 3.5mm 16°

  • Teeth height mm: 8~10
  • CHROMIUM ISO grade: KCR05
  • Hardness (HV10): 2.150
  • Transverse rupture strength (N/mm2): 2.500

APPLICATION

  • Application: for sizing single sheets and multiple panels.
  • Machines: horizontal panel sizing machines.
  • Material: single or double-sided plastic-laminated panels, MDF.
Fulfill

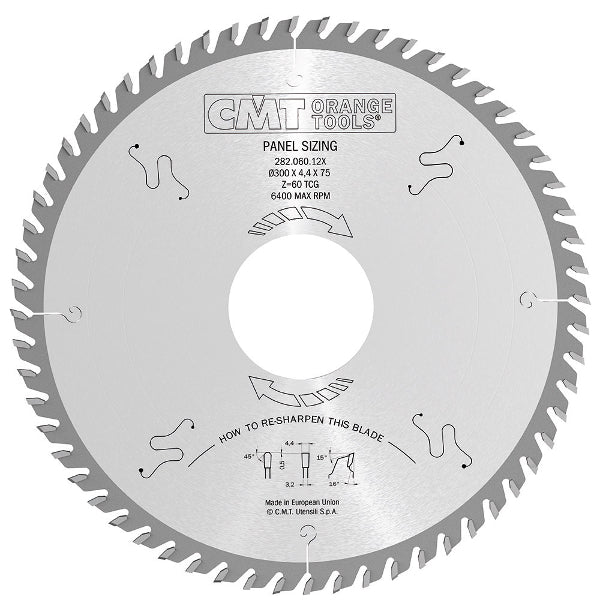

CMT Panel Sizing Circular Saw Blade

CMT Panel Sizing Circular Saw Blade

SKU: CMT-282.060.12M

$165.61
$245.35 $165.61
282.060.12M
282.060.12M282.060.12W282.060.12X282.072.13J282.072.14M282.072.14T282.072.14W282.072.14X282.072.14W2282.072.14J2282.072.15U282.072.15U2282.072.15W282.072.16M282.072.16U282.072.16W282.072.16X282.072.17W282.072.17W2282.072.17X282.072.18U282.072.18W2282.072.20UY282.072.20W282.072.22A
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)
Returns: Items may be returned within 14 days. A 25% restocking fee applies.
Full policy →
Documents
Panel Sizing and Scoring Blades Resharpening Instructions
