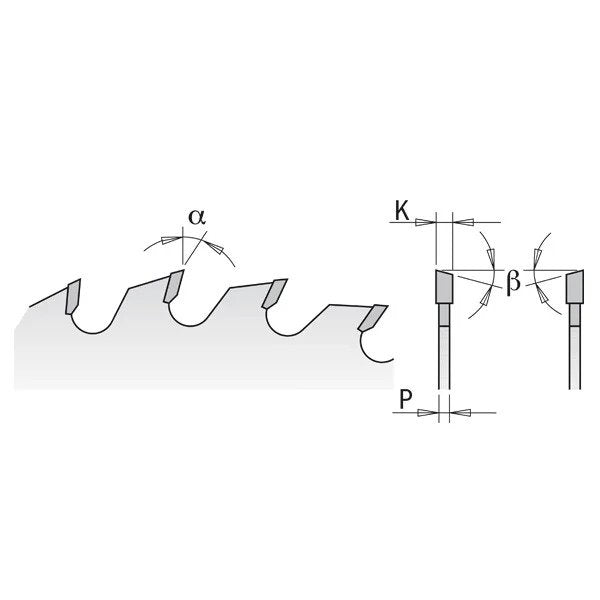

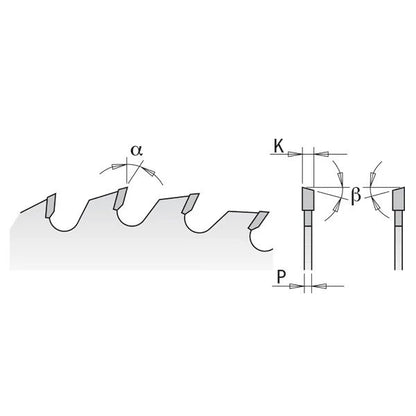

| SKU | Pin Hole (FT) | Diameter (D) | Kerf Thickness (K) | Bore Diameter (B) | Type of Grind (β) | Number of Cutting Edges (Z) | Plate Thickness (P) | Hook Angle (α) |
|---|---|---|---|---|---|---|---|---|
| 294.060.11M | COMBI3 | 260mm | 0.100" | 30mm | 15° ATB | 60 | 0.070" | -5° |
| 294.080.11M | COMBI3 | 260mm | 0.100" | 30mm | 15° ATB | 80 | 0.070" | -5° |
- APPLICATION: for optimal quality rip and crosscuts.
- MACHINES: table and special saws, portable machines.
- MATERIAL: soft and hardwood, wood-based panels.
TECHNICAL FEATURES OF CARBIDE TEETH:
- Teeth height mm: 8~10
- ISO grade: K10
- Hardness (HV10): 1.765
- Transverse rupture strength (N/mm2): 2.150
Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.
Non-low-noise saw blades:
- 285.040.10H
- 285.048.12H
- 285.036.13M
- 291.270.42R
- 294.054.12M
Industrial quality saw blades:
- 285.040.10H
- 285.048.10M
- 285.048.11M
