Description

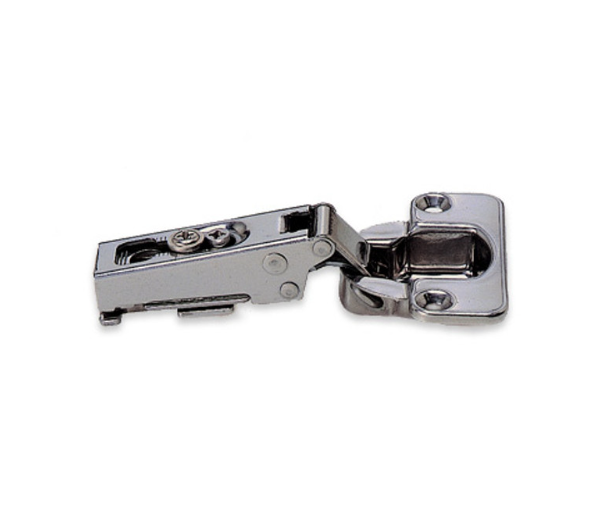

- All-stainless steel cup hinge for superior corrosion resistance
- 3/4" (19mm) full overlay
- Spring loaded for self-closing
- Additional models with different overlay and free-swinging available
Specification
- Material: 304 Stainless Steel
- Finish: Polished
- Weight of Item: 60 grams
- Length or Depth of Item When Closed: 60 mm; 2.375 in
- Length or Depth of Item When Open: 93.4 mm; 3.6875 in
- Height of Item: 54 mm; 2.1875 in
- Width of Item: 38 mm; 1.5 in

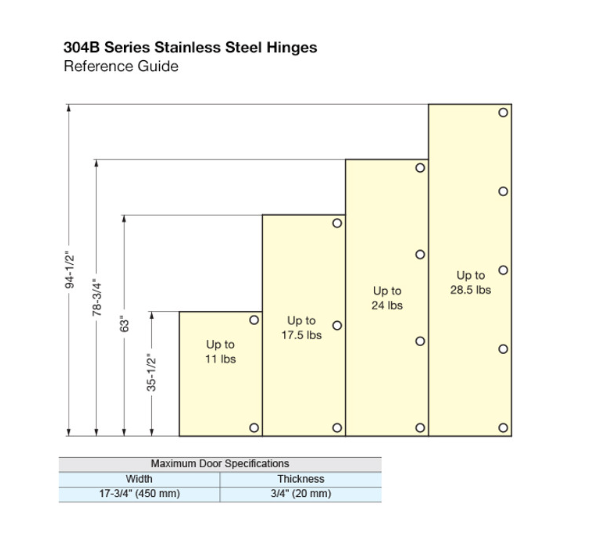

- Load Capacity: (per pair) 5 kg; 11 lbs. (per 3 ea) 8 kg; 17.5 lbs. (per 4 ea) 11 kg; 24 lbs. (per 5 ea) 13 kg; 28.5 lbs.
- Cup Bore Diameter: 35 mm; 1.375 in
- Max. Door Height: 2400 mm; 94.5 in
- Max. Door Width: 450 mm; 17.6875 in
- Max. Door Thickness: 20 mm; 0.8125 in
- Min. Door Thickness: 15 mm; 0.5625 in
- Min. Setback from Edge: 3 mm
- Closing Type: Self Closing
- Max. Opening Angle: 100 degrees
- Fastners Included: Yes; 3.5 Flathead Screw
- Is CA PROP 65 Compliant: No
- Is NSF Compliant: Yes
- IS ROHS Compliant: ROHS 3
