Description

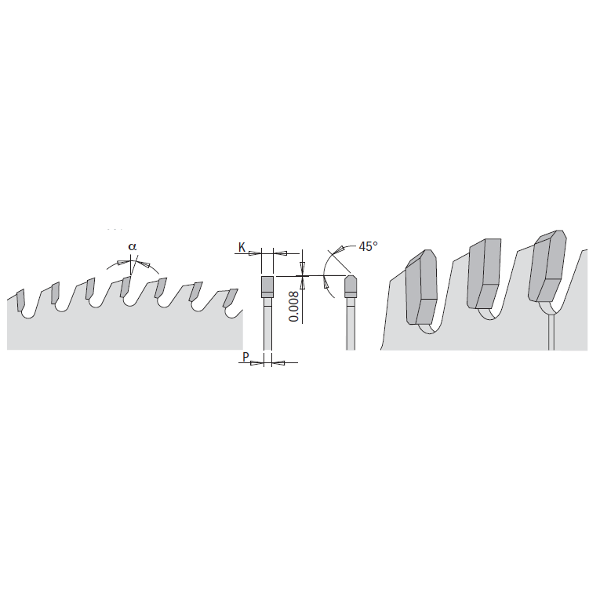

SKU	Pin Hole (FT)	Diameter (D)	Kerf Thickness (K)	Bore Diameter (B)	Type of Grind (β)	Number of Cutting Edges (Z)	Plate Thickness (P)	Hook Angle (α)
284.700.10	N/A	10"	0.110	5/8"	TCG	100	0.087	5°
284.720.12	N/A	12"	0.118	1"	TCG	120	0.098	5°

APPLICATION: for heavy-duty cutting, excellent on thin-walled extrusions, good on thick-walled extrusions.
MACHINES: radial arm saws, miter saws, table and special saws.
MATERIAL: aluminum, brass, copper, PVC and non-ferrous metals.

Fulfill

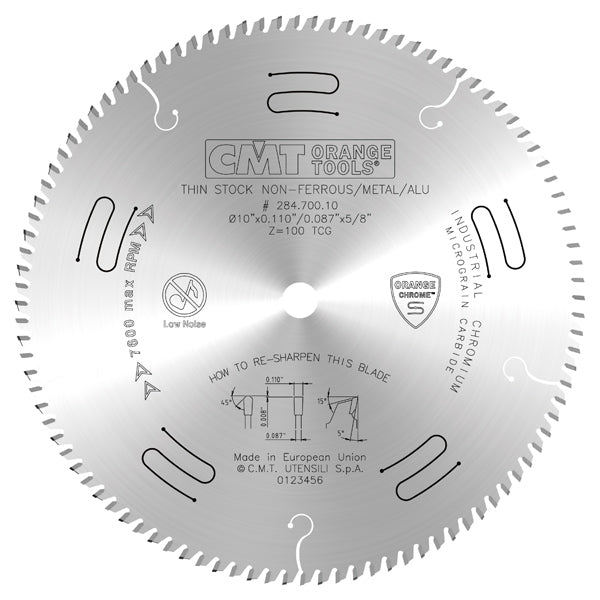

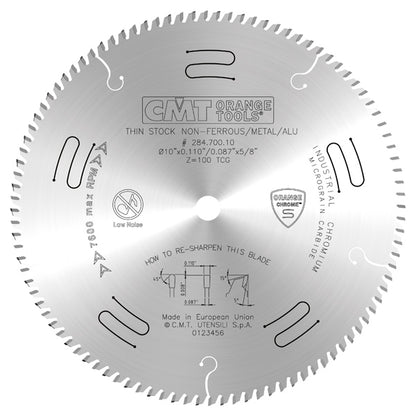

CMT Thin Stock Non-Ferrous Metal Saw Blade, PVC Blades

Add to wishlist

SKU: SKU: CMT-284.700.10

$104.56

~~$154.90~~ $104.56

Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.

Item typically ships within 3-5 business days . (Minimum order quantity: 1)

Documents

Instructions - CMT Industrial Chrome Coated Saw Blade

SKU	Pin Hole (FT)	Diameter (D)	Kerf Thickness (K)	Bore Diameter (B)	Type of Grind (β)	Number of Cutting Edges (Z)	Plate Thickness (P)	Hook Angle (α)
284.700.10	N/A	10"	0.110	5/8"	TCG	100	0.087	5°
284.720.12	N/A	12"	0.118	1"	TCG	120	0.098	5°

APPLICATION: for heavy-duty cutting, excellent on thin-walled extrusions, good on thick-walled extrusions.
MACHINES: radial arm saws, miter saws, table and special saws.
MATERIAL: aluminum, brass, copper, PVC and non-ferrous metals.
