Description

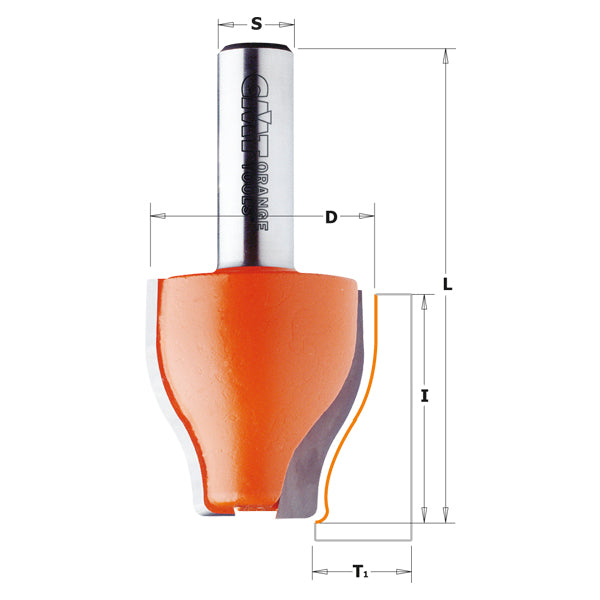

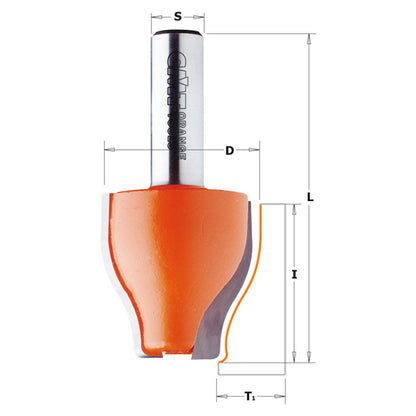

SKU	Diameter (D)	Cutting Length (I)	Total Length (L)	Shank Diameter (S)	Number of Cutting Edges (Z)	Material (MAT)	Rotation (RH-LH)
890.601.11	1-1/2"	1-1/2"	3"	1/2"	2	HW	RH
890.602.11	1-1/2"	1-1/2"	3"	1/2"	2	HW	RH
890.603.11	1-1/2"	1-1/2"	3"	1/2"	2	HW	RH

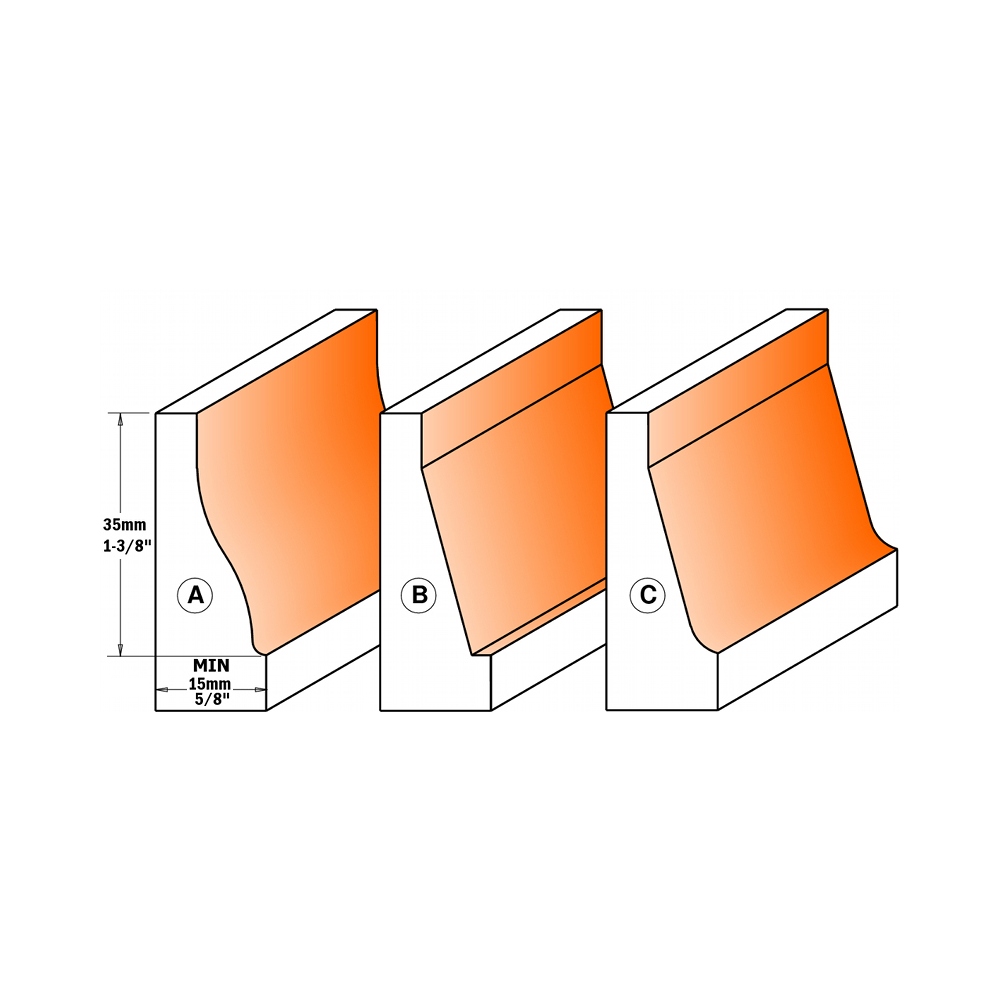

Mill raised panel doors and drawer fronts easily and economically with a CMT vertical raised panels in your router* and a sturdy 90° fence on your router table. Choose your favourite style from three of the most popular panel profiles.

*Recommended for use on routers with a minimum speed of 1,7 KW (2-1/4 HP). Routers as low-powered as 1,1 kW (1-1/2 HP) can be used, but we suggest limiting their use to shorter, shallower runs.

SAFETY TIPS: the router table fence must be at least 150mm (6") high. Clamps and featherboards should be used when ever possible. Three to five passes are best for safety and accuracy.

Fulfill

CMT Vertical Raised Panel Router Bit

SKU: SKU: CMT-890.601.11

$57.62

~~$88.65~~ $57.62

Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.

Item typically ships within 3-5 business days . (Minimum order quantity: 1)

Returns: Items may be returned within 14 days. A 25% restocking fee applies.

Full policy →

Description

SKU	Diameter (D)	Cutting Length (I)	Total Length (L)	Shank Diameter (S)	Number of Cutting Edges (Z)	Material (MAT)	Rotation (RH-LH)
890.601.11	1-1/2"	1-1/2"	3"	1/2"	2	HW	RH
890.602.11	1-1/2"	1-1/2"	3"	1/2"	2	HW	RH
890.603.11	1-1/2"	1-1/2"	3"	1/2"	2	HW	RH

*Recommended for use on routers with a minimum speed of 1,7 KW (2-1/4 HP). Routers as low-powered as 1,1 kW (1-1/2 HP) can be used, but we suggest limiting their use to shorter, shallower runs.

SAFETY TIPS: the router table fence must be at least 150mm (6") high. Clamps and featherboards should be used when ever possible. Three to five passes are best for safety and accuracy.
