1 2

Description

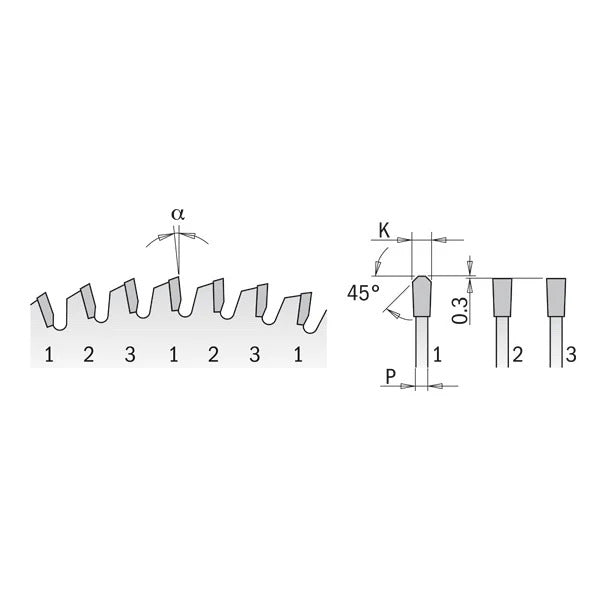

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
281.063.09M COMBI3 220mm 0.126 30mm FFT 63 0.087 -3º

TECHNICAL DETAILS OF CARBIDE TEETH:



  • Teeth height mm: 8~10
  • CHROMIUM ISO grade: KCR06
  • Hardness (HV10): 1.950
  • Transverse rupture strength: 2.300

Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.

Fulfill

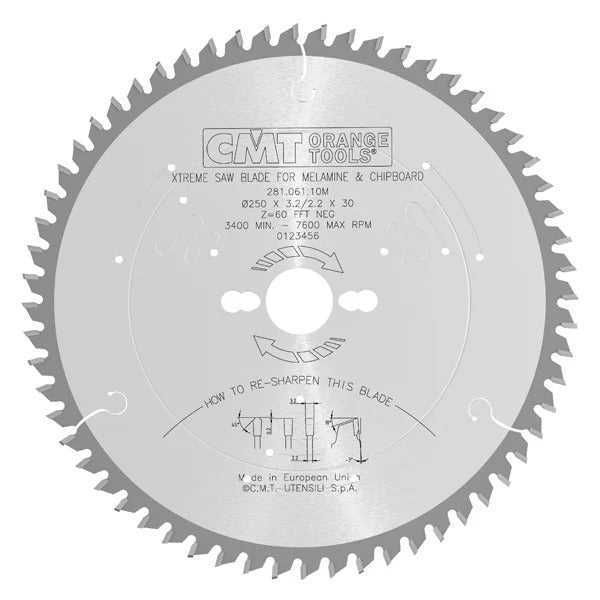

CMT Xtreme Laminated and Chipboard Circular Saw Blade

CMT Xtreme Laminated and Chipboard Circular Saw Blade

Add to wishlist Add to wishlist

SKU: CMT-281.063.09M

$86.10
$127.55 $86.10
281.063.09M
281.063.09M
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 3-5 business days . (Minimum order quantity: 1)
Documents
Resharpening Instructions

Description

SKU Pin Hole (FT) Diameter (D) Kerf Thickness (K) Bore Diameter (B) Type of Grind (β) Number of Cutting Edges (Z) Plate Thickness (P) Hook Angle (α)
281.063.09M COMBI3 220mm 0.126 30mm FFT 63 0.087 -3º

TECHNICAL DETAILS OF CARBIDE TEETH:



  • Teeth height mm: 8~10
  • CHROMIUM ISO grade: KCR06
  • Hardness (HV10): 1.950
  • Transverse rupture strength: 2.300

Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.

View full details
